Outer Mirror Assembly
REMOVAL 1.
Remove the door trim.
2.

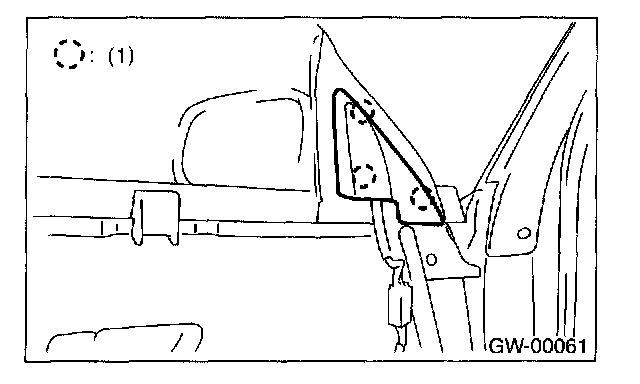

Remove the mirror gusset cover.
3.
Disconnect the mirror connector.
4.
Remove the grommet, and then loosen the screws to remove mirror assembly.
INSTALLATIONInstall in the reverse order of removal.
