Tailgate Latch: Service and Repair

Rear Gate Latch Assembly

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the rear gate trim.

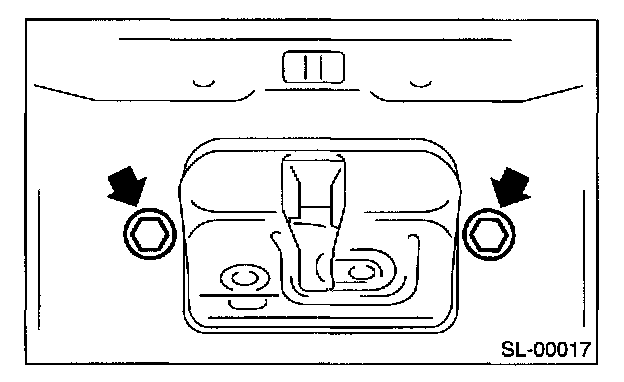

3. Remove two bolts.
4. Remove the rear gate latch assembly, and then disconnect the connector.
5. Remove the rear gate outer handle cable, and then remove the rear gate latch assembly.

INSTALLATION

Install in the reverse order of removal.

NOTE: Make sure the lock works properly after installation.
