Heater System

Heater System

GENERAL




- The HVAC system uses an integral air conditioning unit with thin-wall, high-performance heater core at the front and evaporator core at the rear. Being compact in size, this unit enables providing sufficient front passenger's legroom while ensuring a high air-distribution efficiency by minimizing air flow resistance in all air passages. Overall, the system can create comfortable interior air conditions quietly and in all seasons by its excellent heating, cooling, ventilating, and defrosting performances.
- There are three ventilation grilles in the dashboard.
- To ensure adequate ventilation, large-size air outlets are provided behind the side portions of the rear bumper where high-level vacuums are generated during driving.

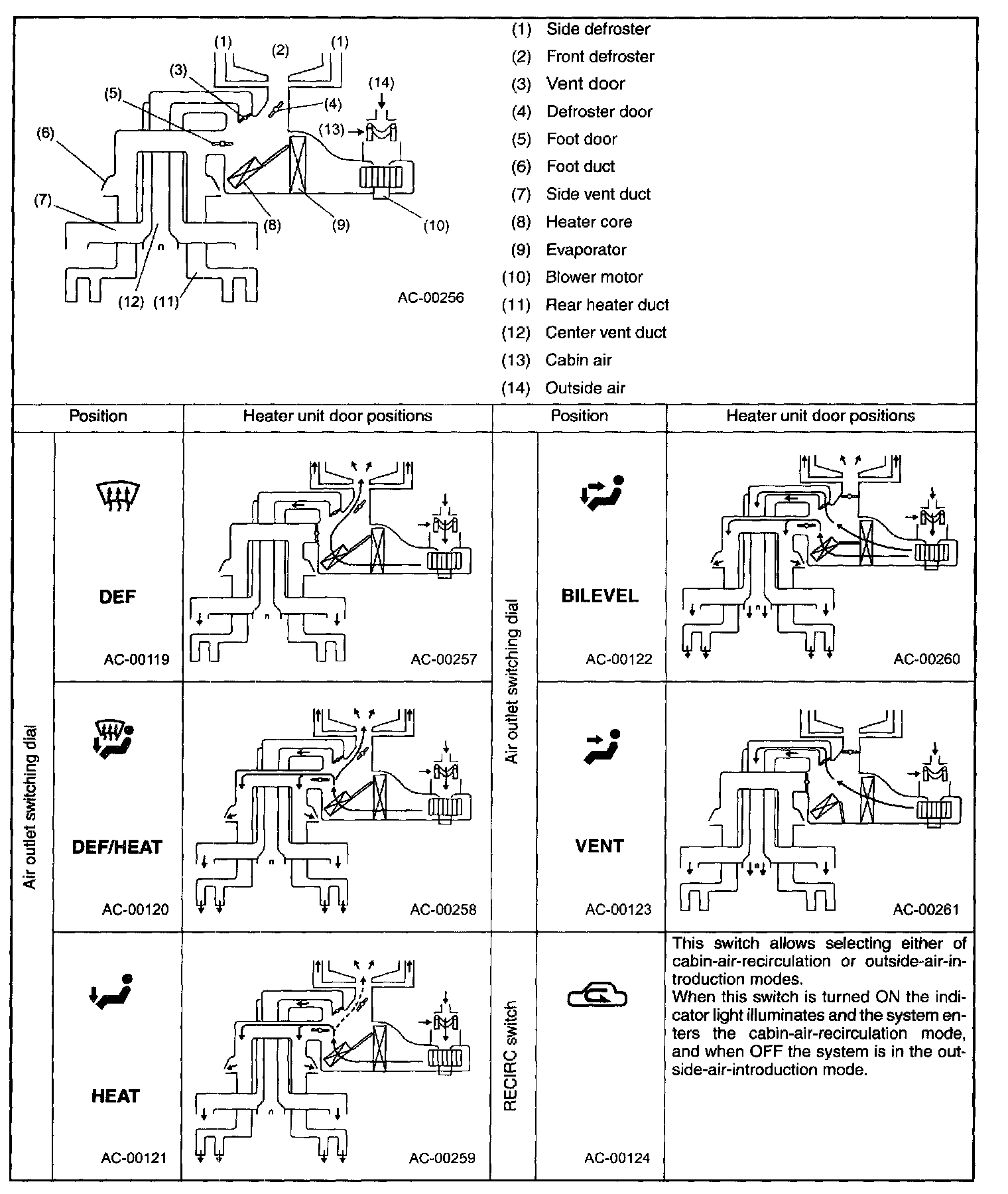

Air Flow Modes:

AIR FLOW MODES
