Lighting and Horns: Description and Operation

DESCRIPTION

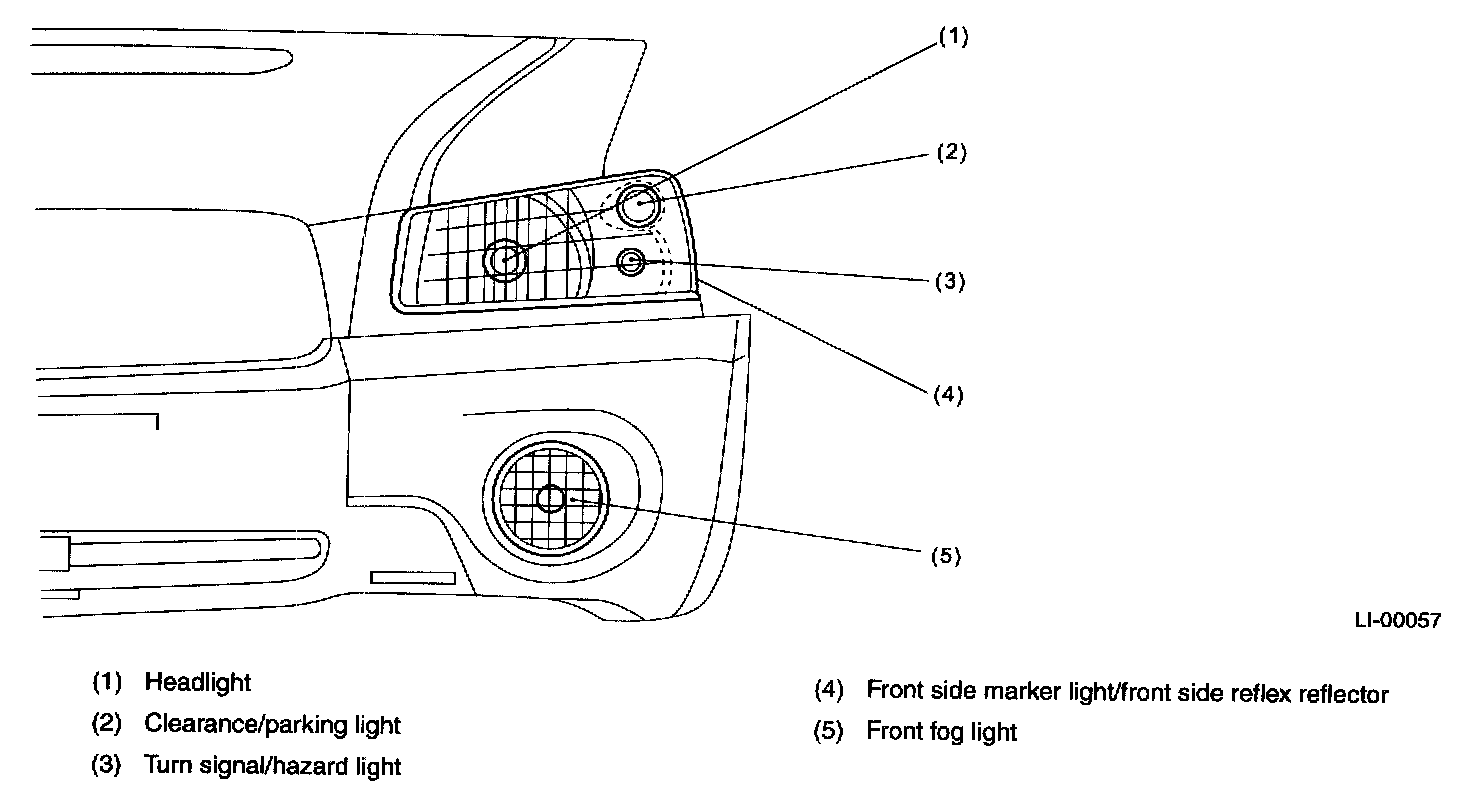

Front




- The headlight has two halogen bulbs and a multiple aspect reflector. The reflector controls the distribution of the light and no lens cutting is done on the shield for all models.
- The front turn signal/hazard warning light, clearance/parking light, and the front side marker light/front side reflex reflector are incorporated into the headlight.
- The fog light is large sized with a multiple aspect reflector.
- A keyless answerback feature is added to the hazard lights. When the keyless entry system is operated, the hazard lights will flash.

Rear




- The rear turn signal/hazard light, stop/tail/parking light, and the backup light are incorporated into the rear combination light. The side marker light and rear reflex reflector are also incorporated into the rear combination light.
- The high mount stop light is located at the top inside of the rear gate.
