Monitors, Trips, Drive Cycles and Readiness Codes

DRIVE CYCLE

OPERATION

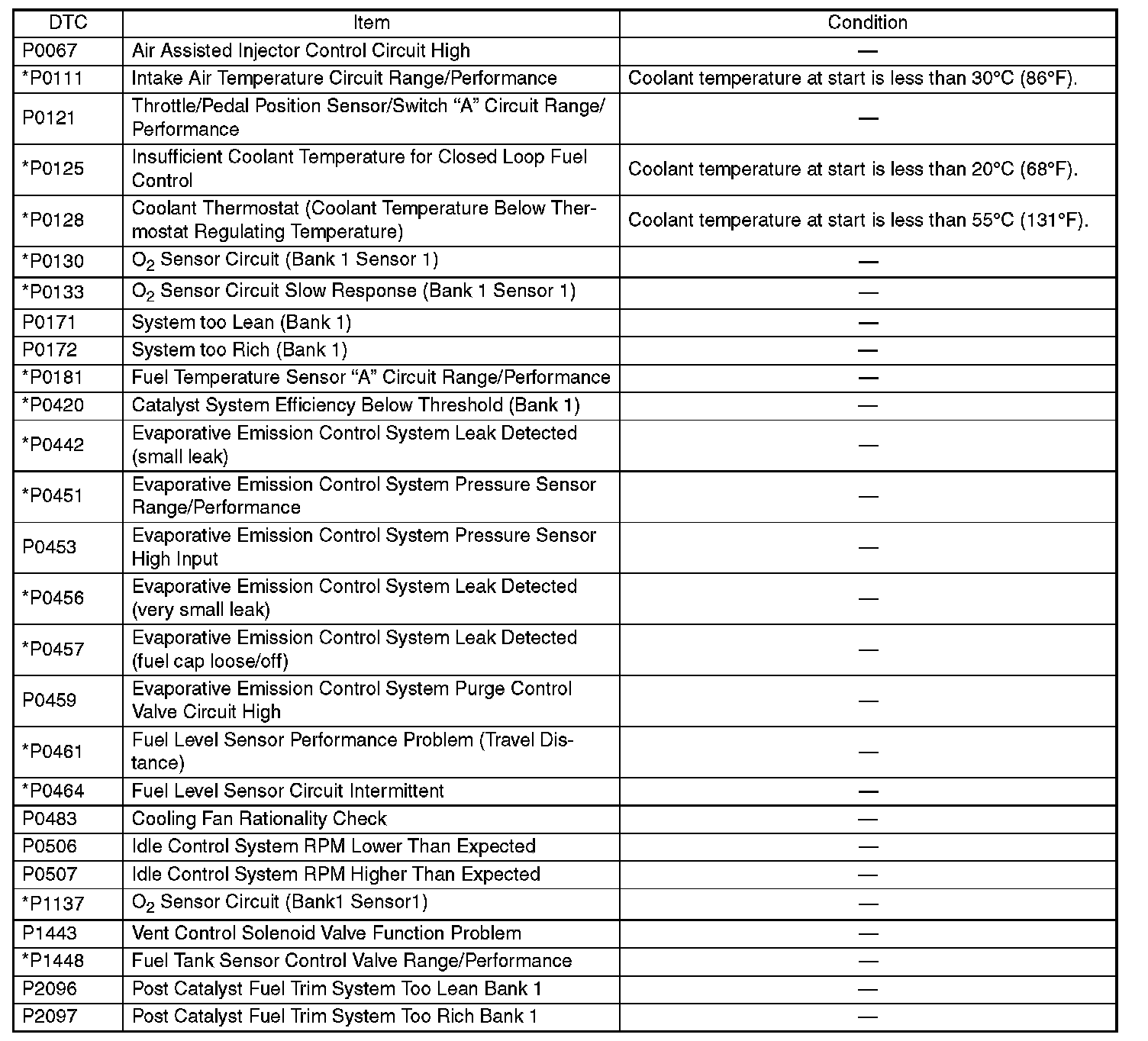

There are three drive patterns for the trouble diagnosis. Driving in the specified pattern allows to diagnose malfunctioning items listed below. After the malfunctioning items listed below are repaired, always check whether they correctly resume their functions by driving in the required drive pattern.

1. PREPARATION FOR DRIVE CYCLE
1. Make sure that the fuel remains approx. half amount [20 - 40 Ohm (5.3 - 10.6 US gal, 4.4 - 8.8 Imp gal)], and battery voltage is 12 V or more.
2. After performing the diagnostics and cleaning memory, check for any remaining unresolved trouble data.
3. Separate the test mode connector.

NOTE:
- Except for the water temperature specified items at starting, the diagnosis is carried out after engine warm up.
- Carry out the diagnosis which is marked "*" on DTC twice, then, after finishing first diagnosis, stop the engine and do second time at the same condition.




2. AFTER RUNNING 20 MINUTES AT 80 KM/H (50 MPH), IDLE ENGINE FOR 1 MINUTE.




3. IDLE FOR 10 MINUTES

NOTE: Before the diagnosis, drive the vehicle at 10 km/h (6 MPH) or more.

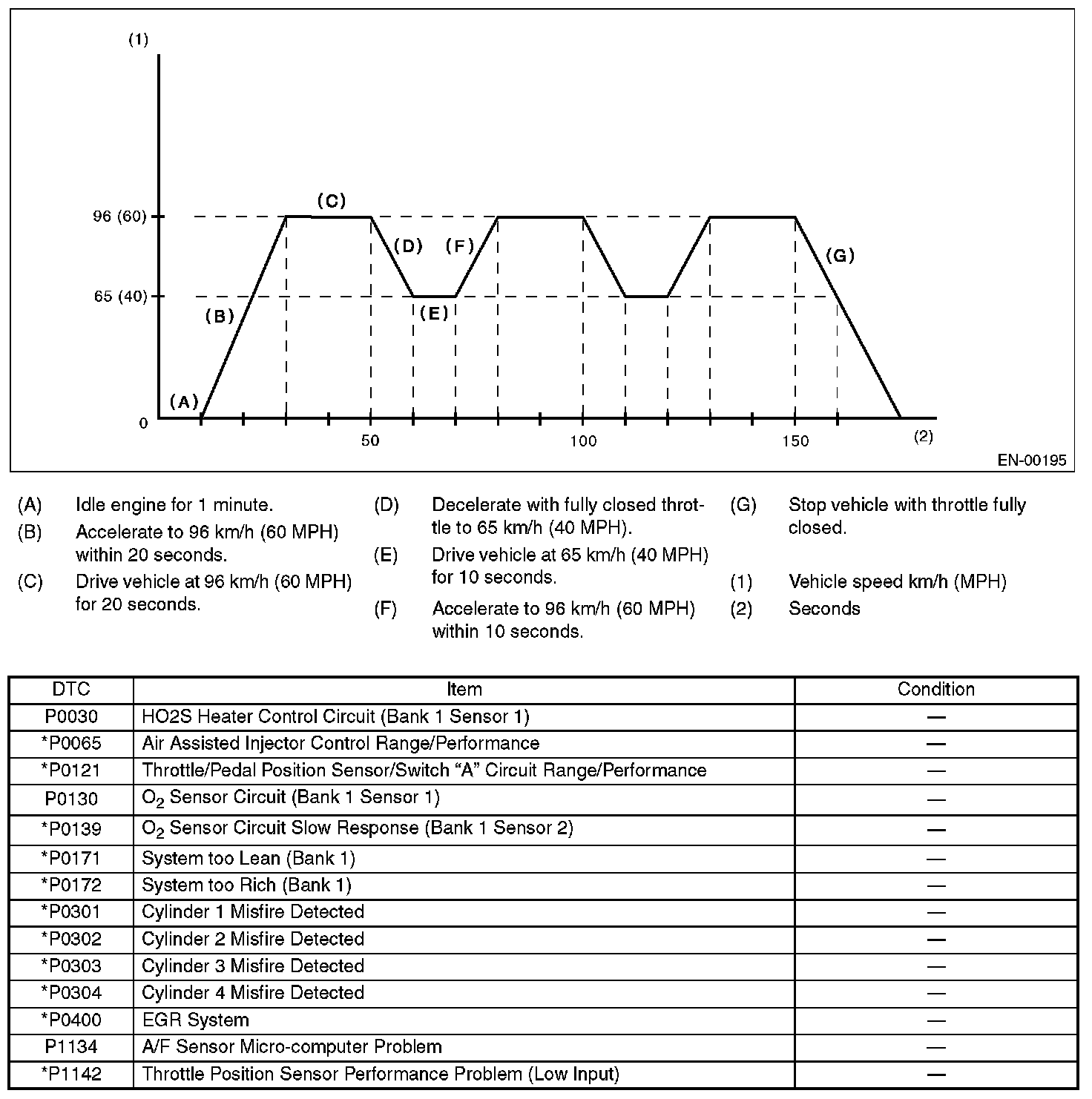

4. DRIVE ACCORDING TO THE FOLLOWING DRIVE PATTERN
