Check Inhibitor Switch

CHECK INHIBITOR SWITCH

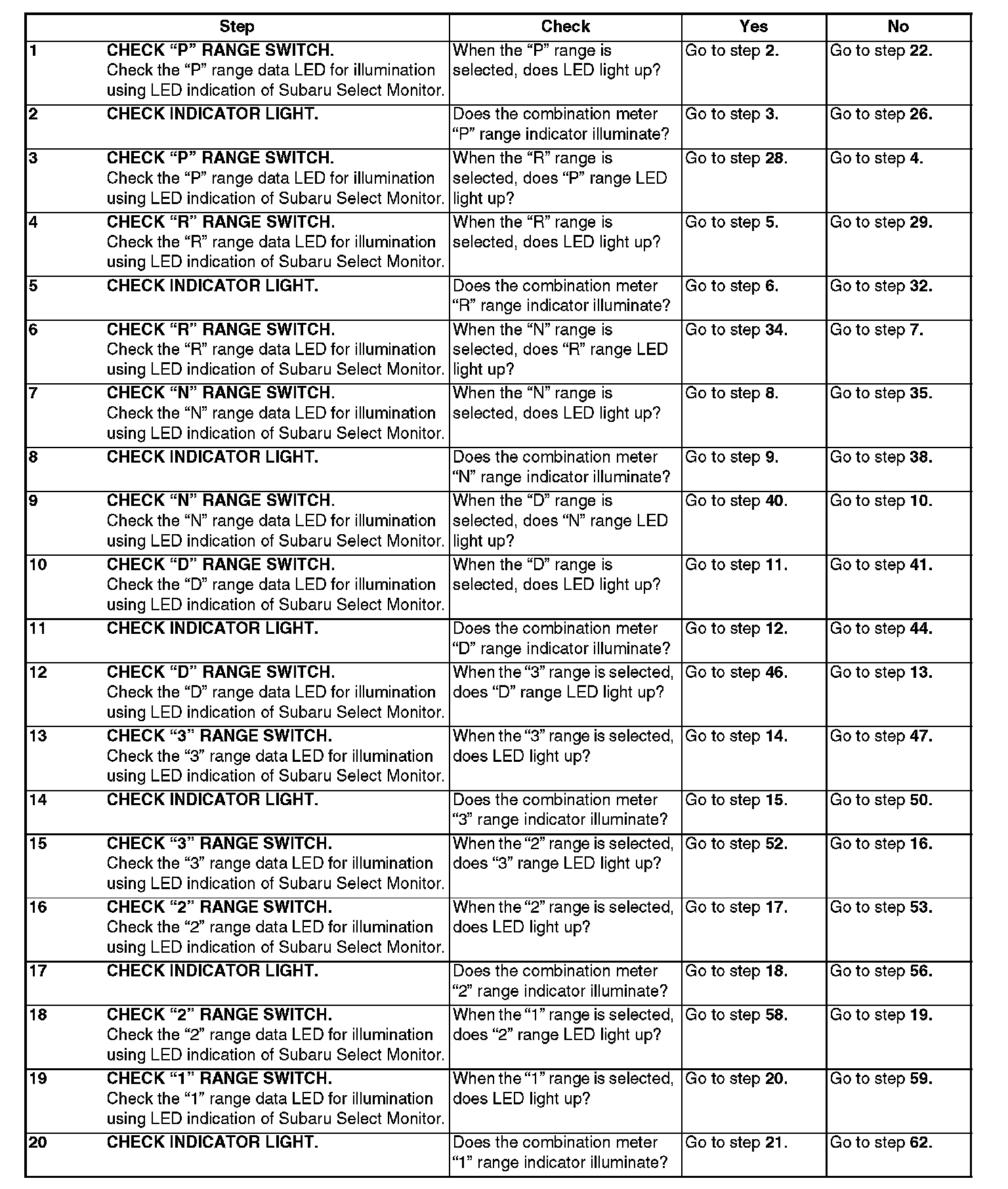

Steps 1-20:

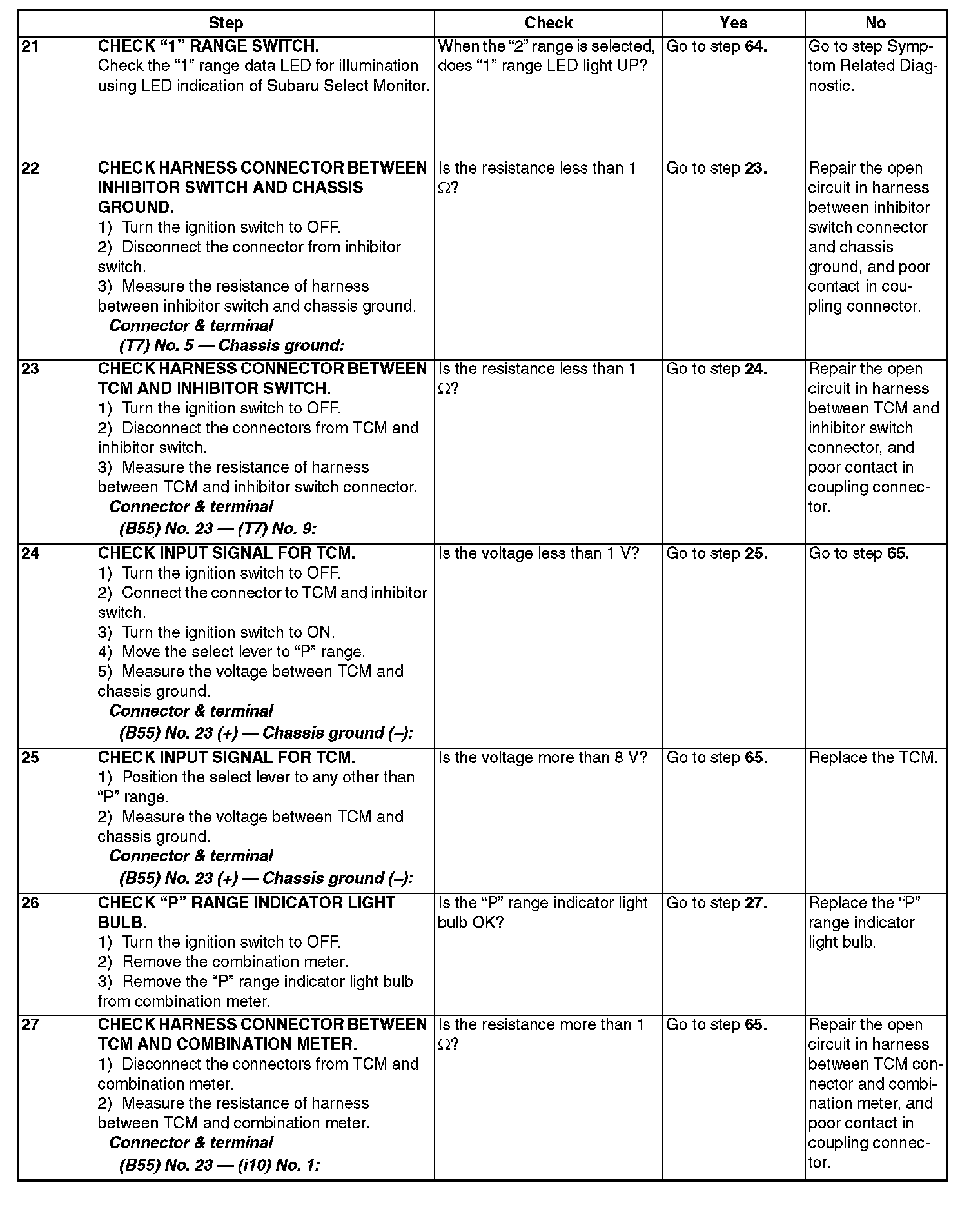

Steps 21-27:

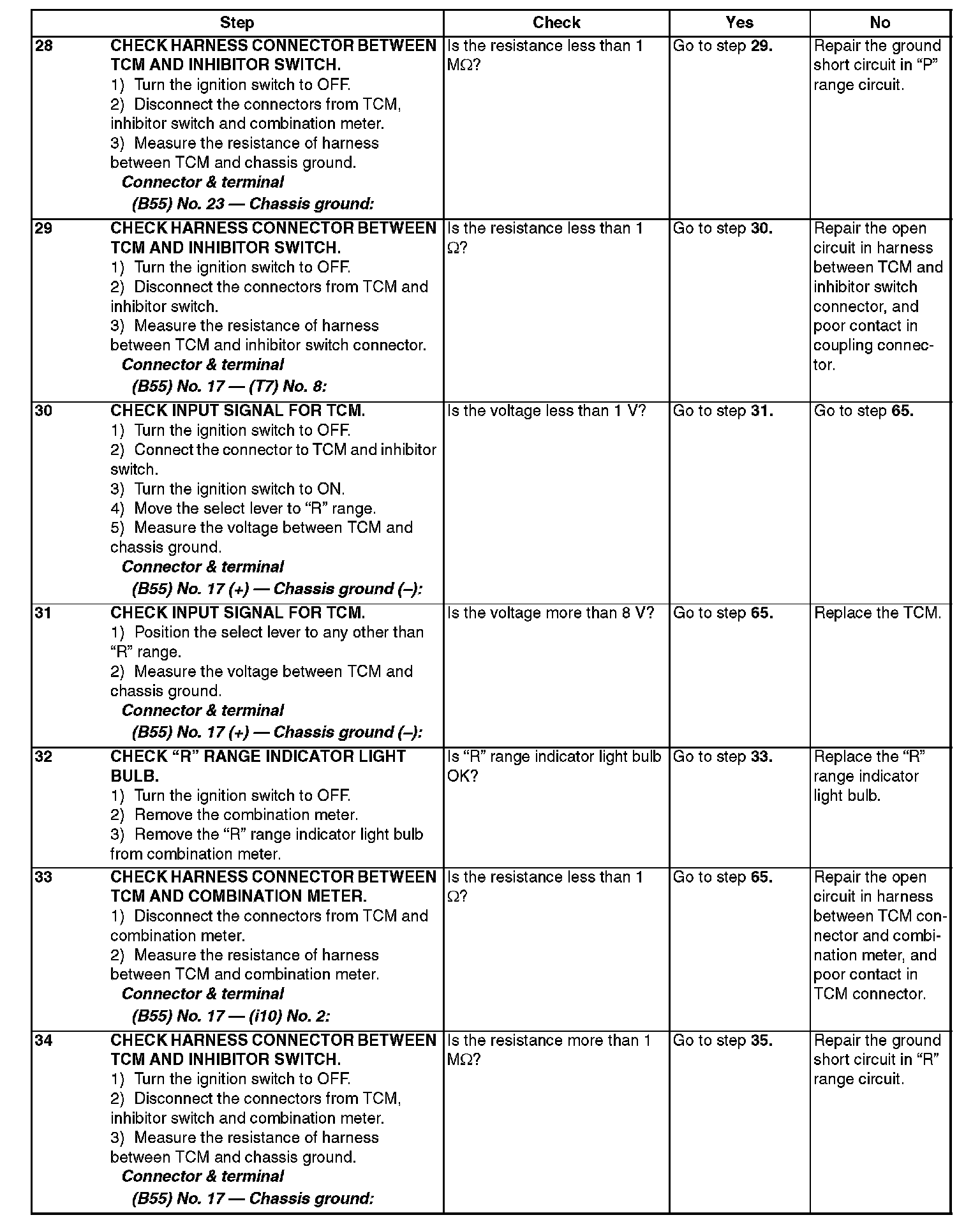

Steps 28-34:

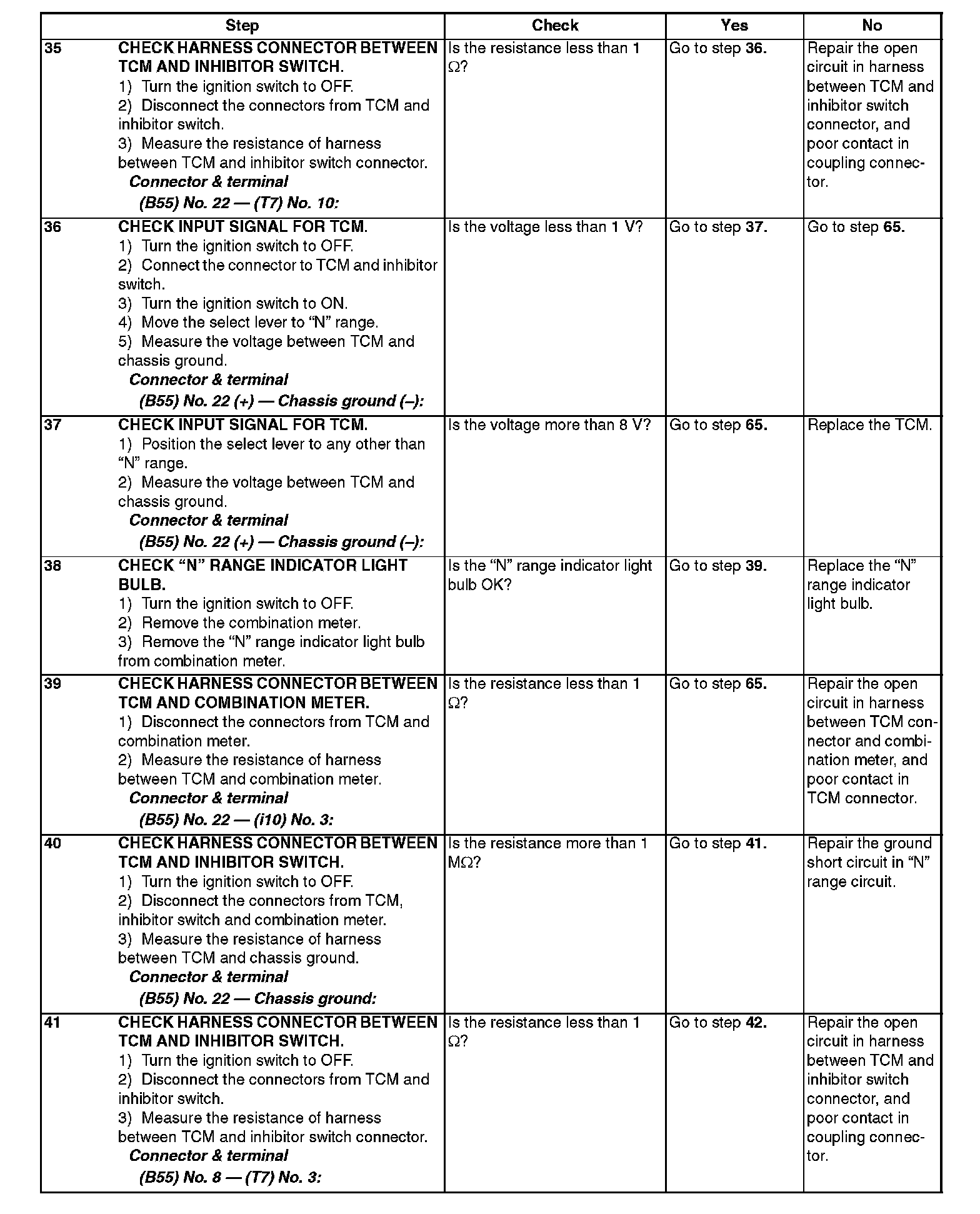

Steps 35-41:

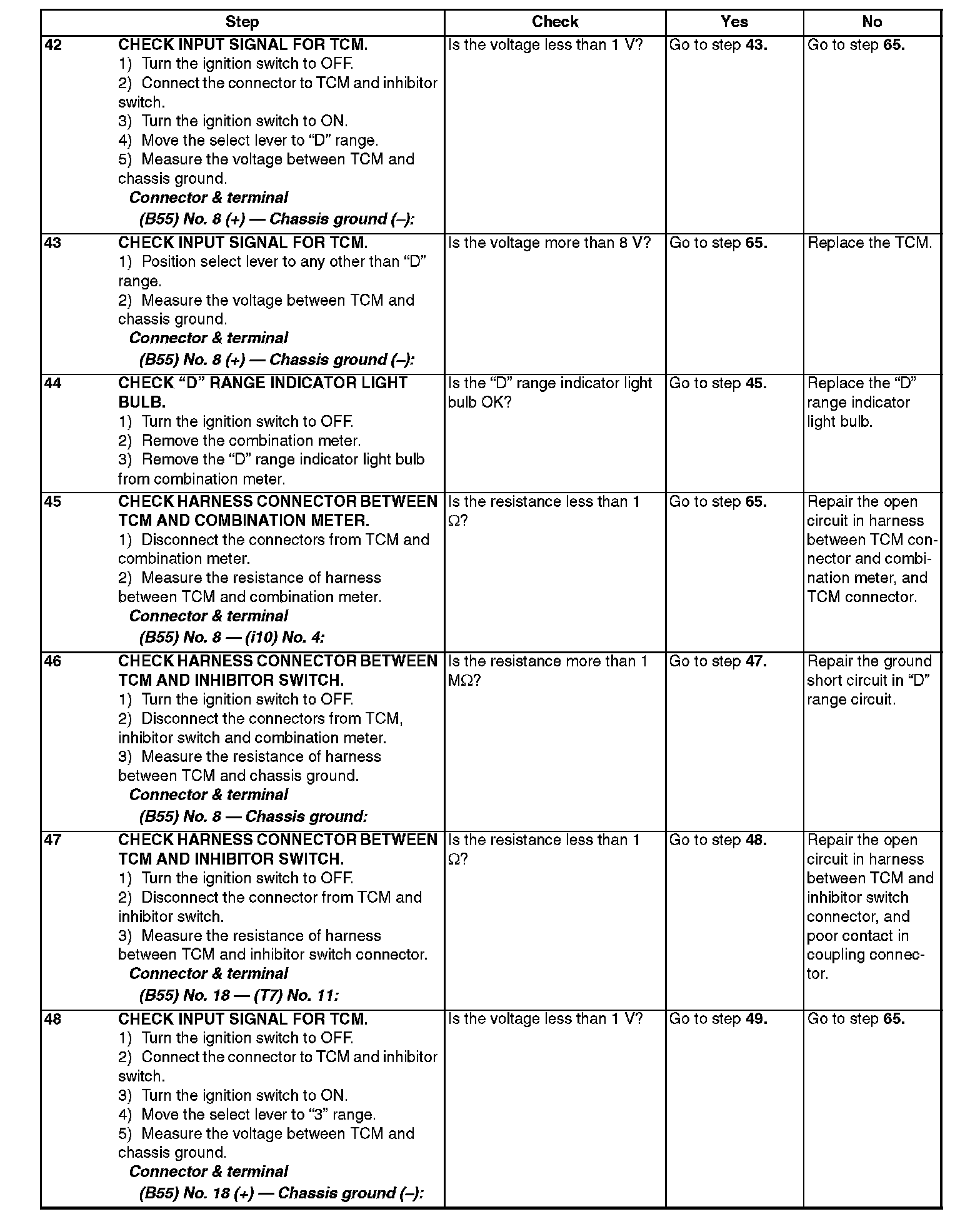

Steps 42-48:

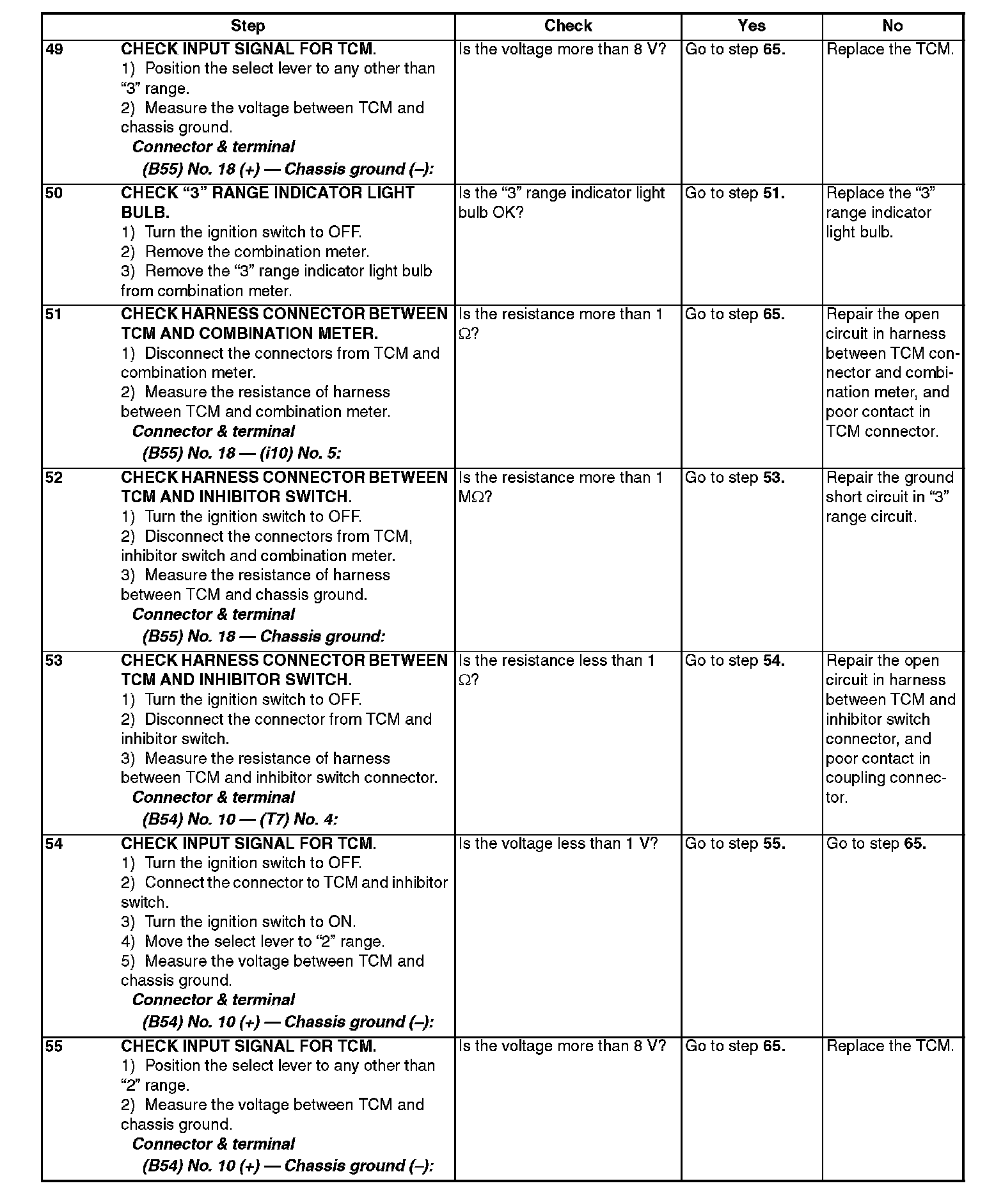

Steps 49-55:

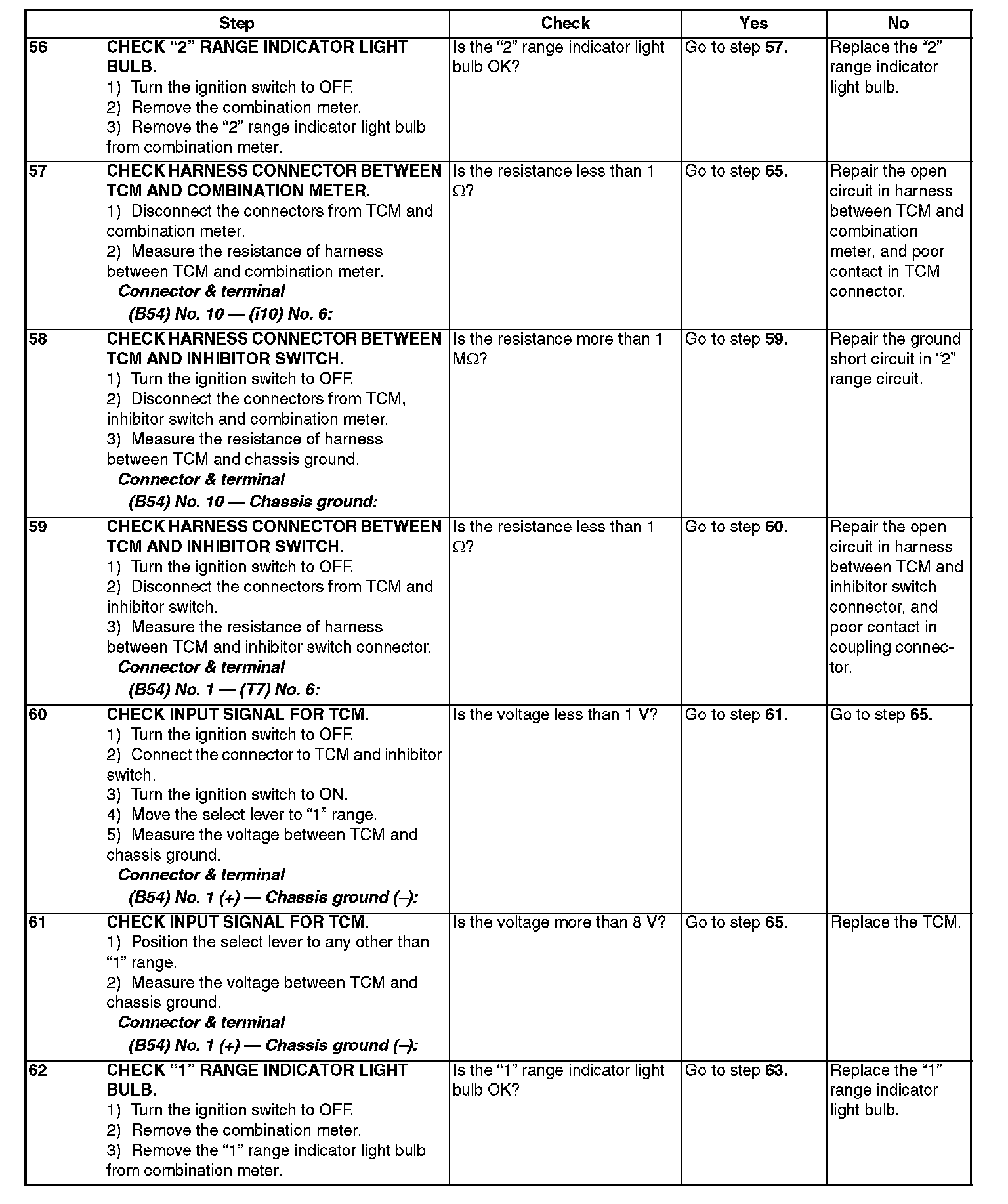

Steps 56-62:

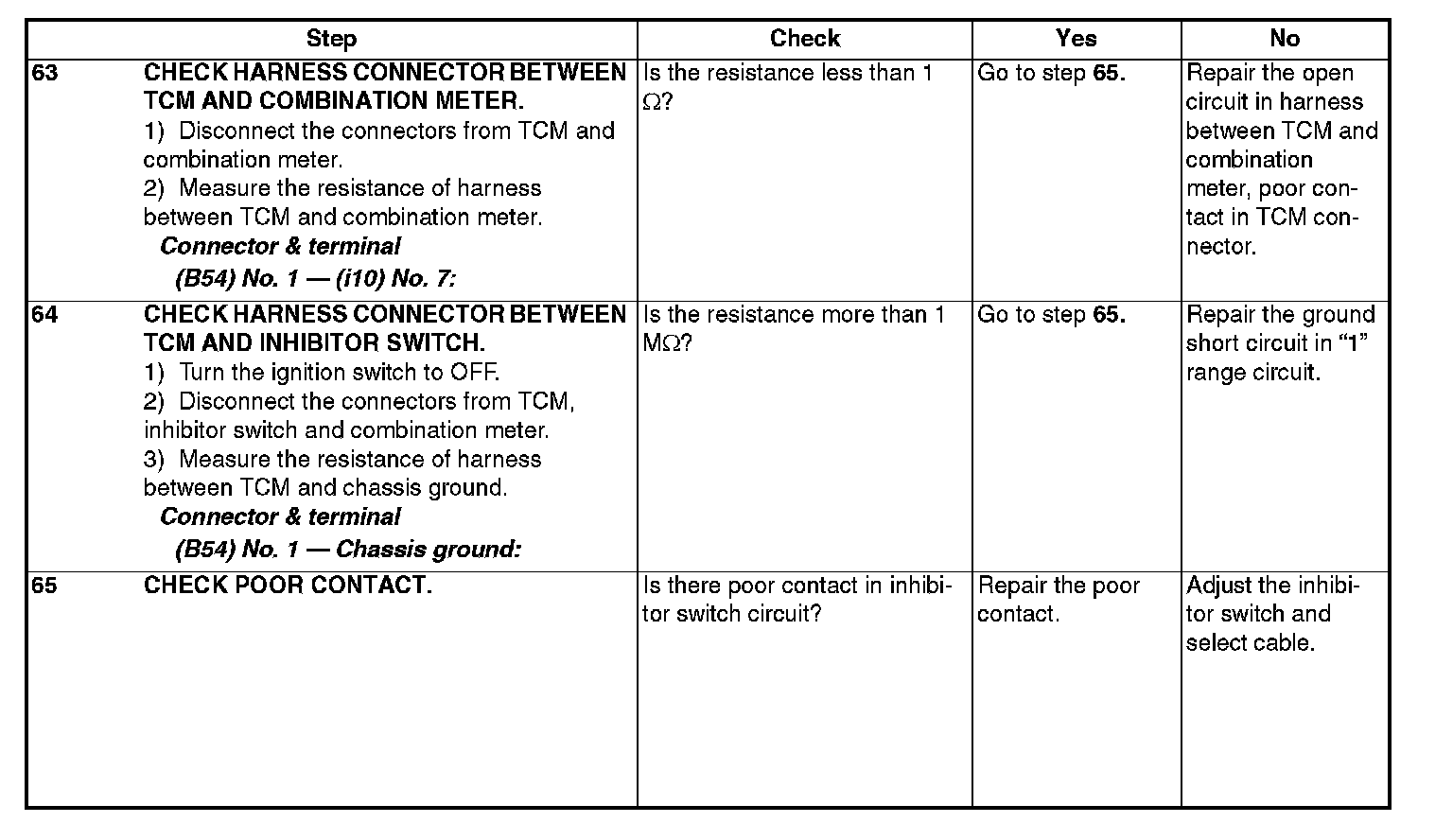

Steps 63-65:

DIAGNOSIS:
The input signal circuit of inhibitor switch is open or shorted.

TROUBLE SYMPTOM:
^ Shift characteristics are erroneous.
^ Engine brake is not effected when selector lever is in "3" range.
^ Engine brake is not effected when selector lever is in "2" range.
^ Engine brake is not effected when selector lever is in "1" range.

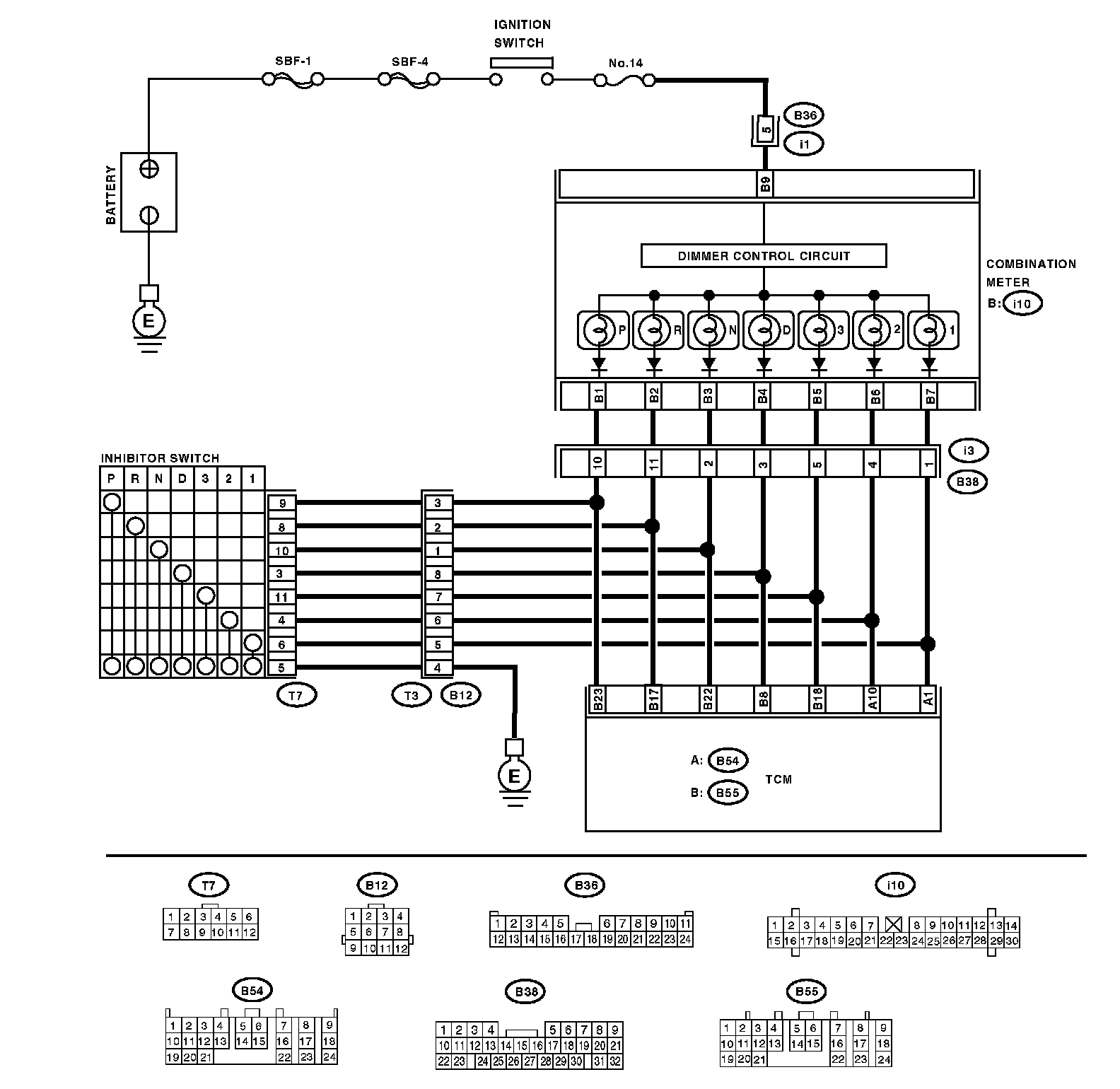

WIRING DIAGRAM
