Rear Vehicle Speed Sensor

Rear Vehicle Speed Sensor

A:Removal

1. NON-TURBO MODEL - Refer to "Front Vehicle Speed Sensor"

2. TURBO MODEL

1) Set the vehicle on a lift.

2) Disconnect the ground cable from battery.

3) Lift-up the vehicle.

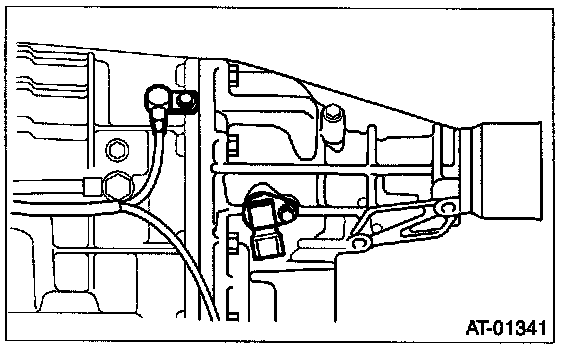

4) Disconnect the rear vehicle speed sensor connector.

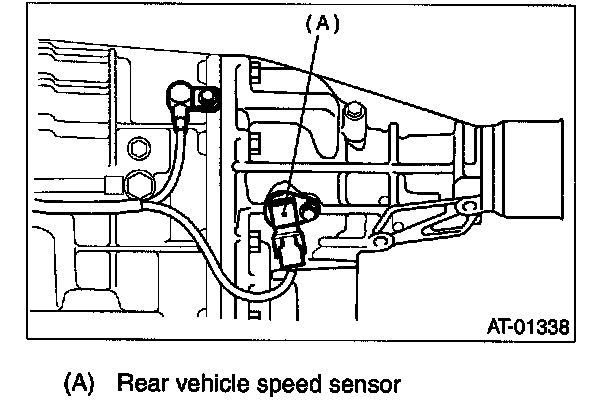

5) Remove the rear vehicle speed sensor.

B:INSTALLATION

1. NON-TURBO MODEL - Refer to "Front Vehicle Speed Sensor"

2. TURBO MODEL

Install in the reverse order of removal.

NOTE:

Replace the 0-ring with a new one.

Tightening torque:
7 N.m (0.7 kgf-m, 5.1 ft-lb)
