Rear Door Window Regulator: Service and Repair
REMOVAL 1.
Remove the door glass.
2.
Remove the front sash.
3.
Disconnect the motor connector.
4.

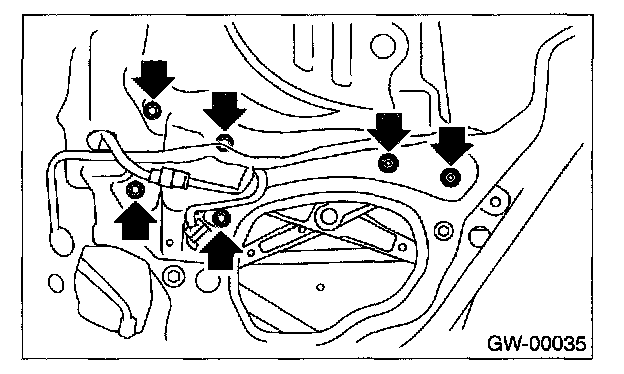

Loosen the four bolts and two nuts to remove regulator assembly.
5.

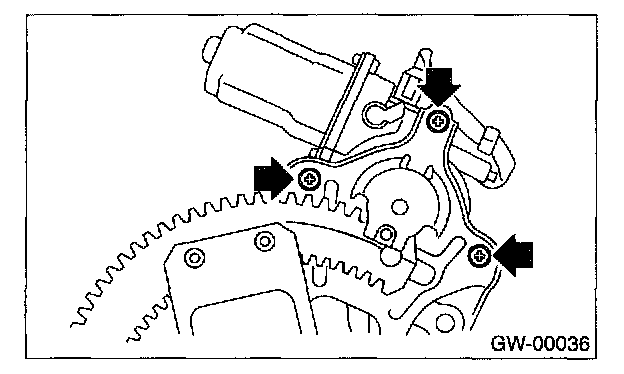

Loosen the screws to remove motor assembly.
INSTALLATION 1.
Install in the reverse order of removal.
2.
Adjust the rear door glass.
