Cruise Control Main Switch
Cruise Control Main SwitchREMOVAL 1.
Disconnect the ground terminal from battery.
2.

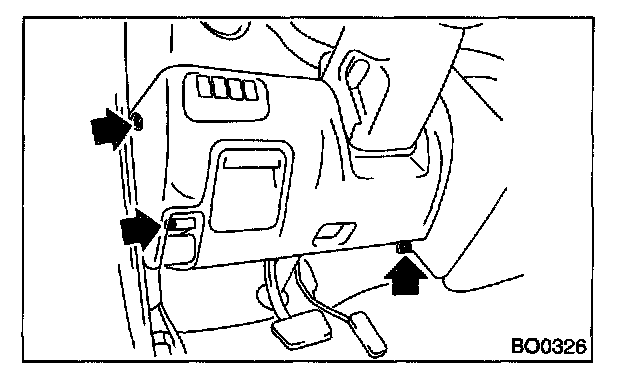

Remove the screws and clip from the instrument panel lower cover.
3.
Remove the instrument panel lower cover.
4.

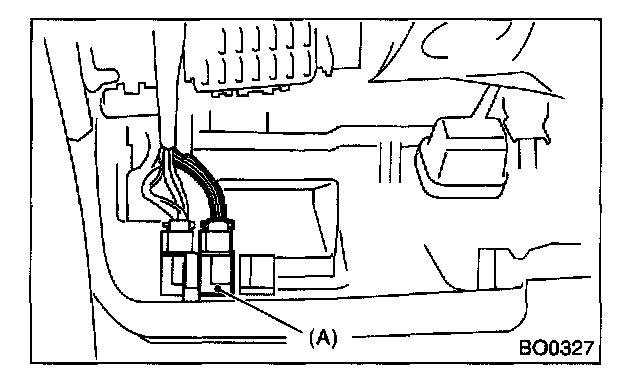

Disconnect the connector from the cruise control main switch(A).
5.

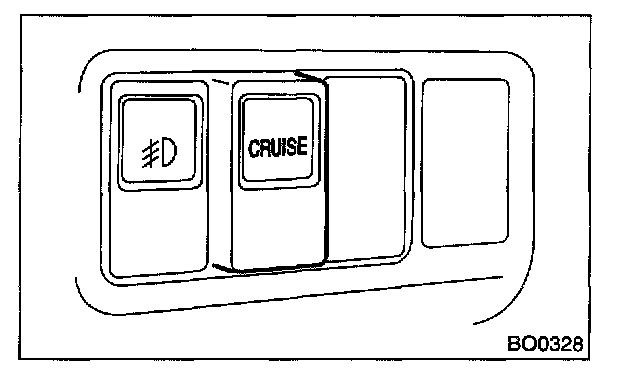

Remove the main switch by pushing it outward.
INSTALLATION Install is in the reverse order of removal.
