Compressor HVAC: Testing and Inspection
CompressorINSPECTION
MAGNETIC CLUTCH CLEARANCE
1. Check the clearance of the entire circumference around the drive plate and pulley.
Standard: 0.45 ± 0.15 mm (0.0177 ± 0.0059 in)

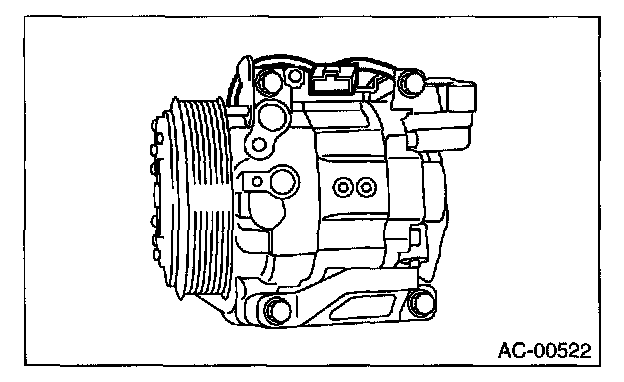

MAGNETIC CLUTCH OPERATION
1. Disconnect the compressor connector.
2. Connect the battery positive terminal to the No.3 terminal of the compressor connector. Ground the negative terminal to the body.
3. Make sure the magnet clutch engages.
If NG, replace the compressor.
