Heater Core: Service and Repair

Heater Core

Heater Core Case

REMOVAL
1. Remove the heater and cooling unit.

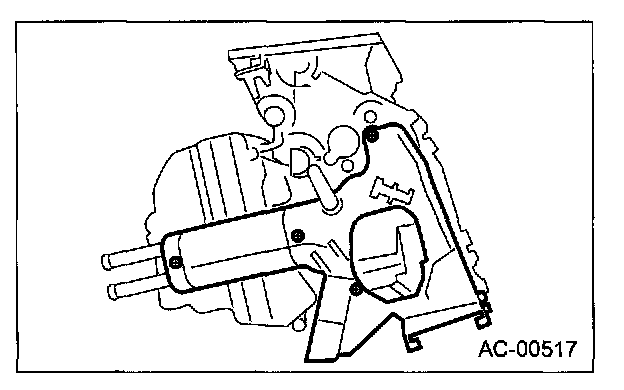

2. Loosen the screws to remove heater core cover.

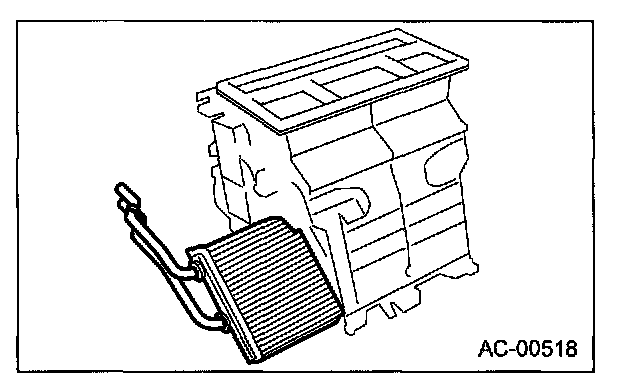

3. Remove the heater core.

INSTALLATION
Install in the reverse order of removal.
