Fuel Filter: Service and Repair
REMOVALWARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor. 1.
Release the
fuel pressure.
2.

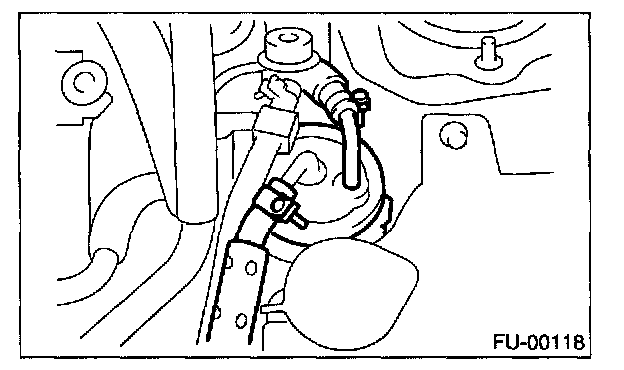

Disconnect the fuel delivery hoses from the
fuel filter.
3.

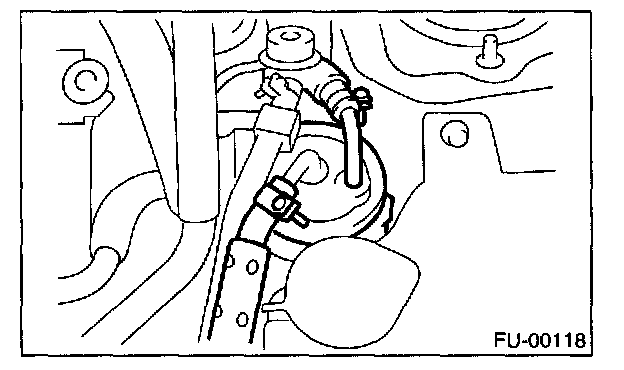

Remove the filter from the holder.
INSTALLATION 1.
Install in the reverse order of removal.
2.
Tighten the hose clamp screws.
Tightening torque:
1.25 N.m (0.13 kgf-m, 0.94 ft-lb)
