Check Inhibitor Switch

CHECK INHIBITOR SWITCH

Steps 1-21:

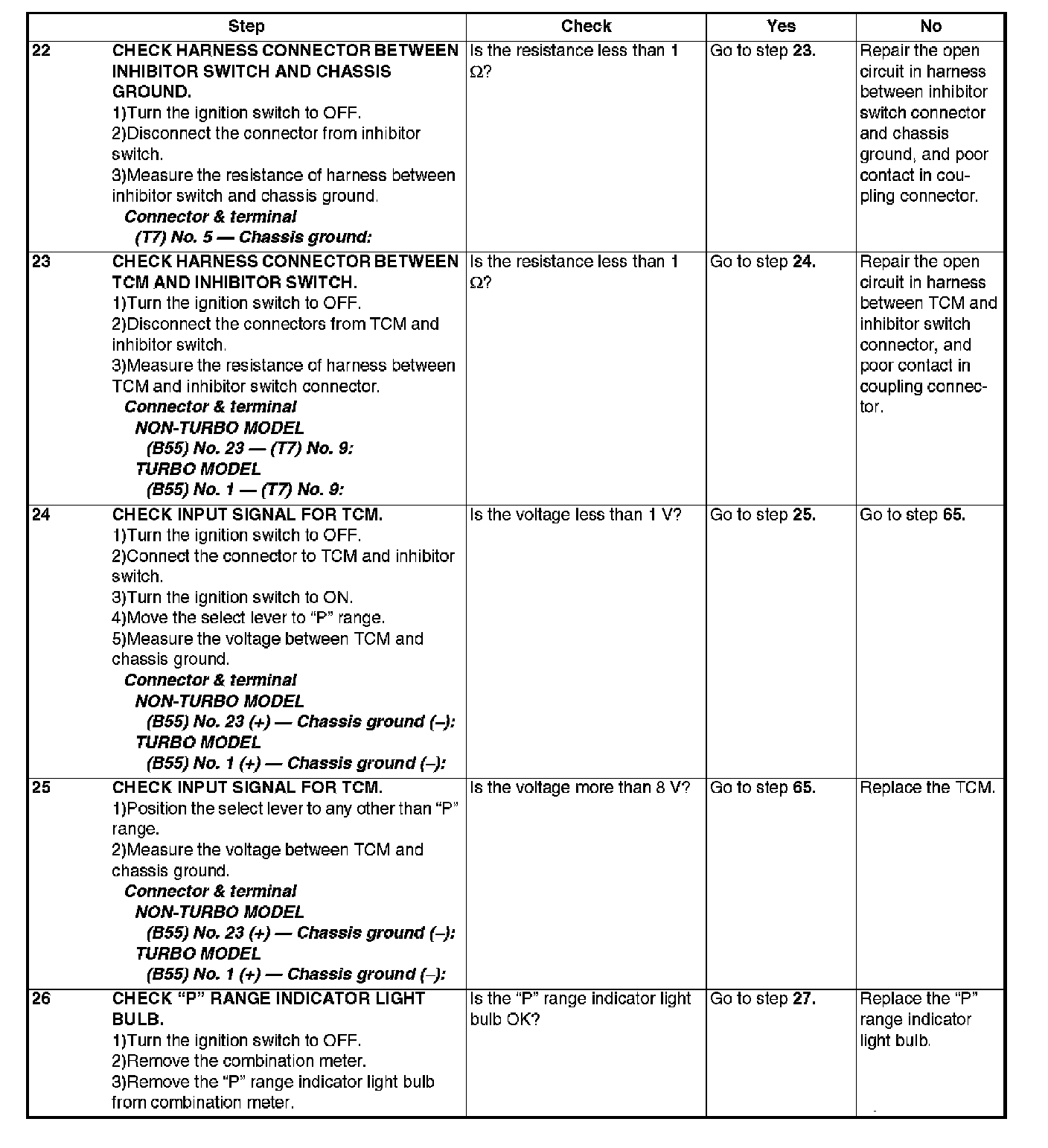

Steps 22-26:

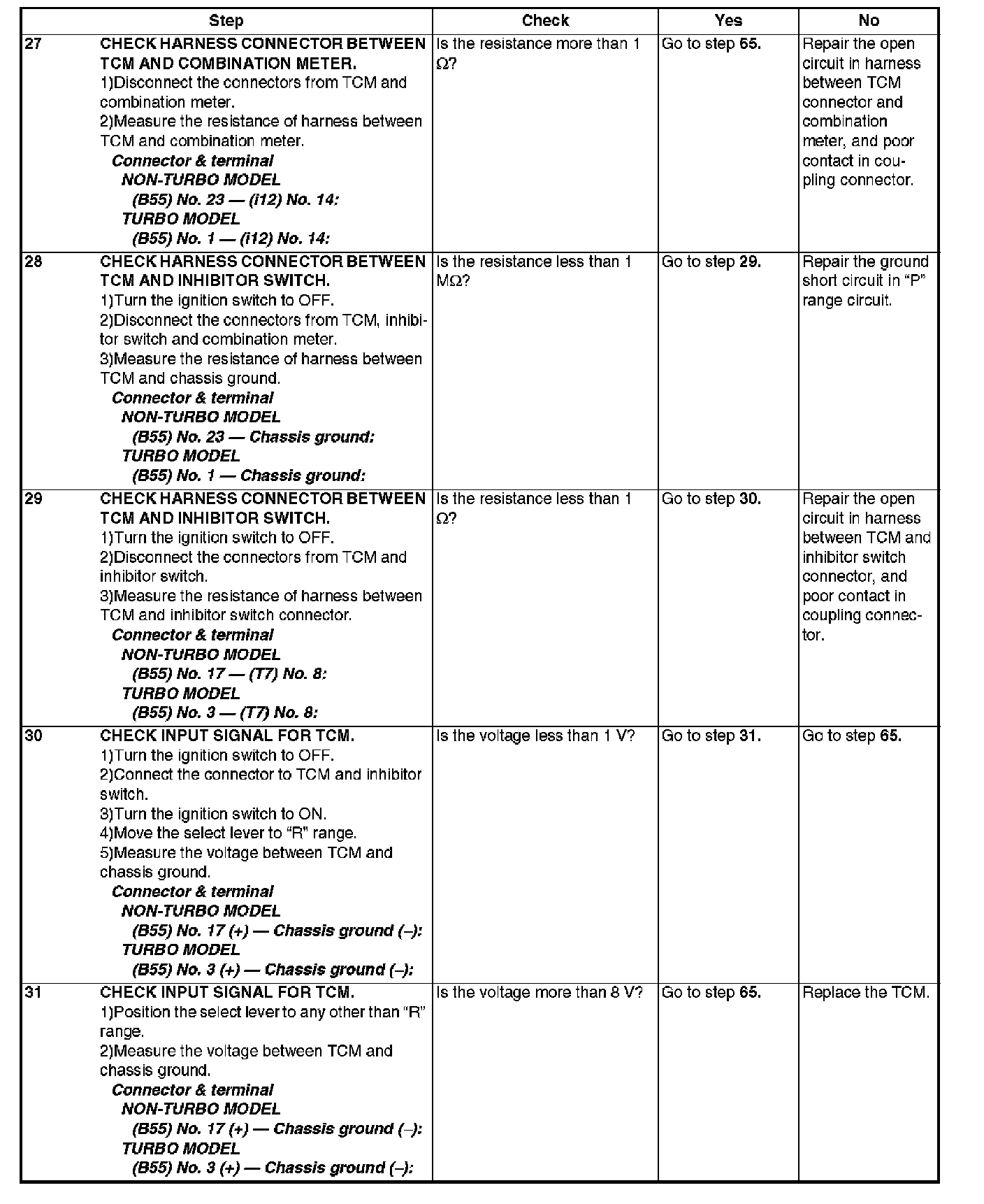

Steps 27-31:

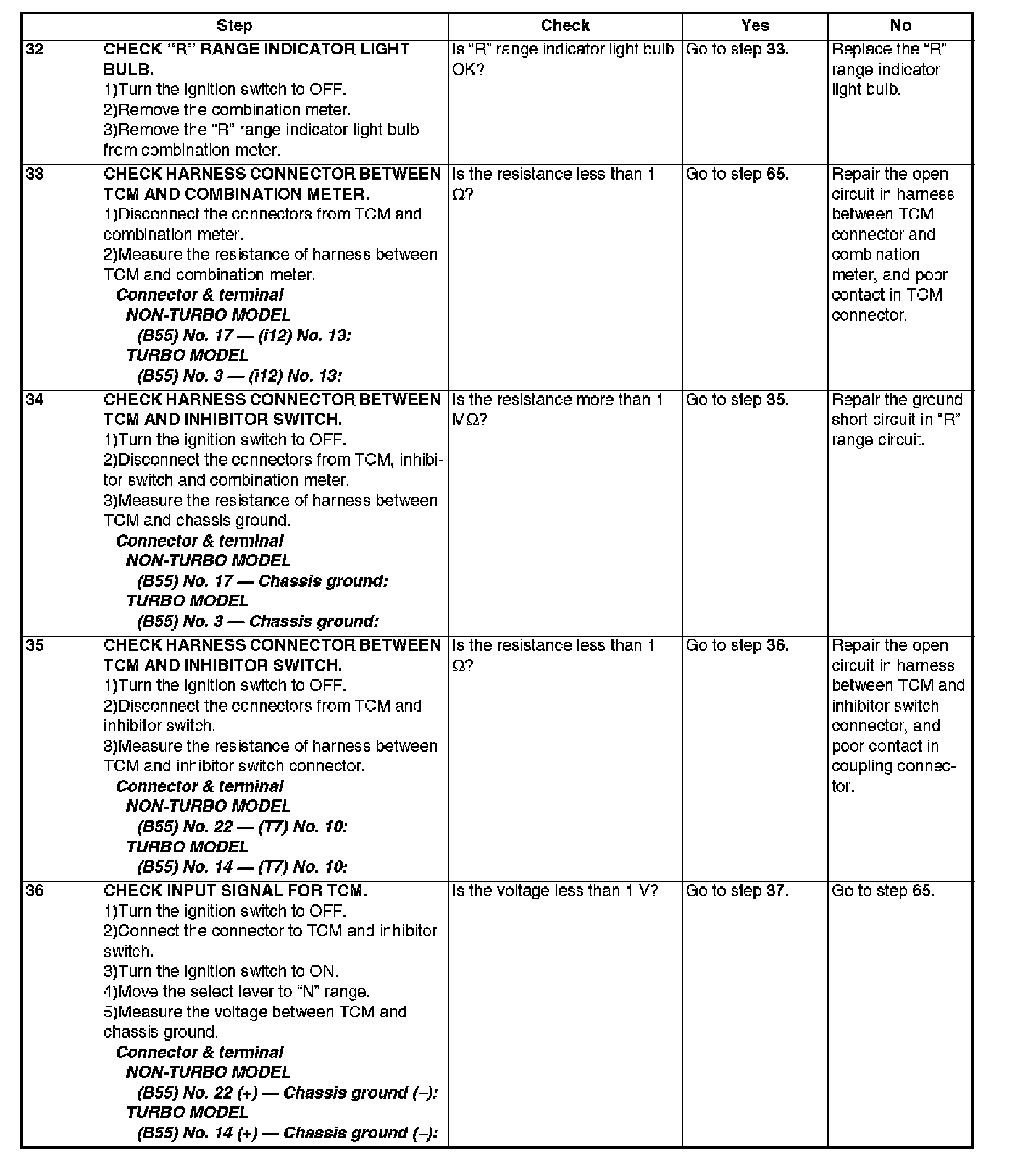

Steps 32-36:

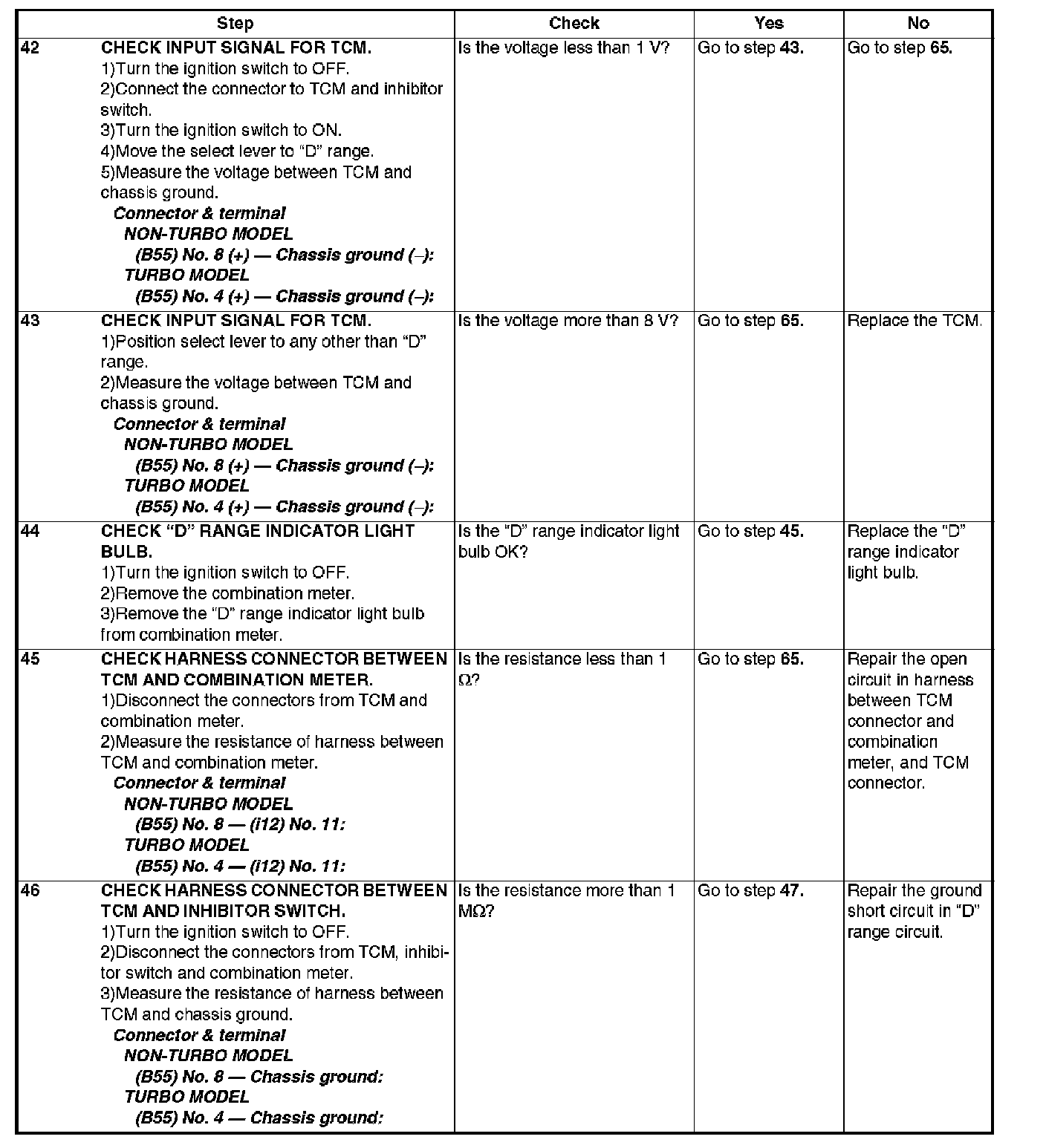

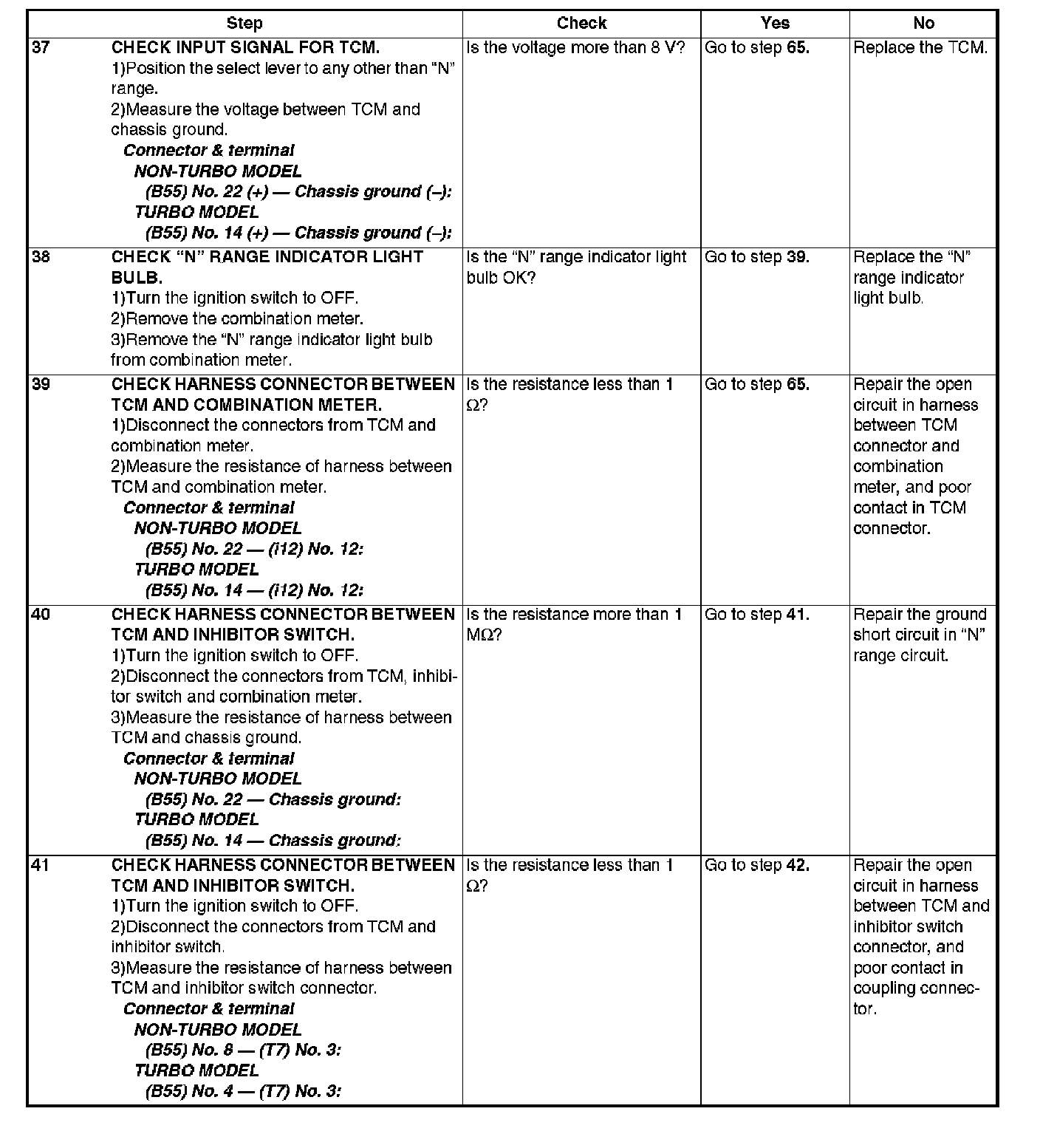

Steps 37-41:

Steps 42-46:

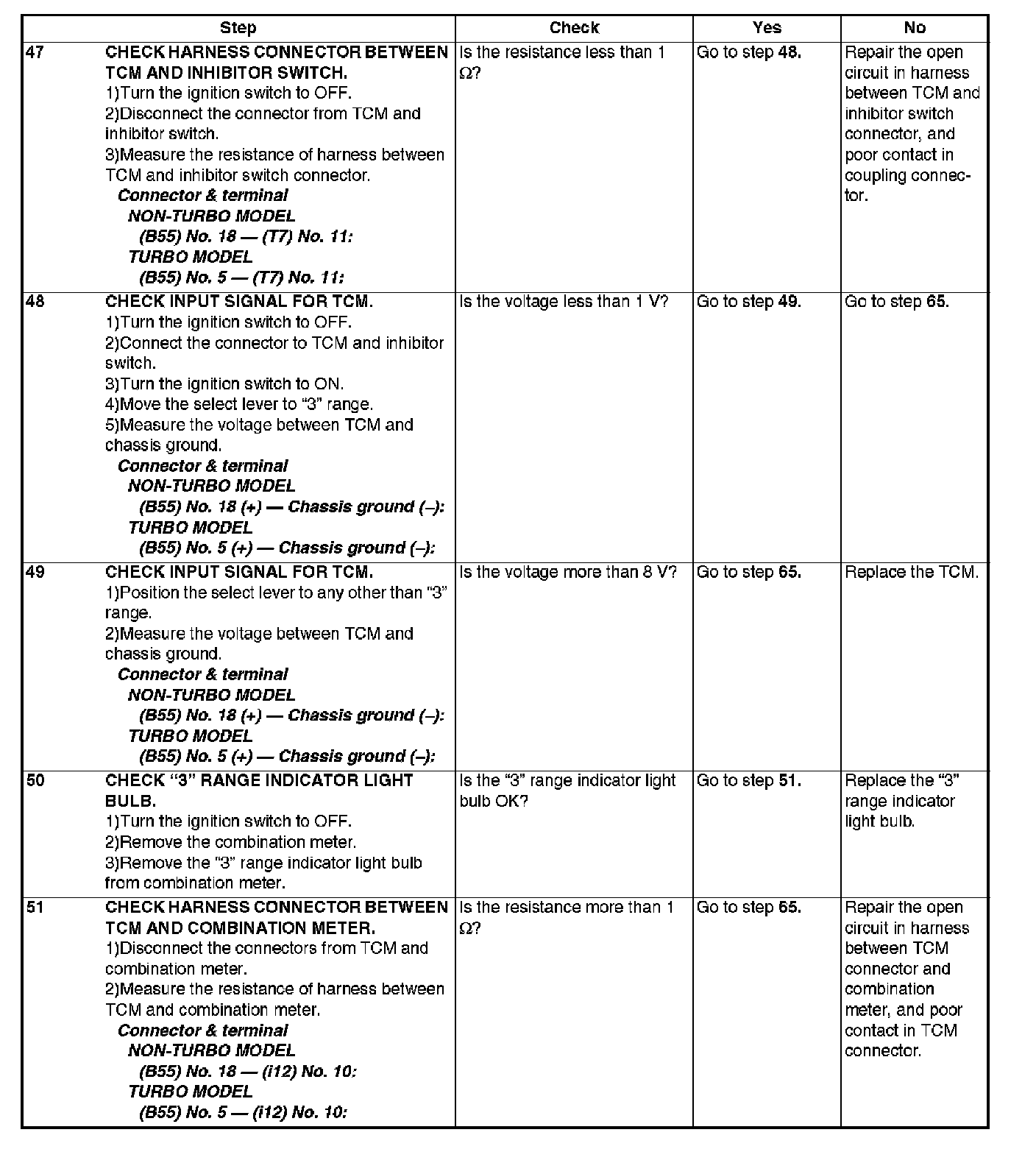

Steps 47-51:

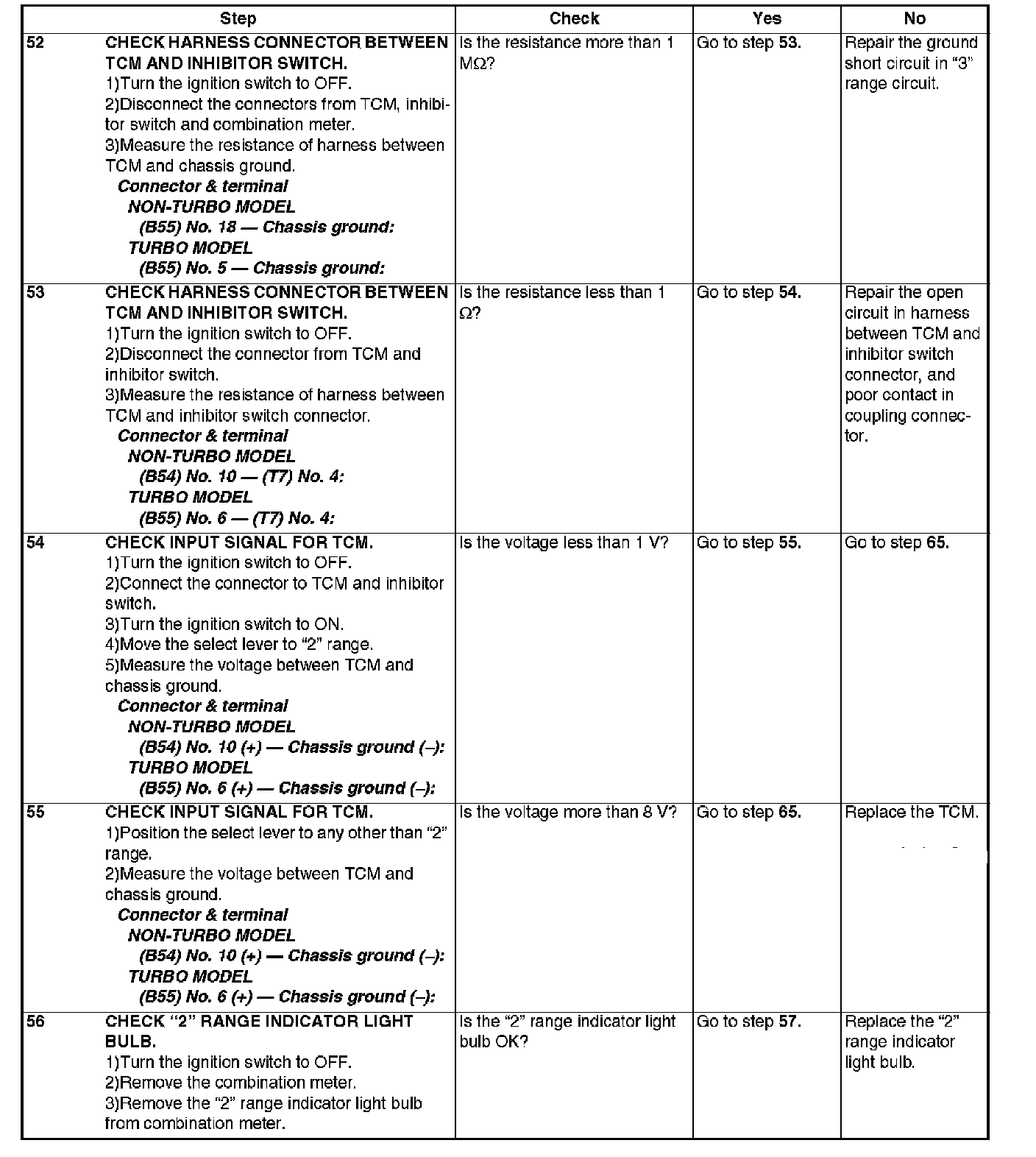

Steps 52-56:

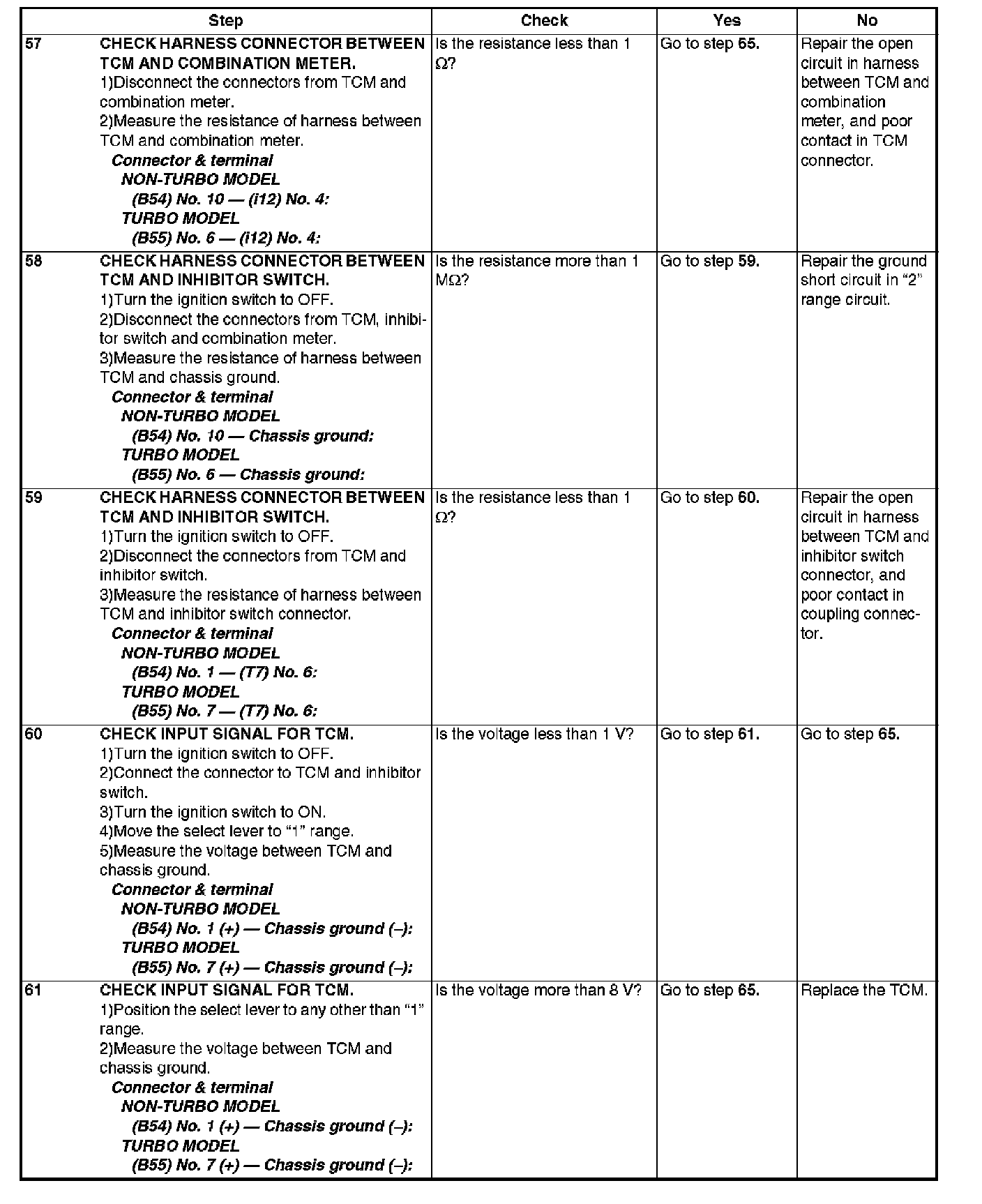

Steps 57-61:

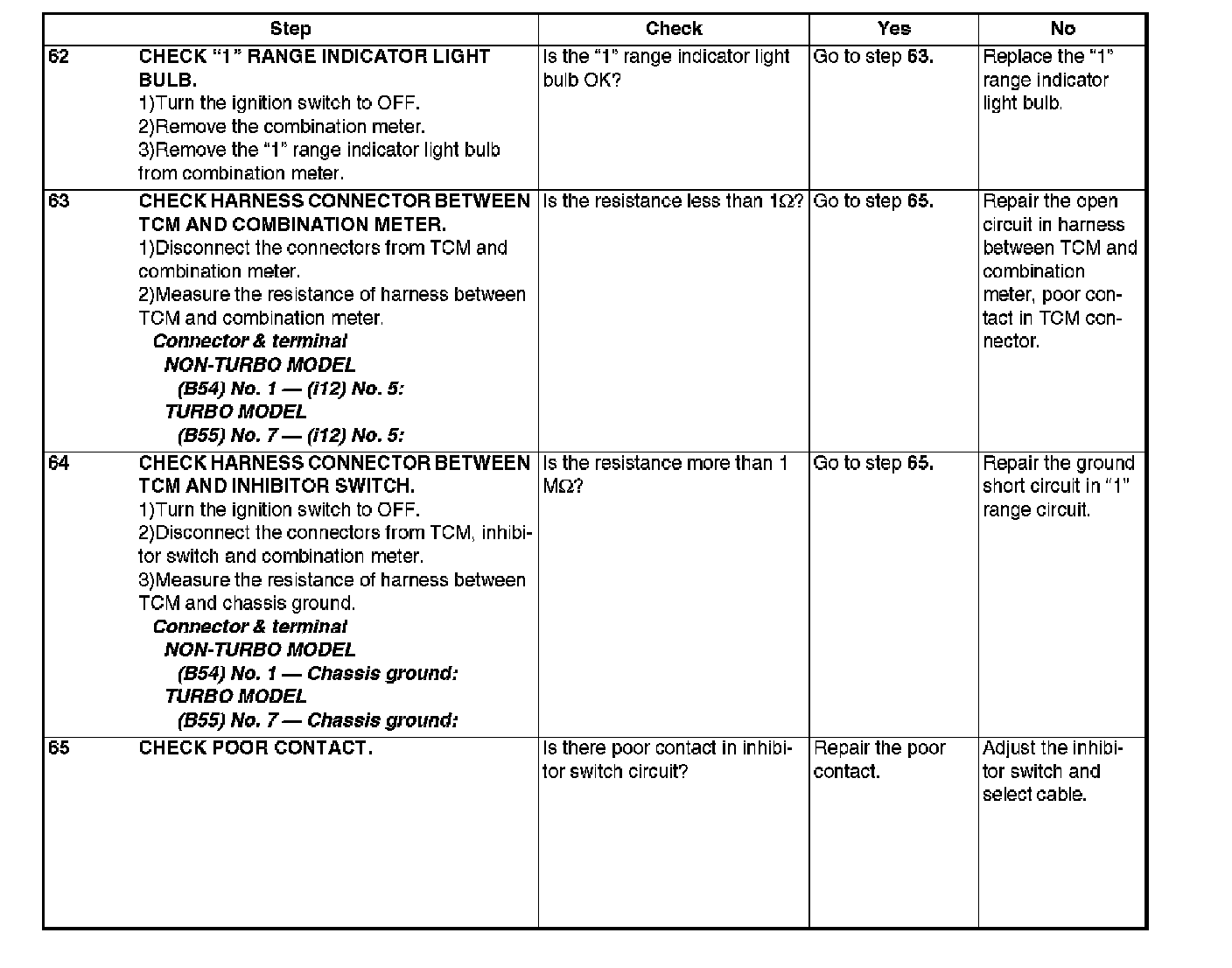

Steps 62-65:

DIAGNOSIS:
The input signal circuit of inhibitor switch is open or shorted.

TROUBLE SYMPTOM:
^ Shift characteristics are erroneous.
^ Engine brake is not effected when selector lever is in "3" range.
^ Engine brake is not effected when selector lever is in "2" range.
^ Engine brake is not effected when selector lever is in "1" range.

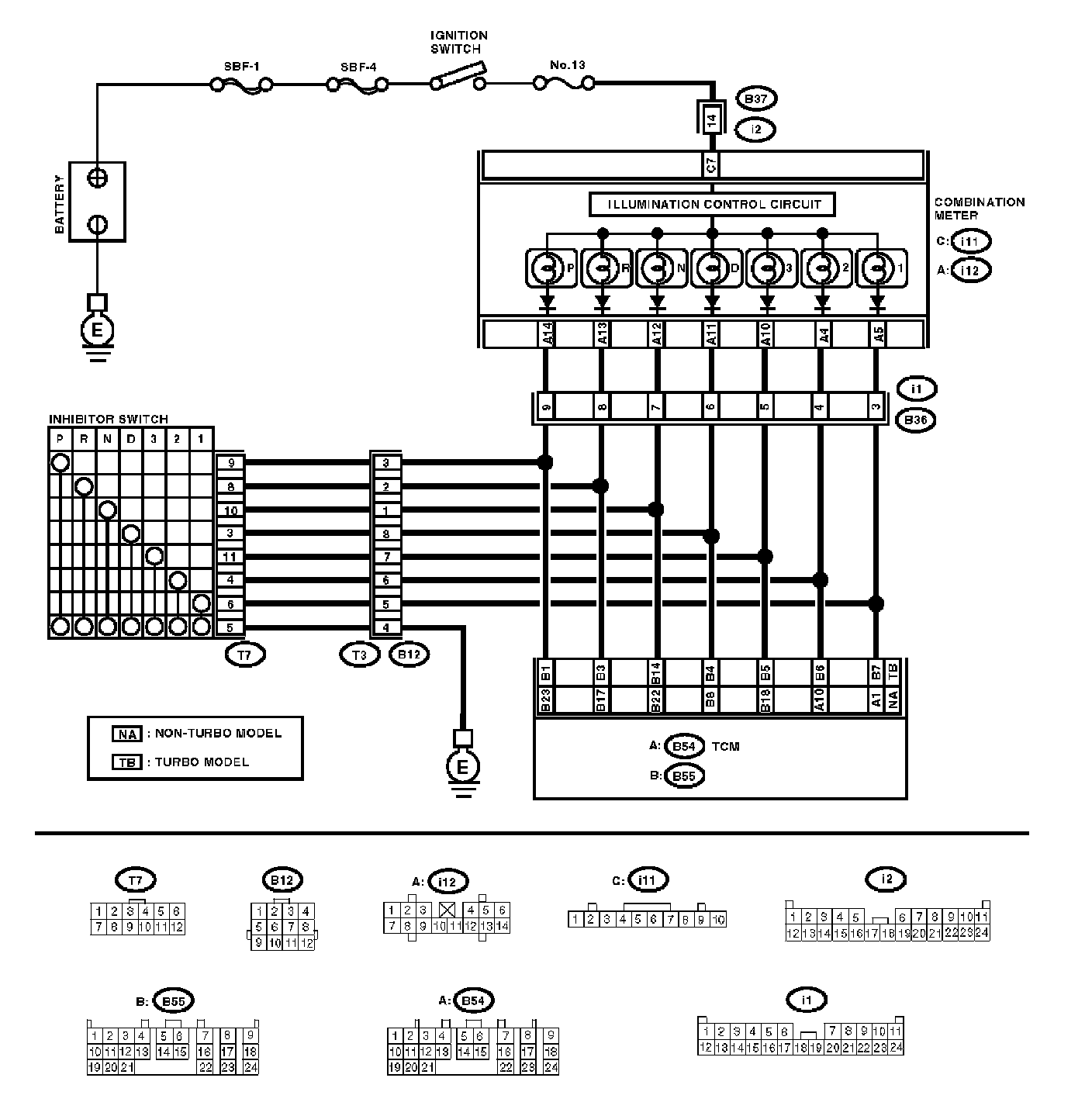

WIRING DIAGRAM
