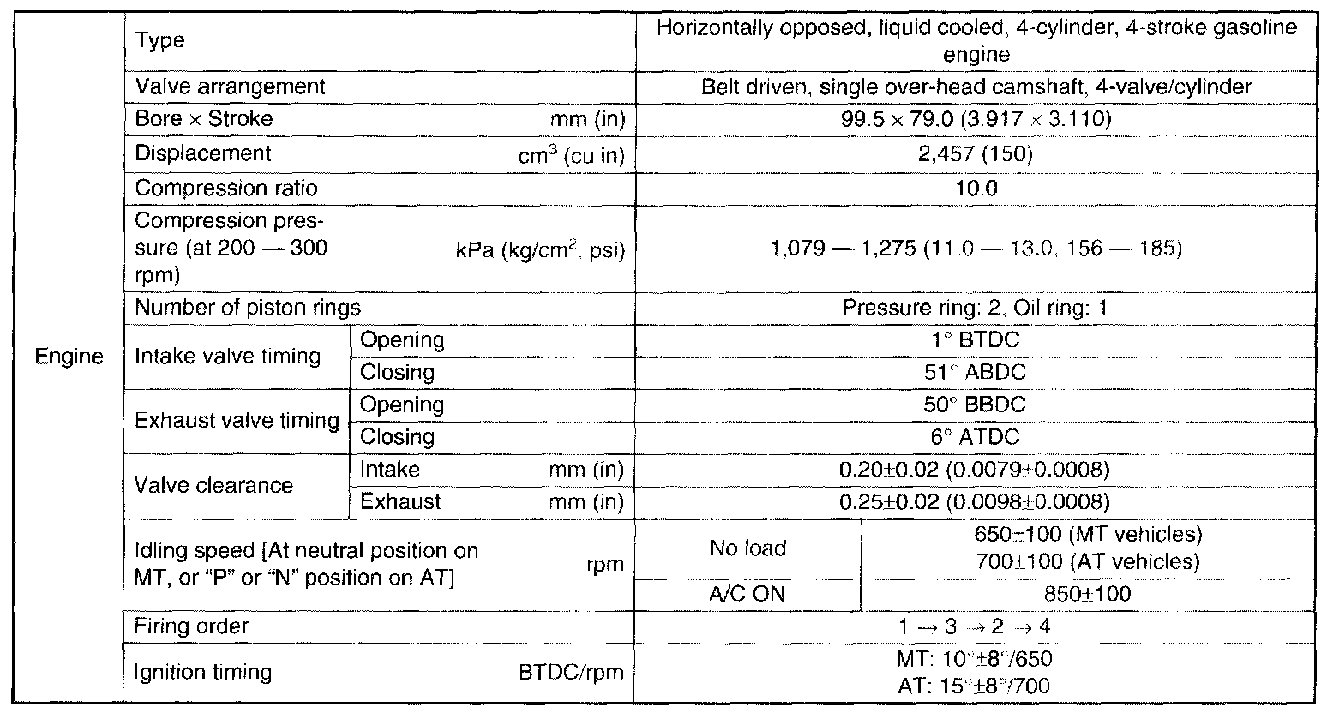

System Specifications
SPECIFICATIONS NOTE: US: Undersize OS: Oversize

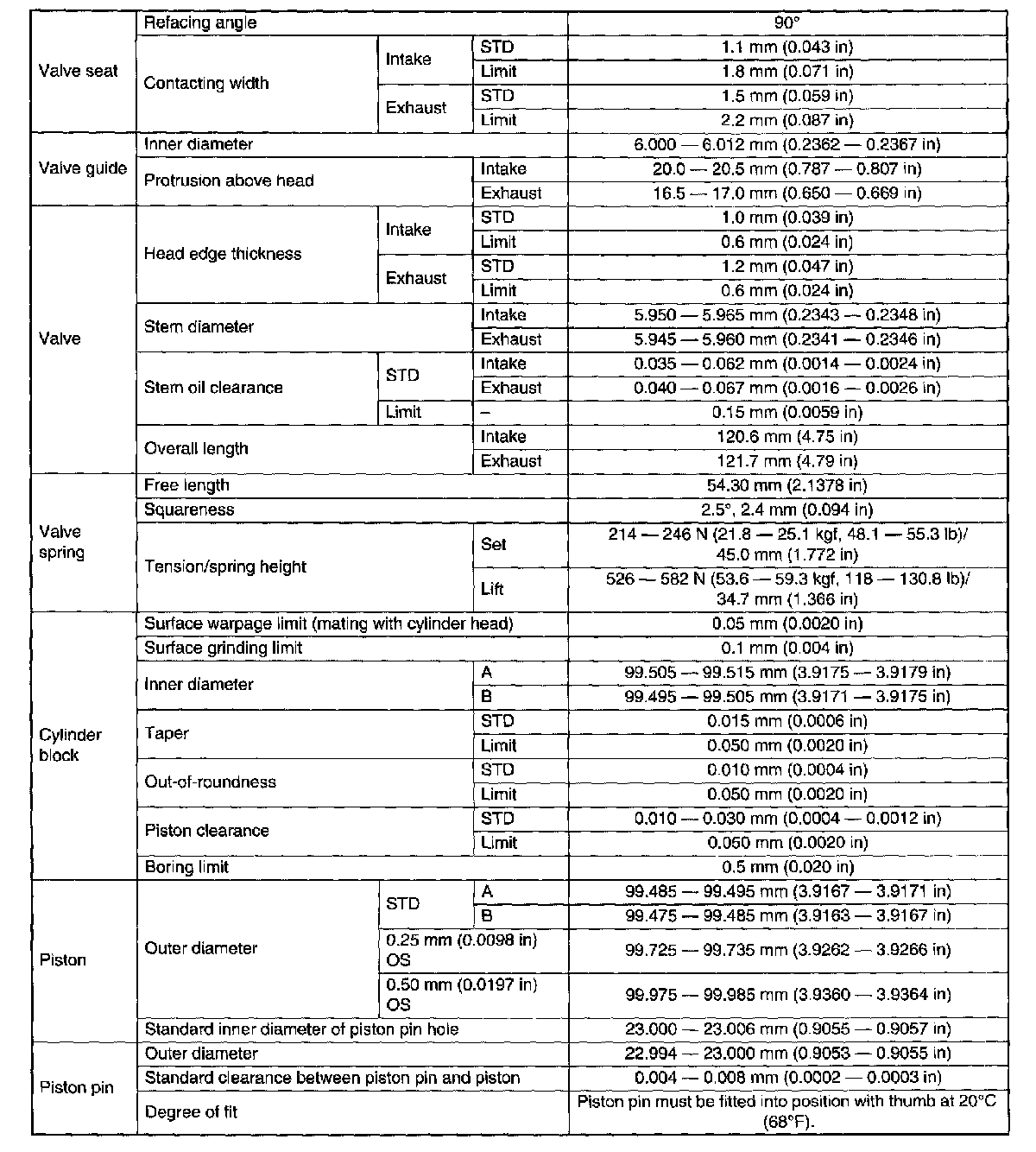

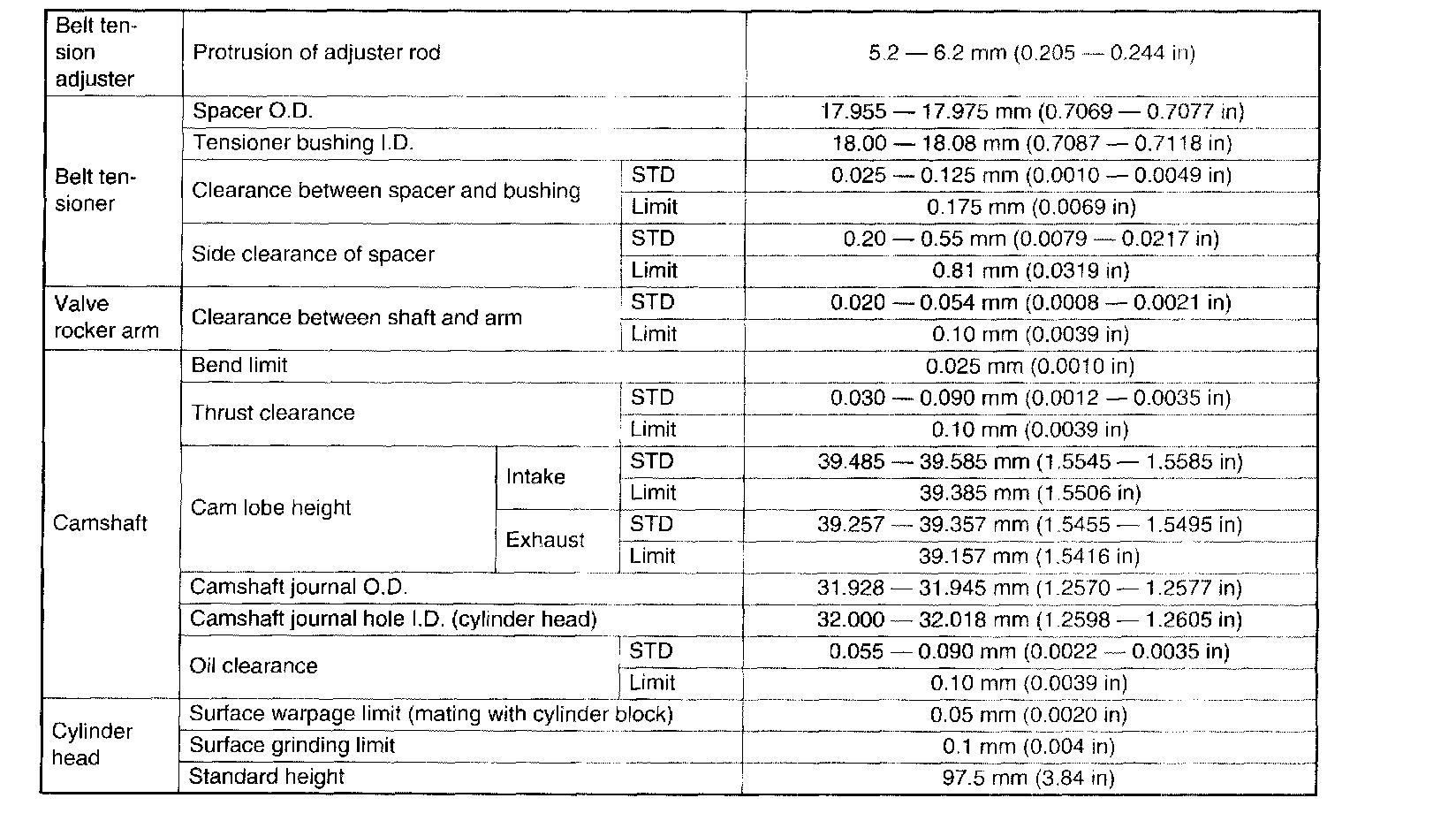

TIMING BELT CYLINDER BLOCK Part 1 Of 2:

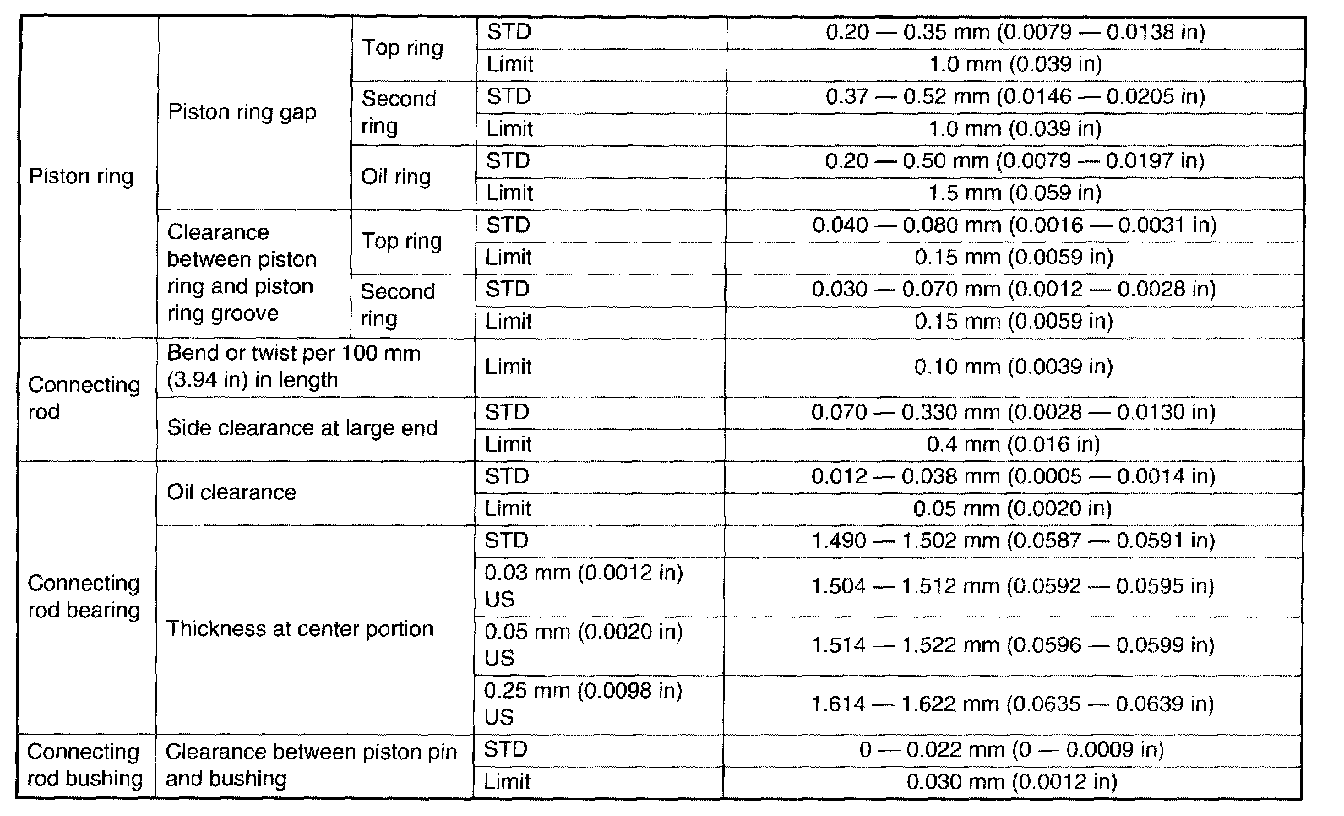

Part 2 Of 2:
CRANKSHAFT AND PISTON ENGINE MOUNTINGCrankshaft pulley bolt:
Stage 1
44 Nm (4.5 kgf-m, 33 ft. lbs.)
Stage 2
177 Nm (18.0 kgf-m, 130.2 ft. lbs.)
Stage 3
angle 65° or more
