Battery: Service and Repair

Battery

REMOVAL




1. Disconnect the positive (+) cable after disconnecting the ground (-) cable of battery.

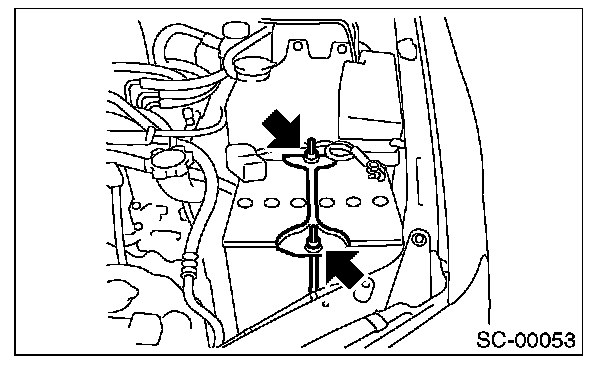

2. Remove the flange nuts from battery rods, and then take off the battery holder.
3. Remove the battery.

INSTALLATION
Install in the reverse order of removal.

Tightening torque: 3.4 N.m (0.35 kgf.m, 2.5 ft.lb)

NOTE:
- Clean the battery cable terminals, and then apply grease to retard formation of corrosion.
- Connect the positive (+) cable of battery and then the ground (-) cable of battery.
