Technical Data

The content of this article/image reflects the changes Identified in
TSB # 18-100-06
as of 02/06/2006
and applies to 2003 Forester & Impreza Models



SPECIFICATIONS

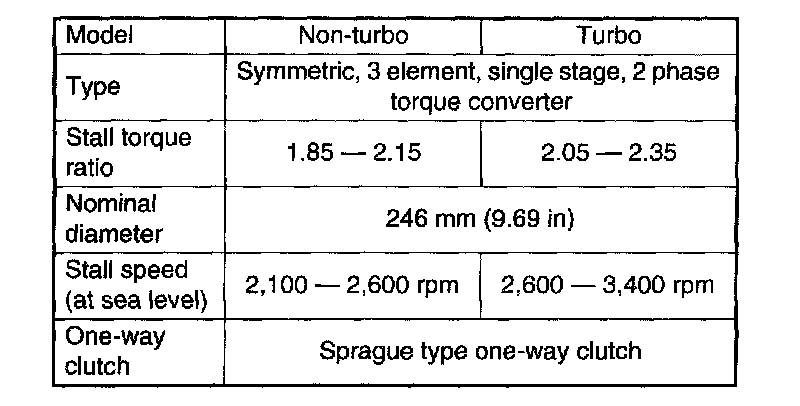

TORQUE CONVERTER CLUTCH

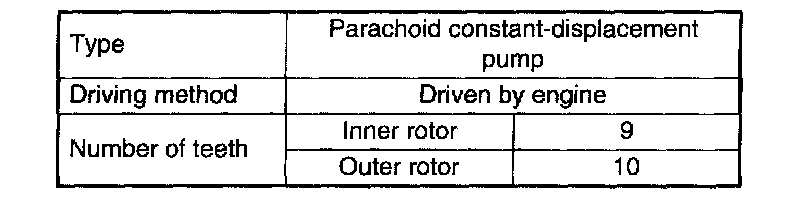

OIL PUMP

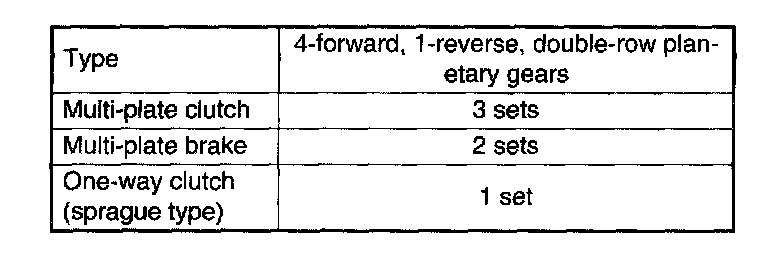

TRANSMISSION CONTROL ELEMENT

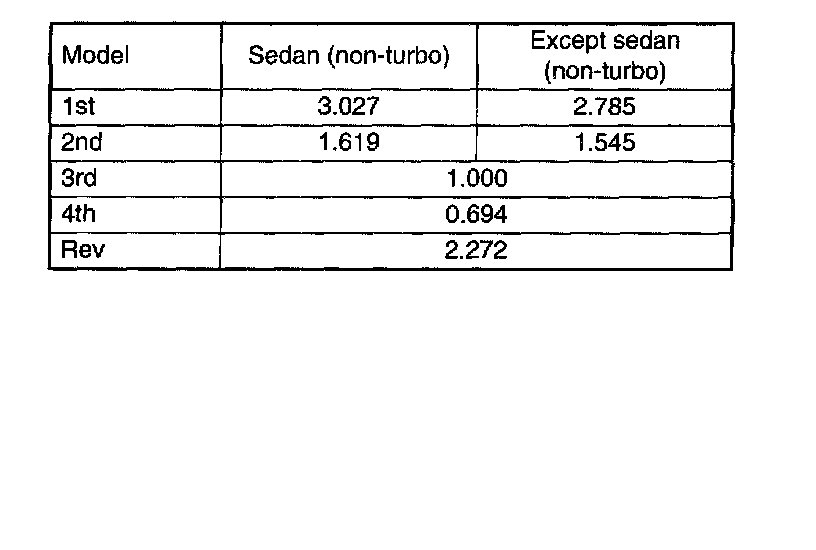

TRANSMISSION GEAR RATIO

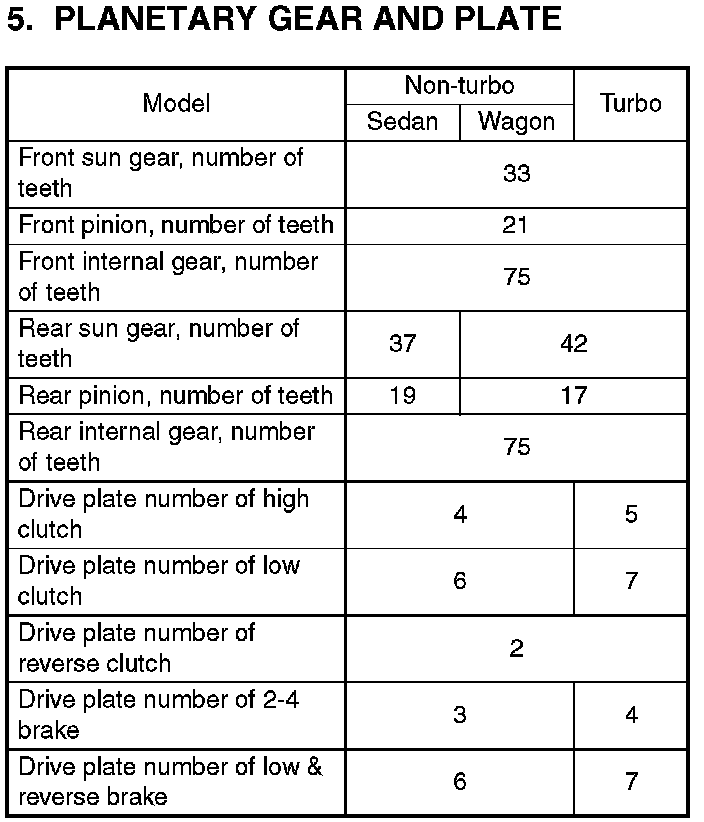

PLANETARY GEAR AND PLATE

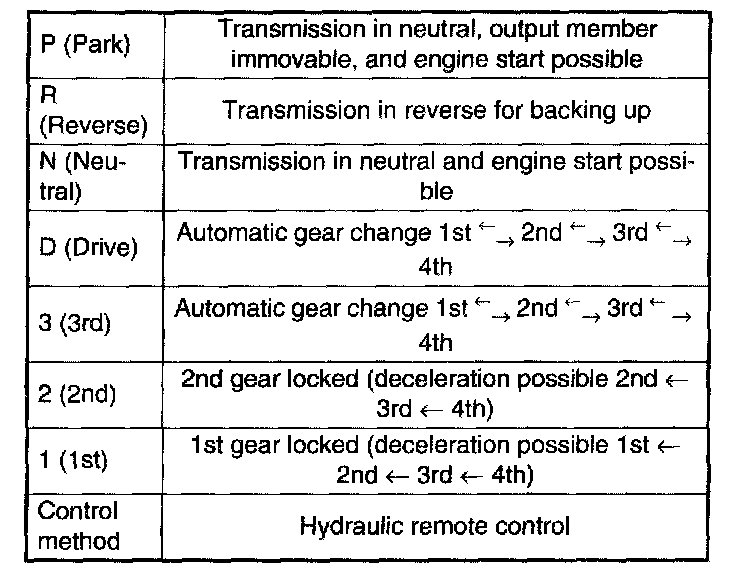

SELECTOR POSITION

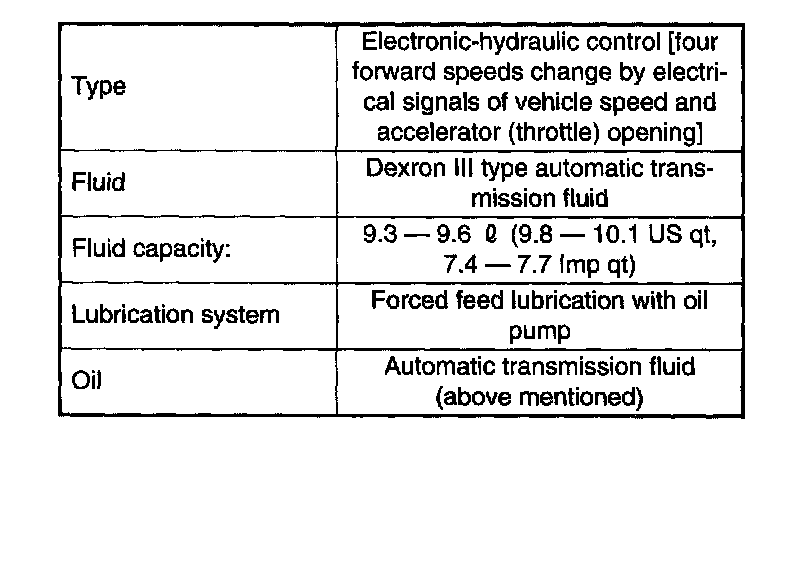

HYDRAULIC CONTROL AND LUBRICATION

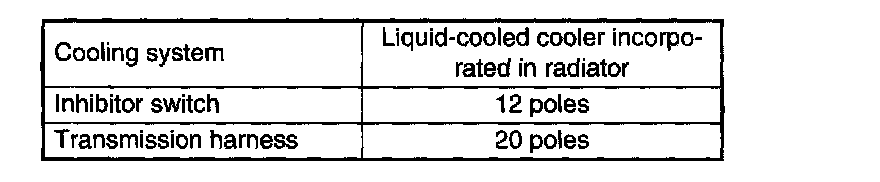

COOLING AND HARNESS

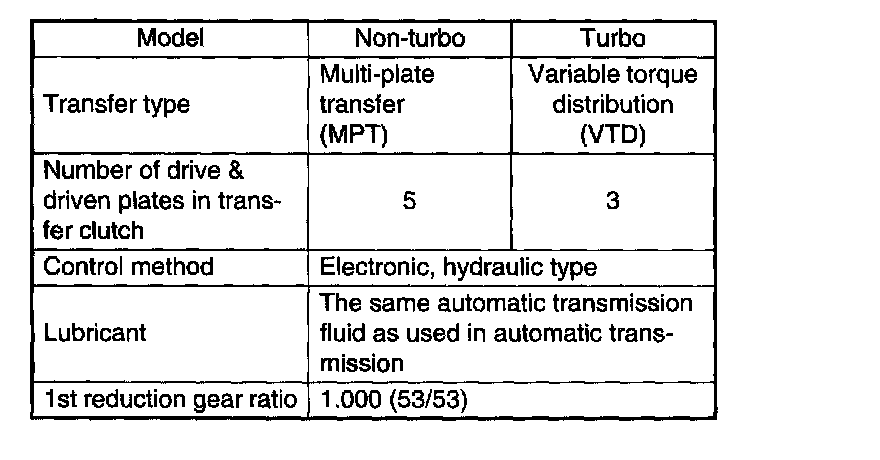

TRANSFER





FINAL REDUCTION
