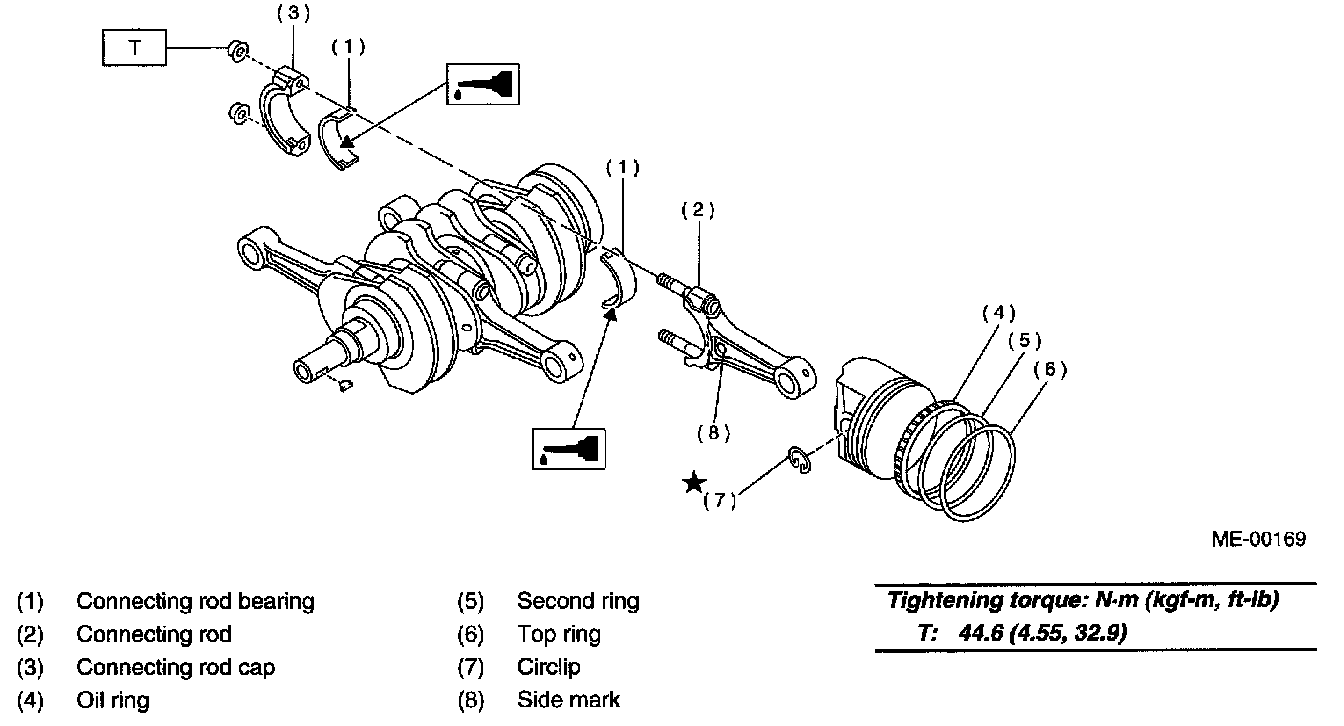

Connecting Rod, Engine
Connecting Rod Cap NutsConnecting rod Bend or twist per 100 mm
Limit
0.10 mm (0 0039 inch)
Side clearance at large end
STD
0.070 - 0.330 mm (0.0028 - 0.0130 inch)
Limit
0.04 mm (0.0016 inch)
Connecting rod bushing
Clearance between
piston pin and bushing
STD
0 - 0.022 mm (0 - 0.0009 inch)
Limit
0.030 mm (0.0012 inch)
