Fuel Pressure Sensor/Switch: Service and Repair
REMOVAL 1.

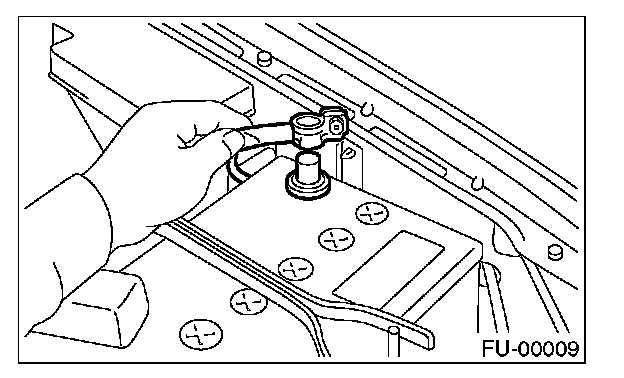

Disconnect battery ground cable.
2.

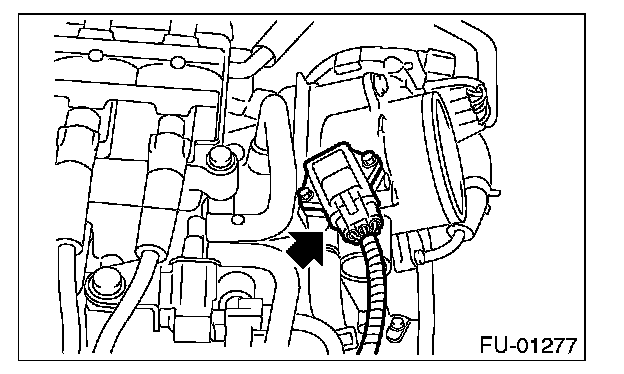

Disconnect connector from pressure sensor.
3.
Remove pressure sensor from throttle body.
INSTALLATIONInstall in the reverse order of removal.
NOTE: Replace O-ring with a new one.
Tightening torque:
1.6 N.m (0.16 kgf.m, 1.2 ft.lb)
