Engine Control System

DTC 49 ABNORMAL ENGINE SPEED SIGNAL

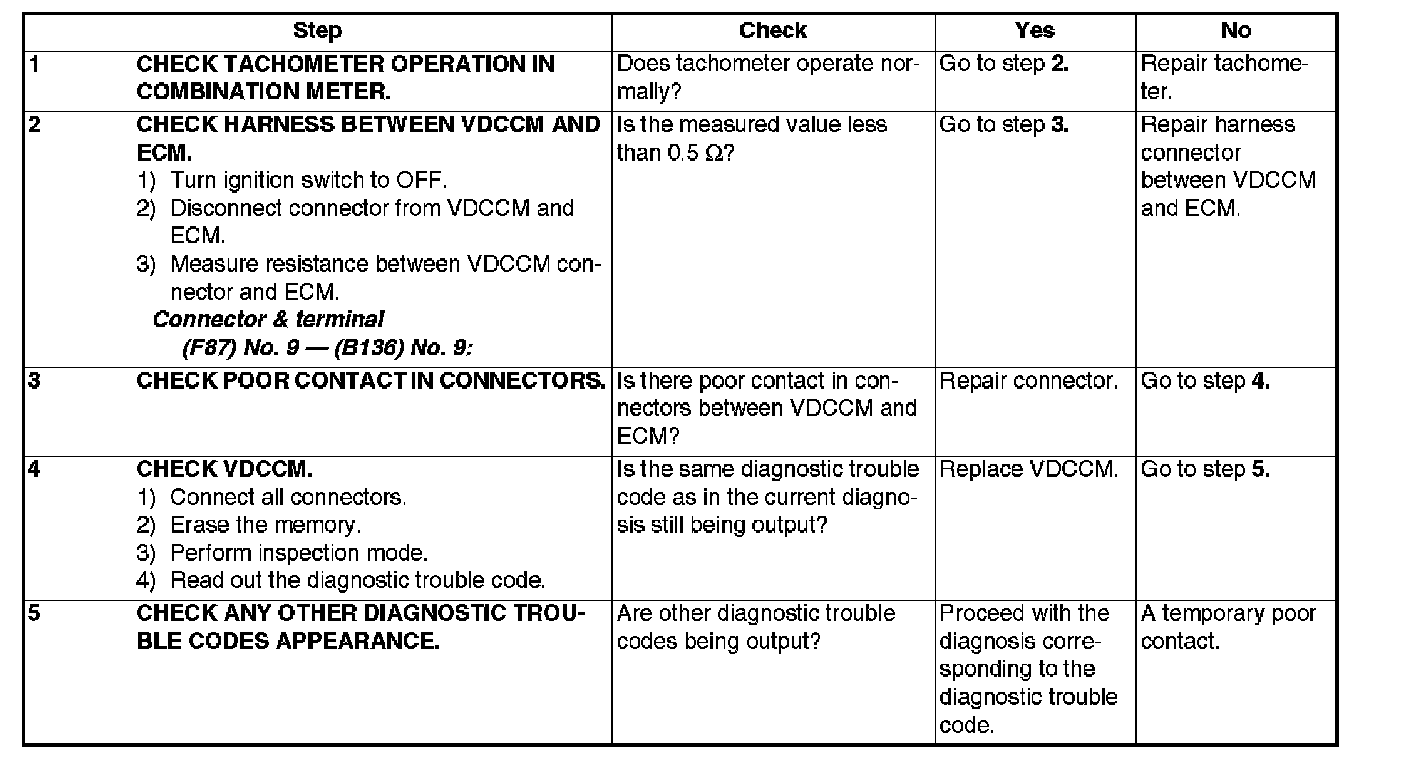

Steps 1-5:






DIAGNOSIS:
^ Engine speed signal line is broken or short circuited.

TROUBLE SYMPTOM:
^ VDC does not operate.





WIRING DIAGRAM
