Without Scan Tool

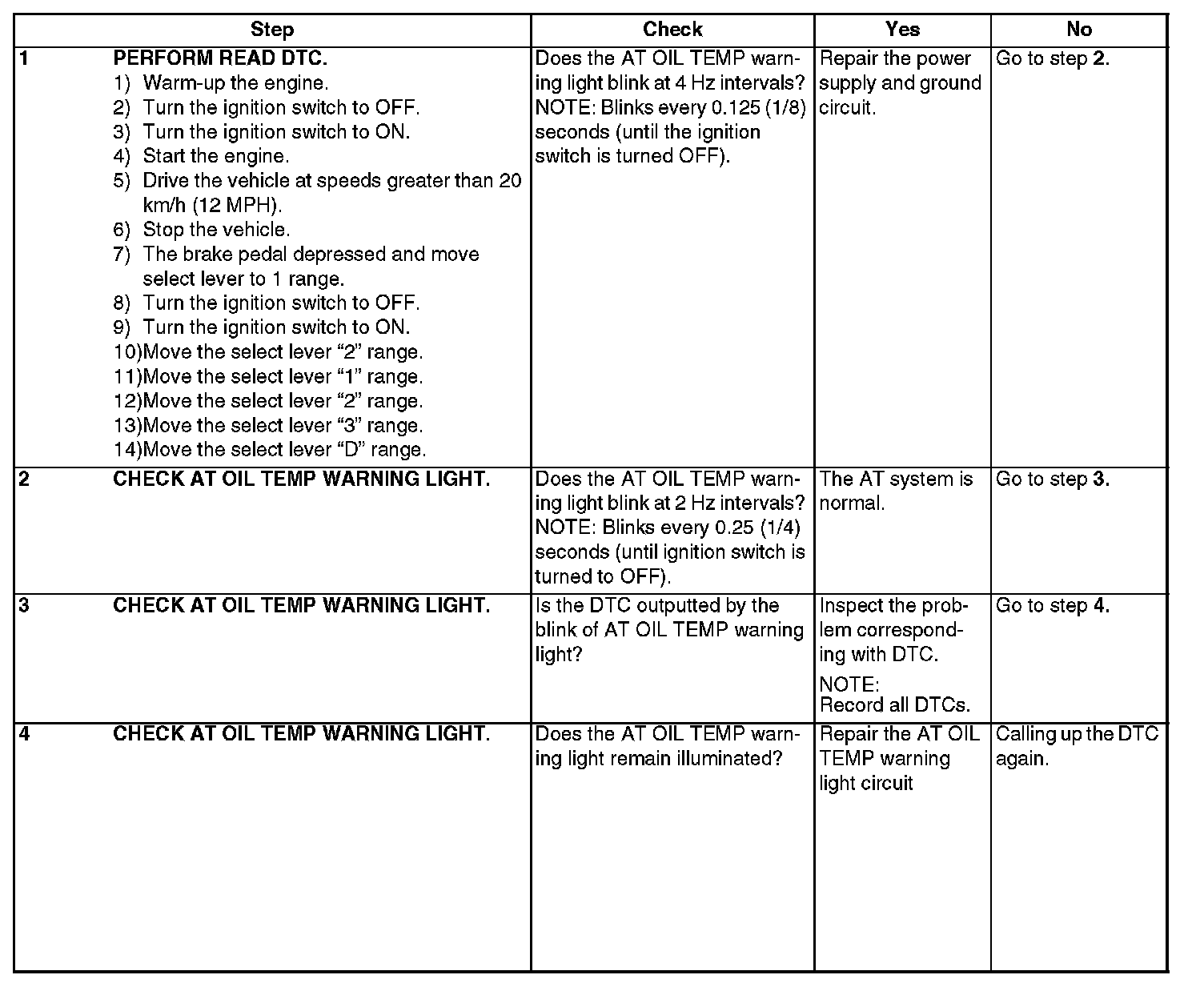

Read Diagnostic Trouble Code (DTC) OPERATION Steps 1-4:
WITHOUT SUBARU SELECT MONITOR ^

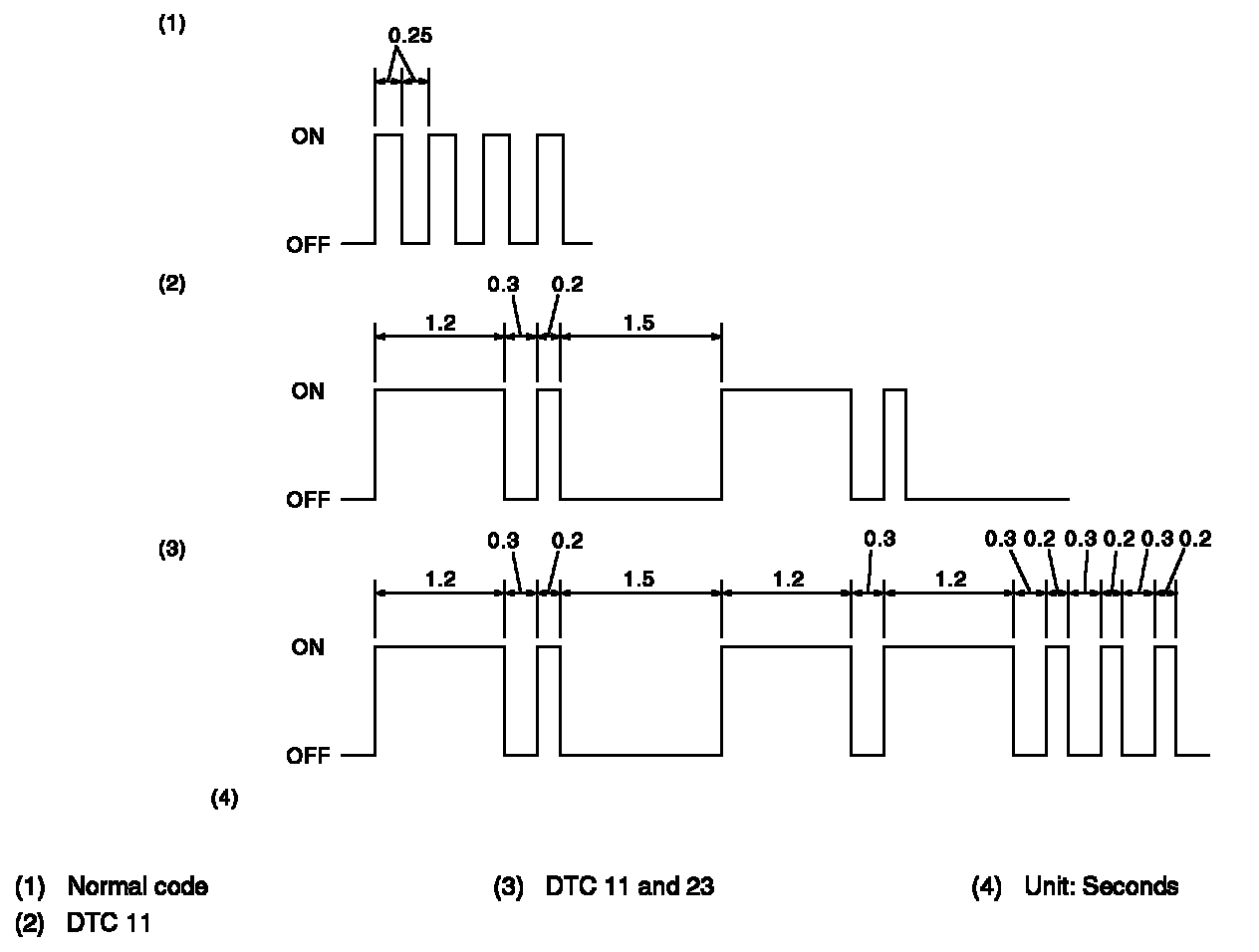

The way of reading DTC
The AT OIL TEMP warning light flashes the code corresponding to faulty part.
The long segment
(1.2 seconds on) indicates a "ten", and the short segment
(0.2 seconds on) signifies a "one".
