Transmission Control Systems
DTC 11 ENGINE SPEED SIGNAL DIAGNOSIS: Engine speed input signal circuit is open or shorted.
TROUBLE SYMPTOM: -
No lock-up (after engine warm-up).
-
AT OIL TEMP warning light remains on when vehicle speed is "0".

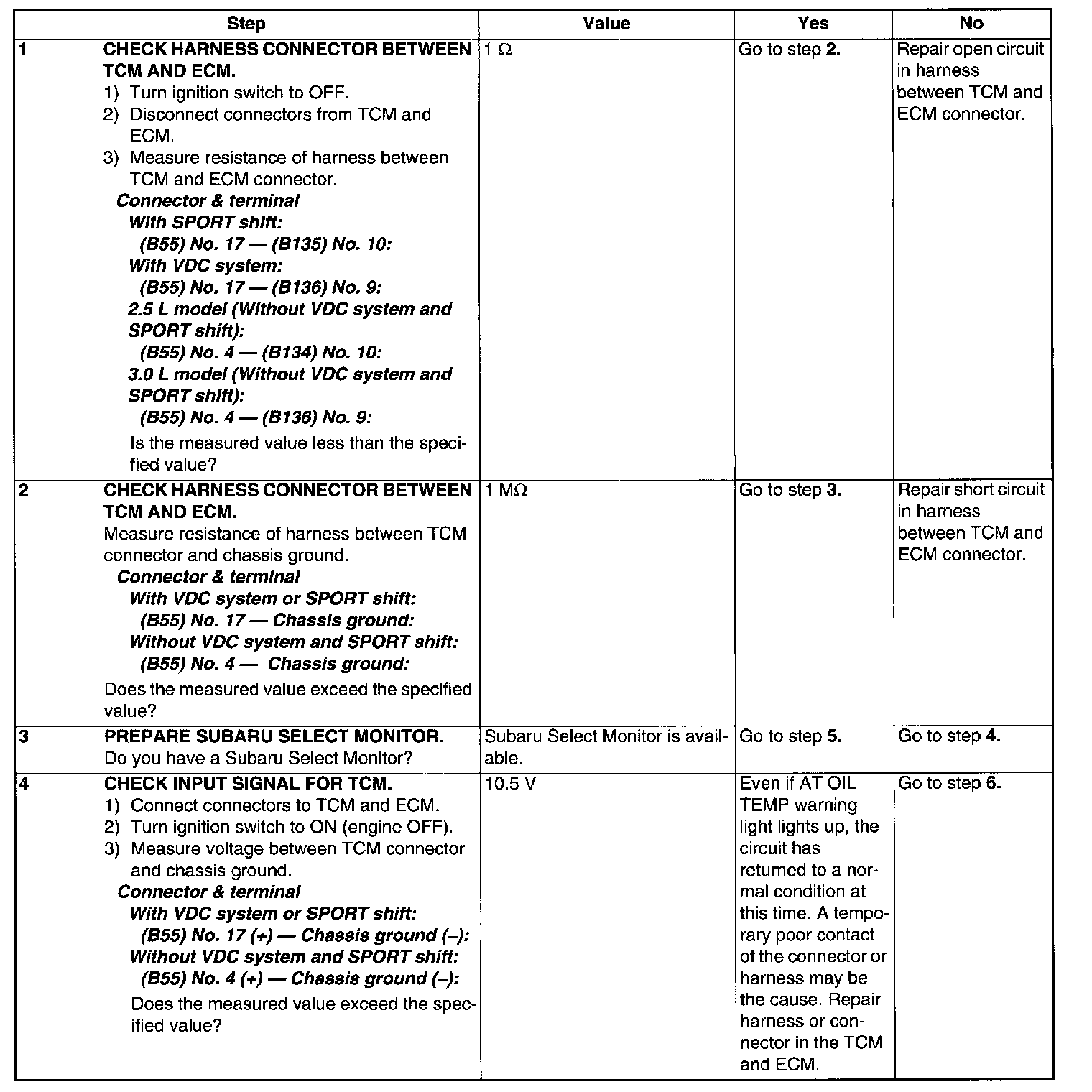

WIRING DIAGRAM: Test 1 Of 2:

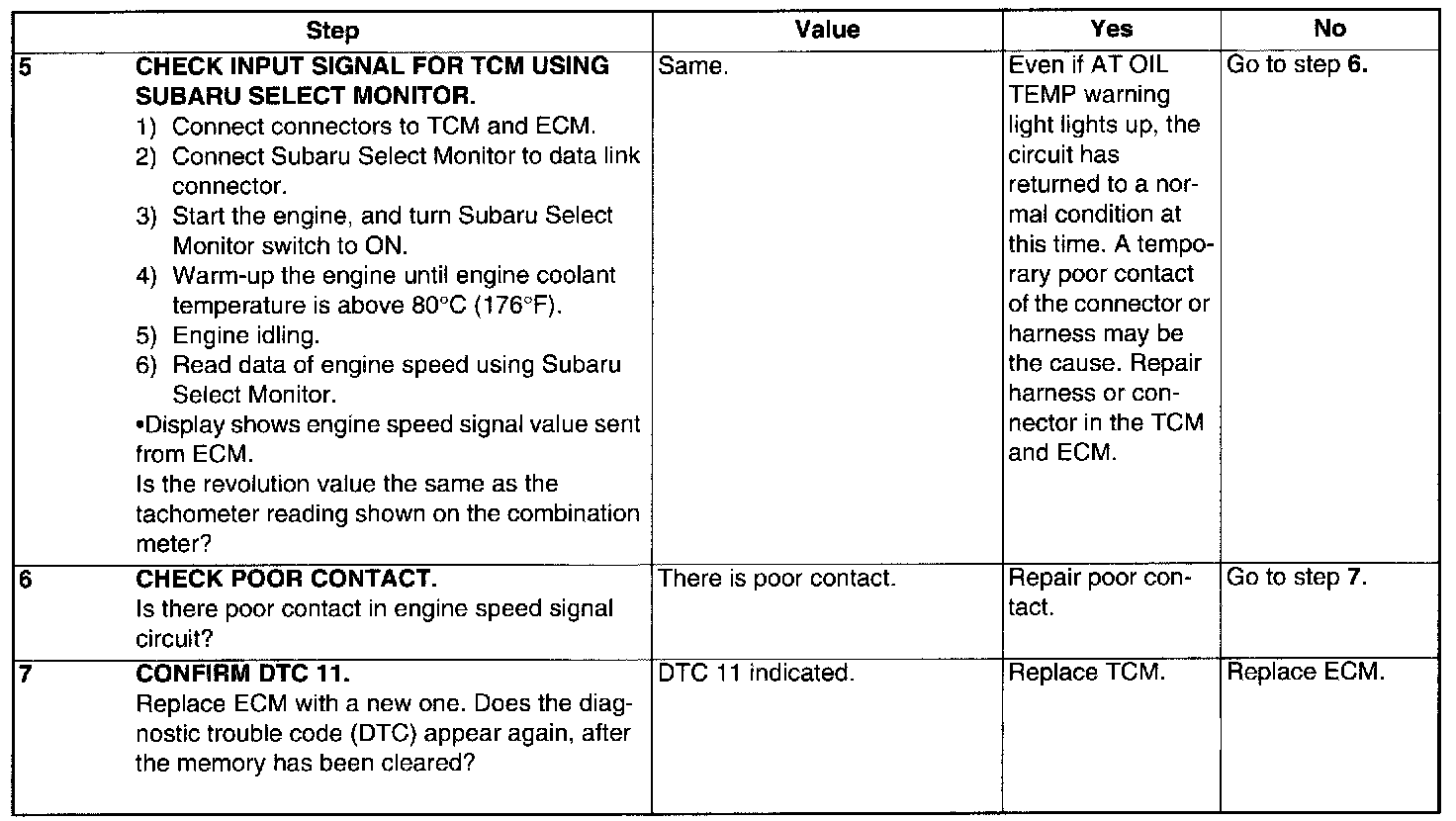

Test 2 Of 2:
