Timing Components: Specifications

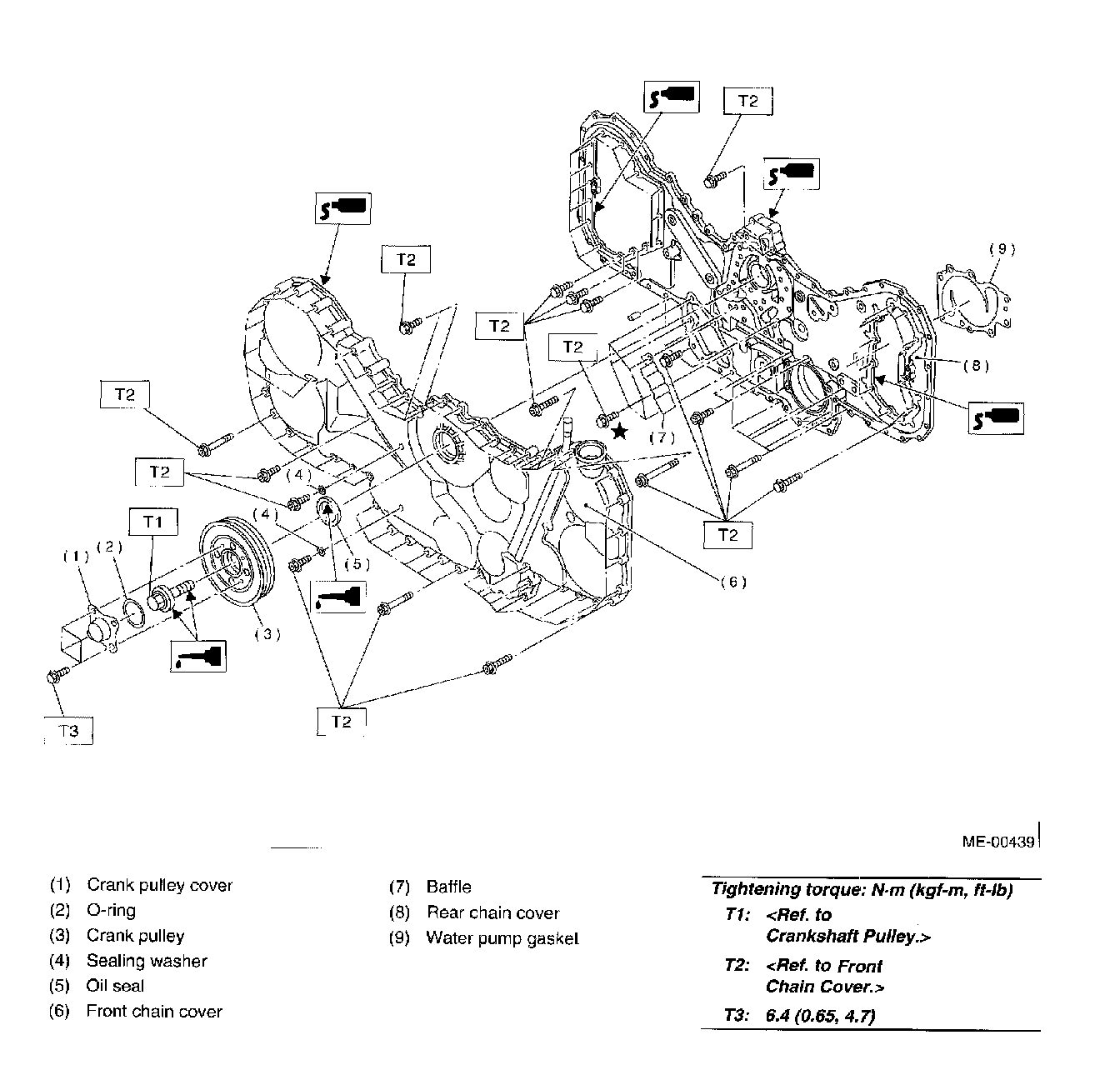

TIMING CHAIN COVER
Tightening torque
6.6 Nm (0.67 kgf-m, 4.8 ft-lb) Note: Tighten the bolts in the numerical sequence shown in figure.
CRANKSHAFT PULLEY/TIMING GEAR
Pulley Bolt

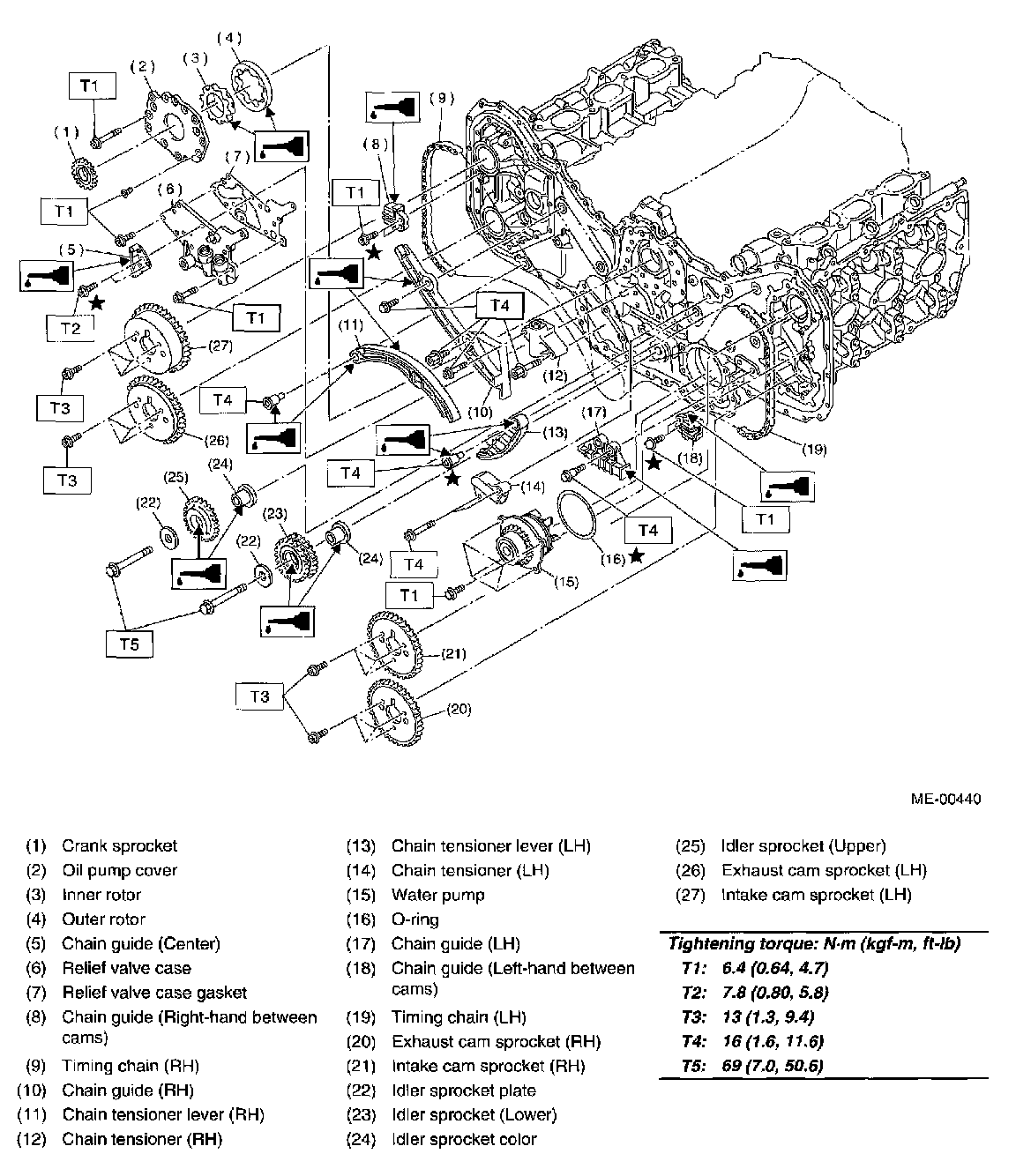

178 Nm (18.1 kgf-m, 131 ft-lbs)TIMING CHAIN
