Drive Belt: Service and Repair
V-belt REMOVAL 1.
Fit the tool to the belt tensioner mounting bolt.
2.
Turn the tool clockwise, and loosen the V-belt to remove.
3.
Remove the V-belt cover.
INSTALLATION 1.
Install in the reverse order of removal.
INSPECTION 1.
Replace belts, if cracks, fraying or wear is found.
2.

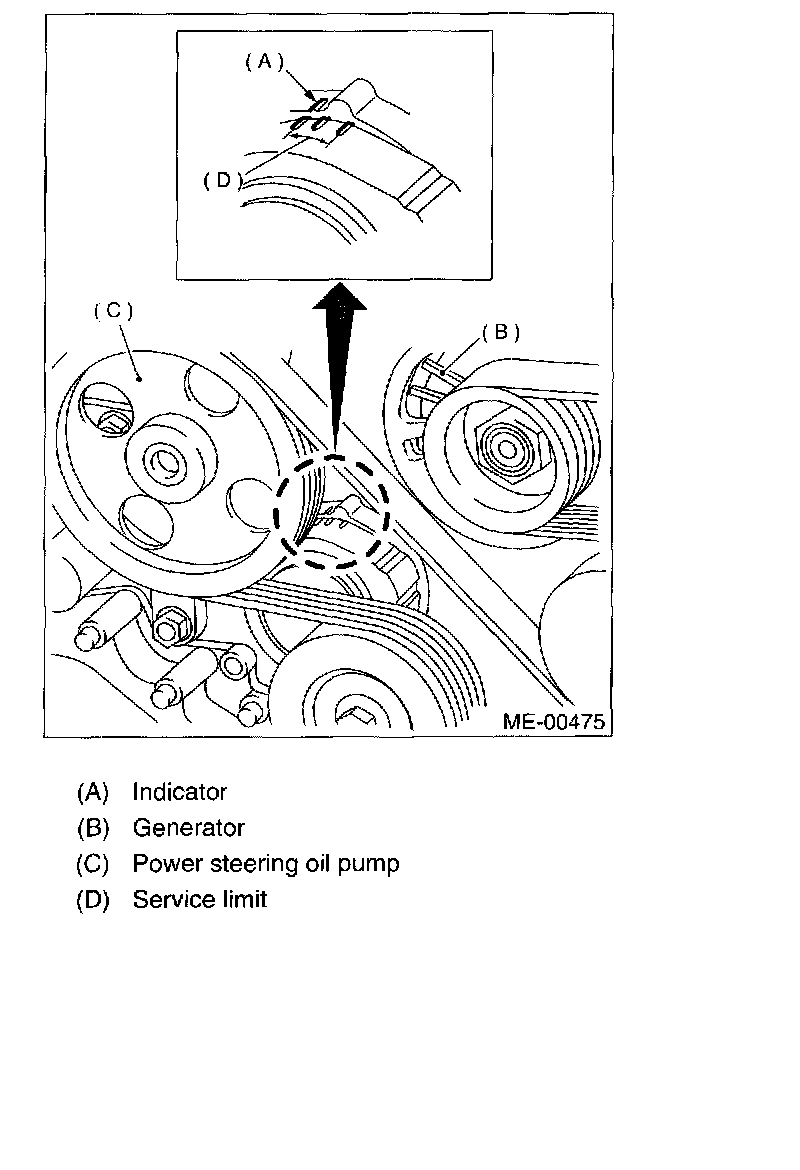

Check that the V-belt automatic tensioner indicator (A) is within the range (D).
