Variable Induction Check Valve: Service and Repair
Induction ValveREMOVAL 1.
Disconnect battery ground cable.
2.
Remove intake manifold.
3.

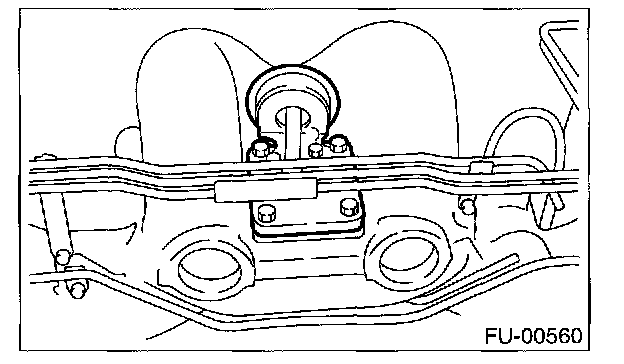

Remove induction valve from intake manifold.
INSTALLATIONInstall in the reverse order of removal.
NOTE: Always use a new gasket.
Tightening torque:
19 N.m (1.9 kgf-m, 14 ft-lb)
