Control Module Pinout Values - With VDC

Control Module I/O Signal

ELECTRICAL SPECIFICATION











NOTE:

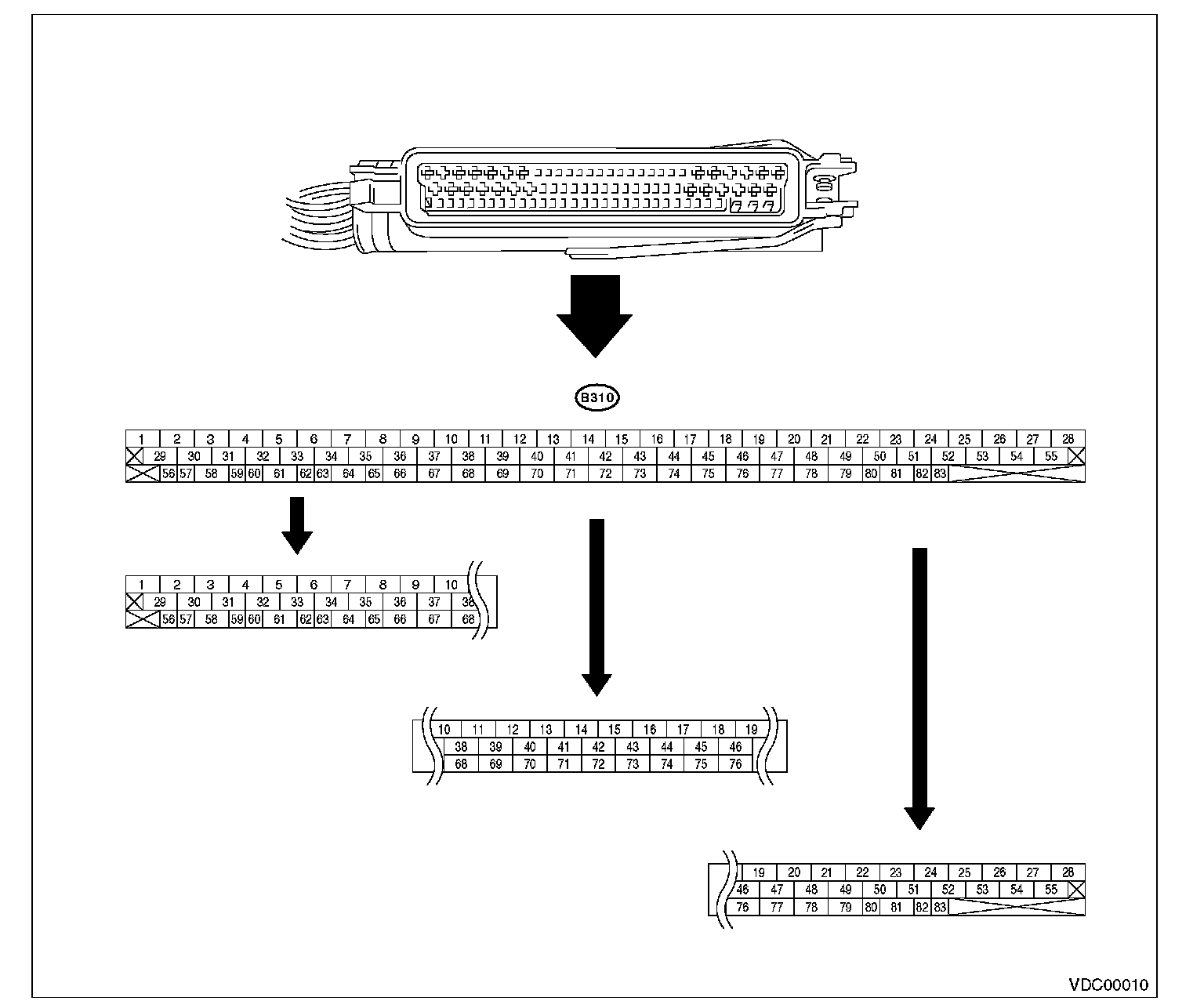

^ Terminal numbers of VDCCM connectors are as shown in the figure.
^ When the connector is removed from VDCCM, the connector switch closes the circuit between terminal No. 53 and 54. At this time, ABS warning light and brake warning light (EBD warning light) illuminate.

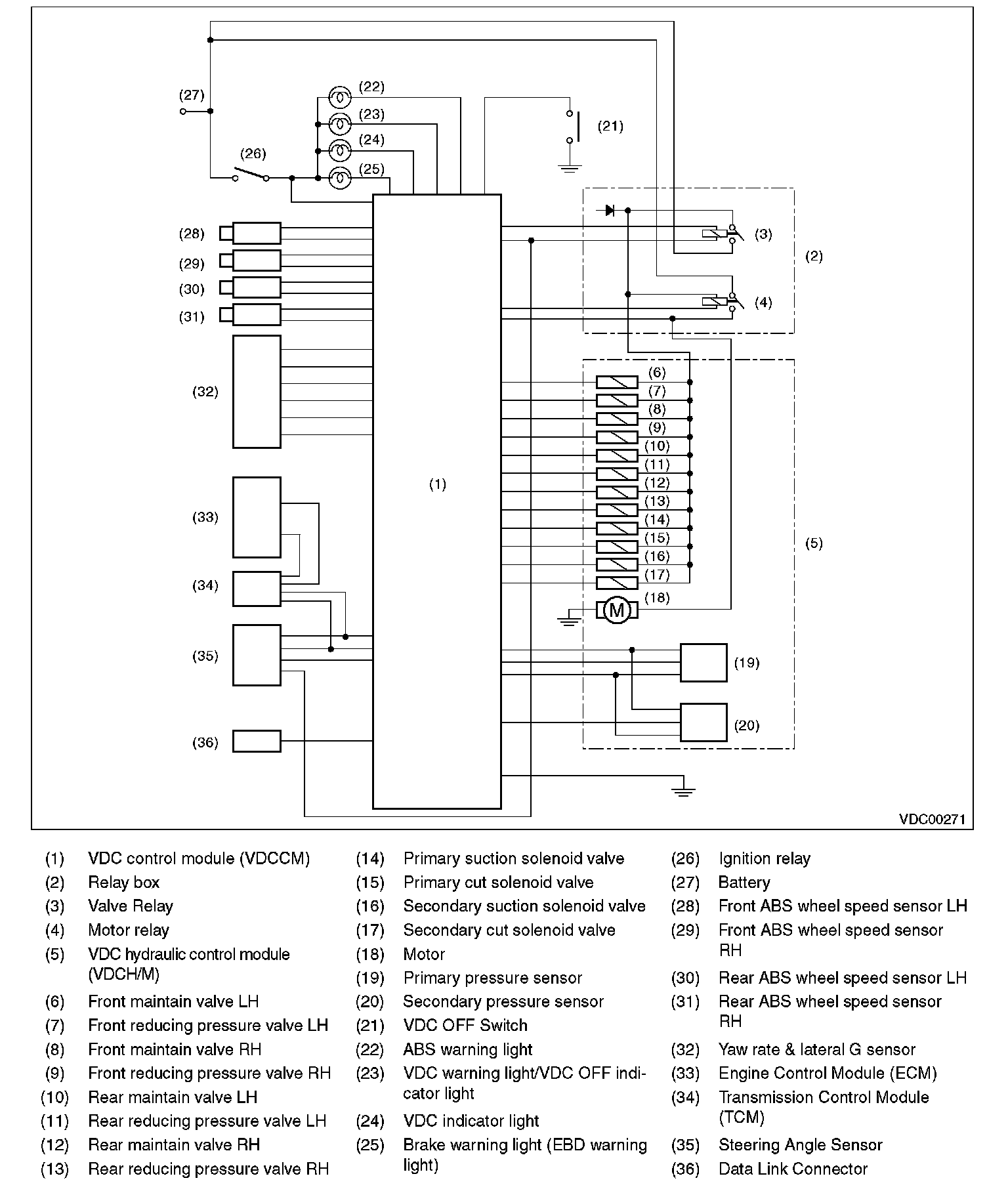

WIRING DIAGRAM

MEASUREMENT

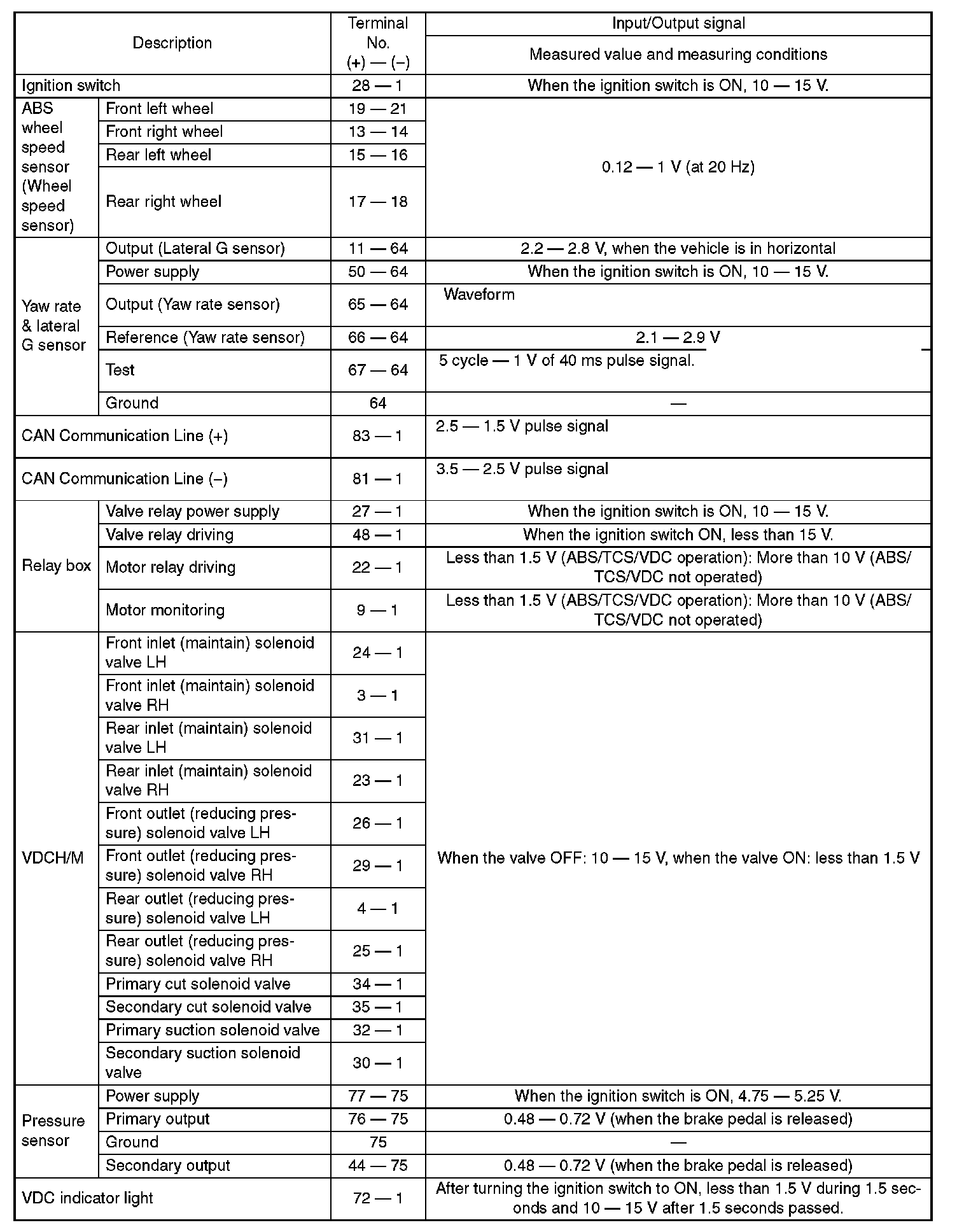

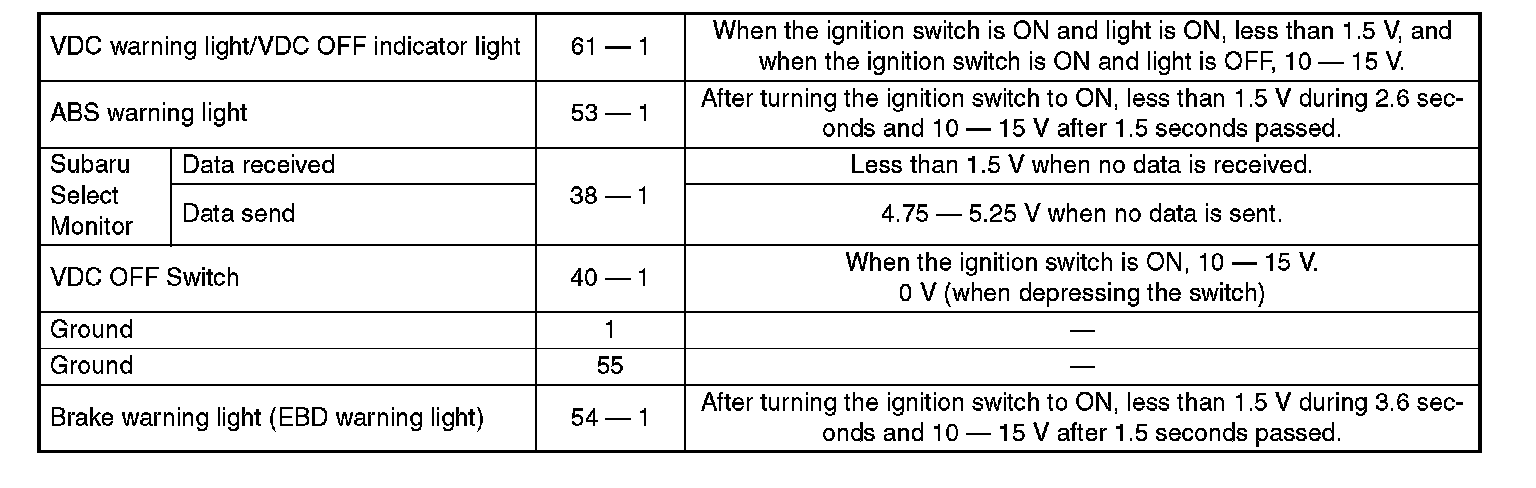

Measure input/output signal voltage.

NOTE: Measure it with VDCCM connector cover removed.

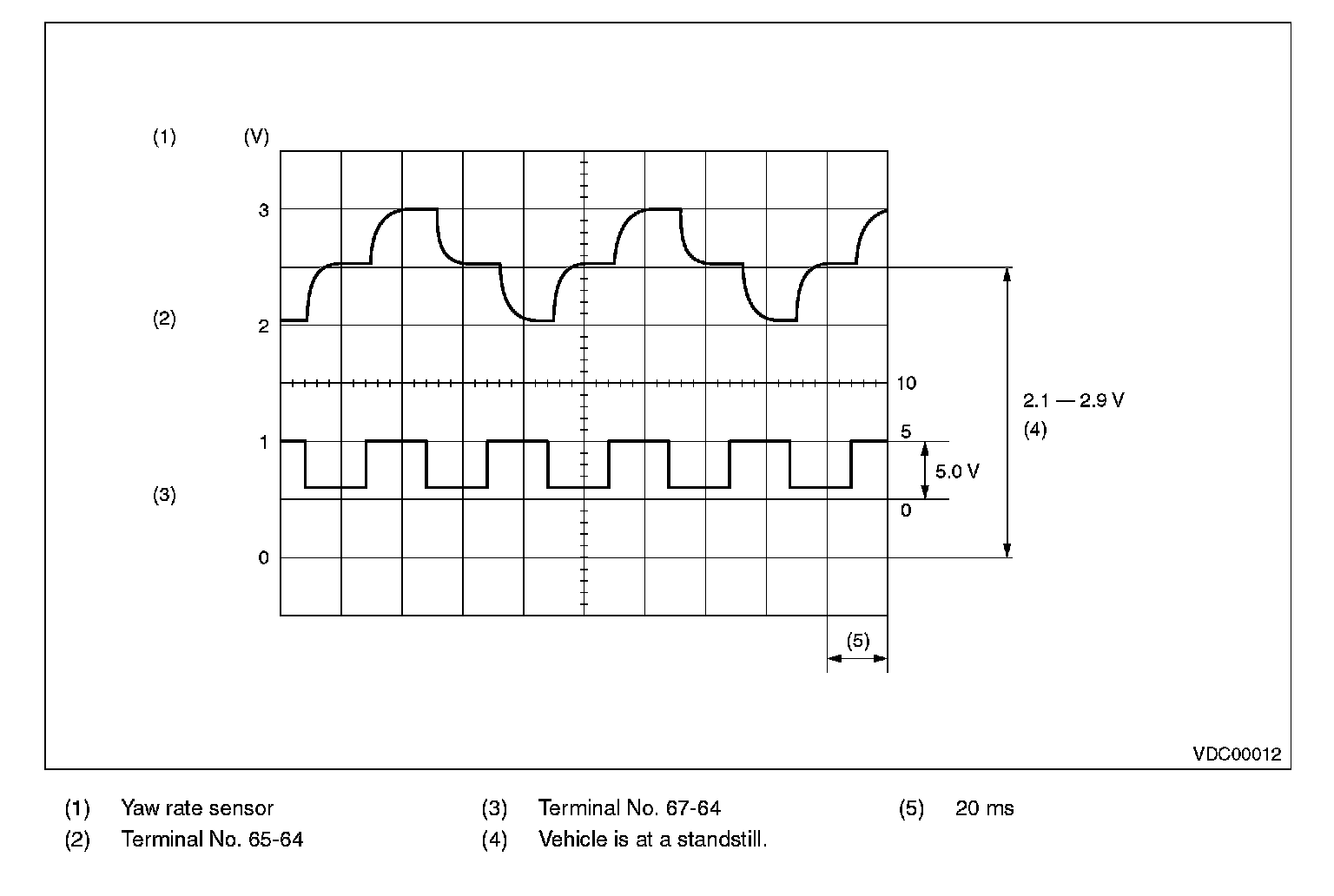

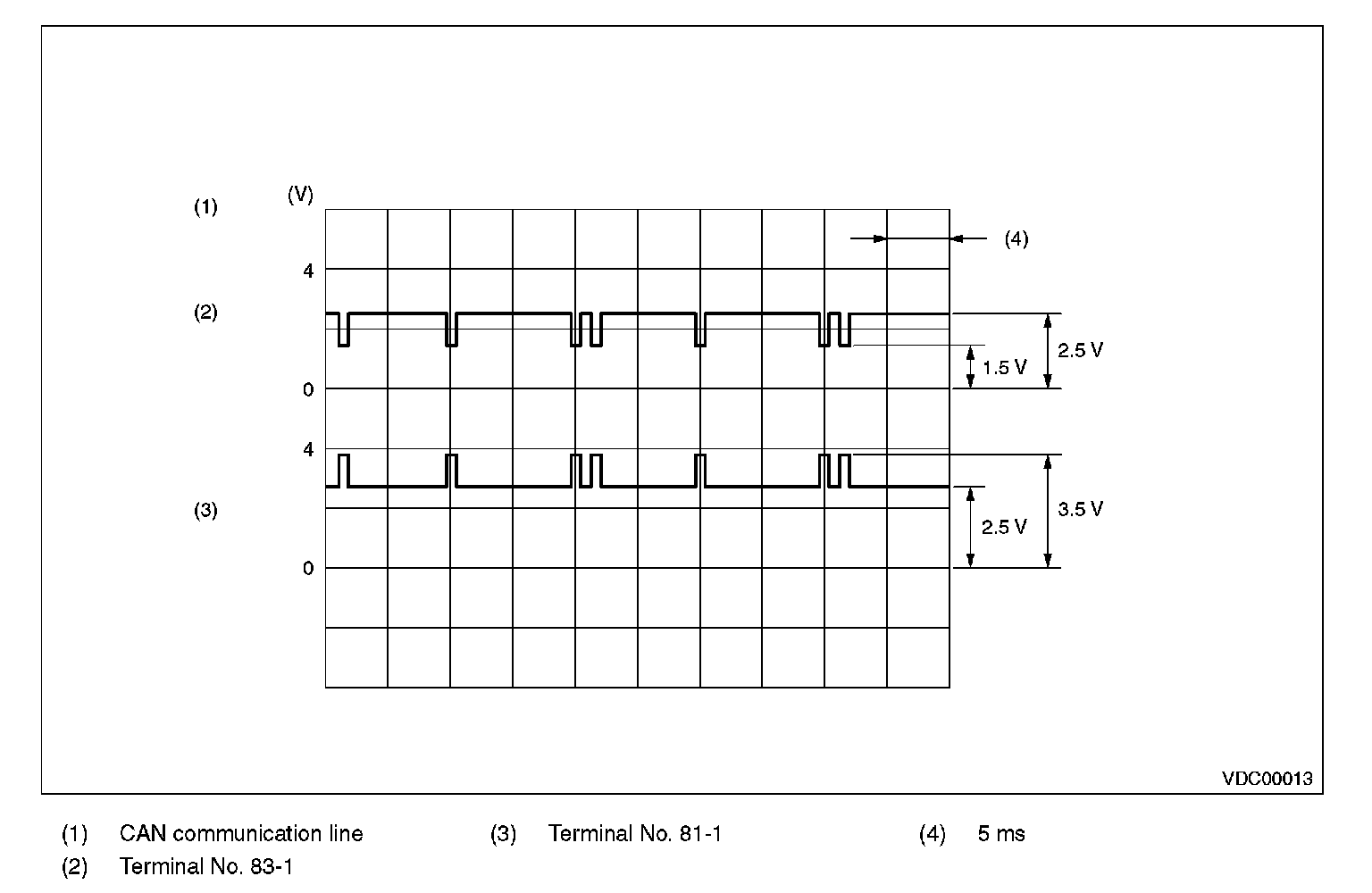

WAVEFORM








NOTE: For output waveform of ABS wheel speed sensor, refer to the "ABS DIAGNOSTICS".
