Timing Cover: Service and Repair
Timing Belt CoverREMOVAL
1) Remove the V-belts.
2) Remove the crank pulley.
3) Remove the timing belt cover (LH).
4) Remove the front timing belt cover.
INSTALLATION

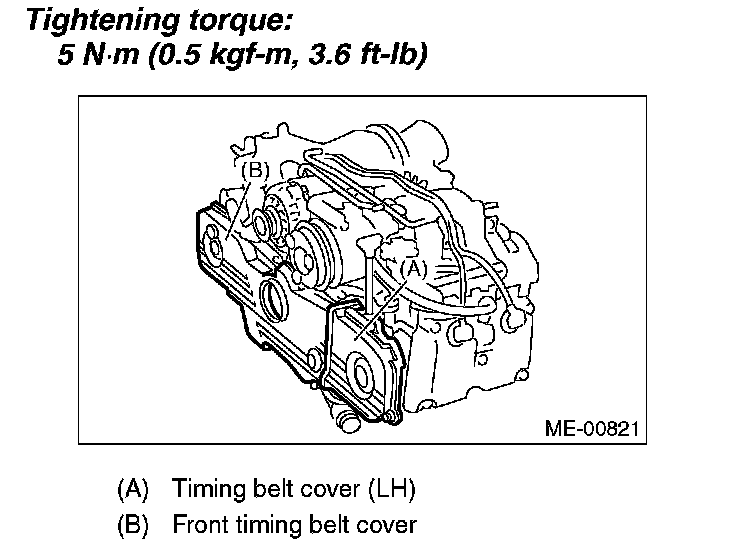

1) Install the front timing belt cover.
Tightening torque: 5 Nm (0.5 kgf-m, 3.6 ft. lbs.)
2) Install the timing belt cover (LH).
Tightening torque: 5 Nm (0.5 kgf-m, 3.6 ft. lbs.)
3) Install the crank pulley.
4) Install the V-belts.
INSPECTION
Check the cover for damage.
