Fuel Tank Sensor Control Valve
Fuel Tank Sensor Control ValveREMOVAL 1.
Remove the
fuel tank.
2.

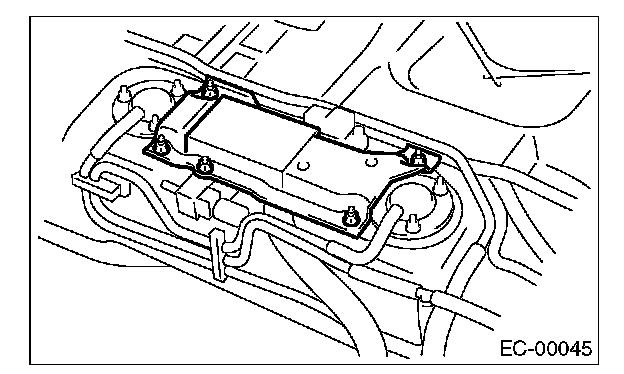

Remove the protector cover.
3.

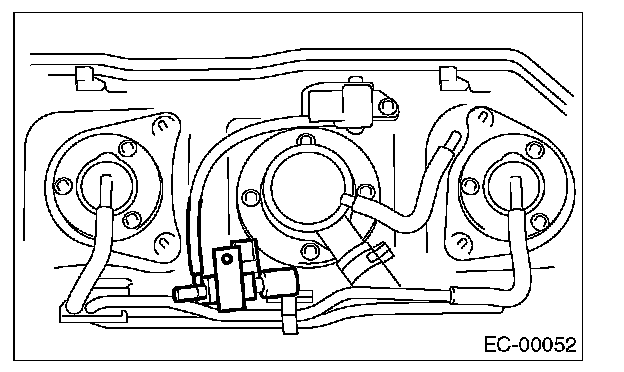

Disconnect the connector from fuel tank sensor control valve.
4.
Disconnect the hose, and then remove the fuel tank sensor control valve.

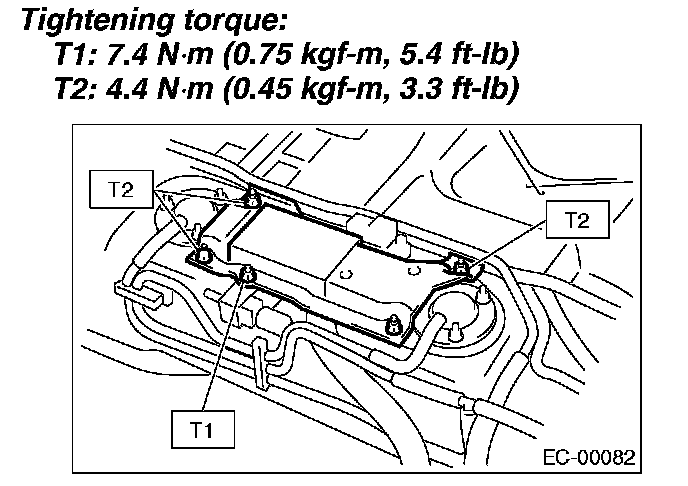

INSTALLATIONInstall in the reverse order of removal.
