Check Inhibitor Switch
CHECK INHIBITOR SWITCH DIAGNOSIS: The input signal circuit of inhibitor switch is open or shorted.
TROUBLE SYMPTOM: ^
Shift characteristics are erroneous.
^
Engine brake is not effected when selector lever is in 3 range.
^
Engine brake is not effected when selector lever is in 2 range.
^
Engine brake is not effected when selector lever is in 1 range.

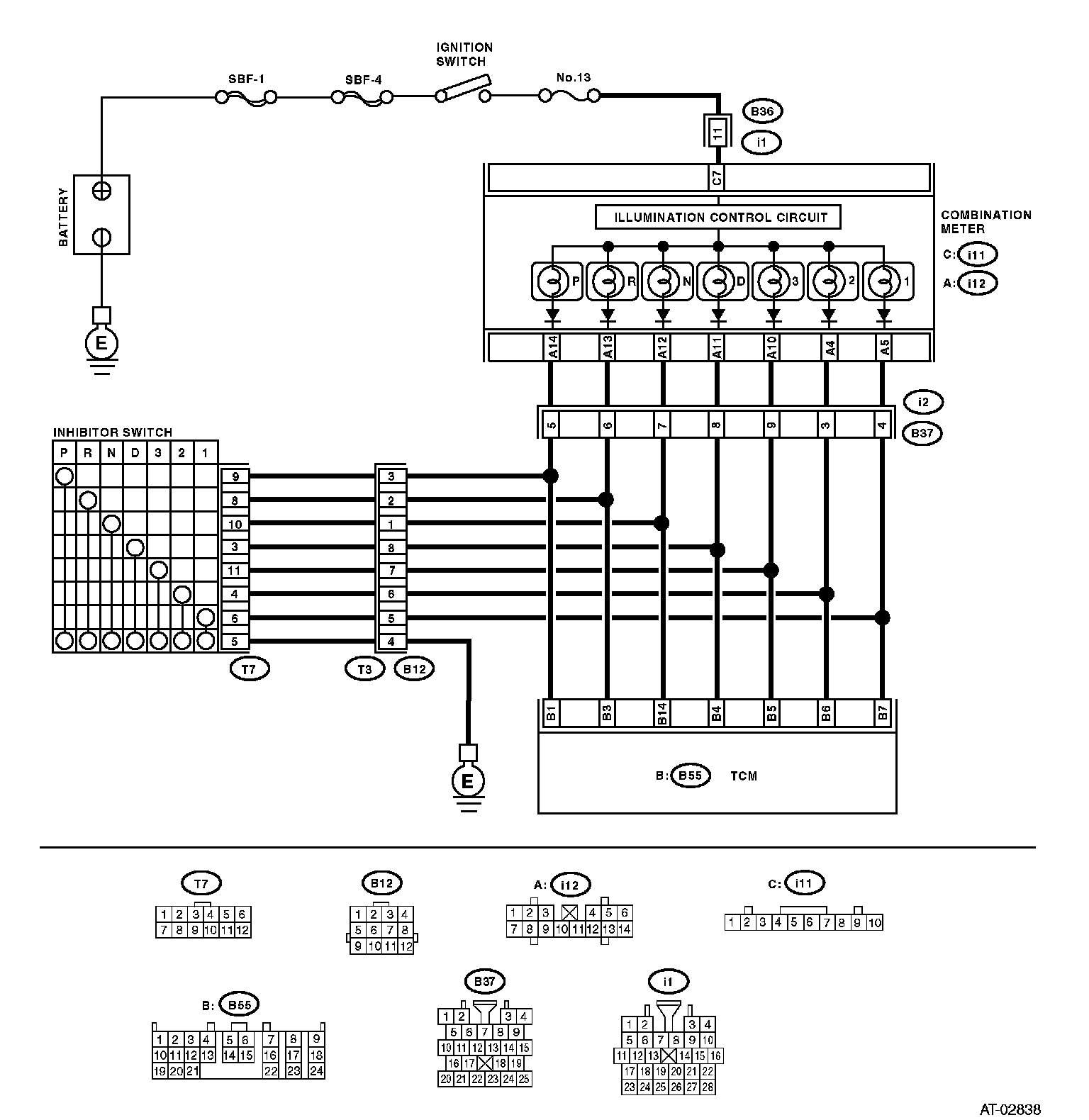

WIRING DIAGRAM
