Crankshaft Gear/Sprocket: Service and Repair

REMOVAL
1. Remove the V-belts.
2. Remove the crank pulley.
3. Remove the timing belt cover.
4. Remove the timing belt.
5. Remove the cam sprocket.





6. Remove the crank sprocket.

INSTALLATION





1. Install the crank sprocket.
2. Install the cam sprocket.
3. Install the timing belt.
4. Install the timing belt cover.
5. Install the crank pulley.
6. Install the V-belts.

INSPECTION
1. Check the crank sprocket teeth for abnormal wear and scratches.
2. Make sure there is no free play between crank sprocket and key.

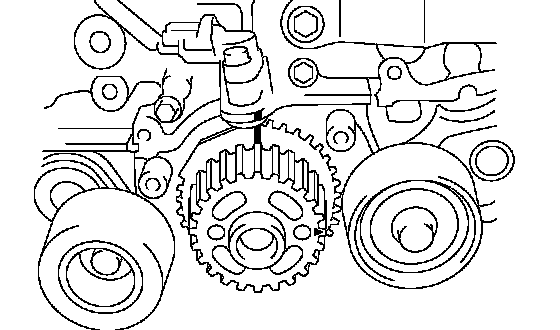

3. Check the crank sprocket protrusion used for sensor for damage and contamination of foreign matter.
