Fuel Tank Pressure Sensor

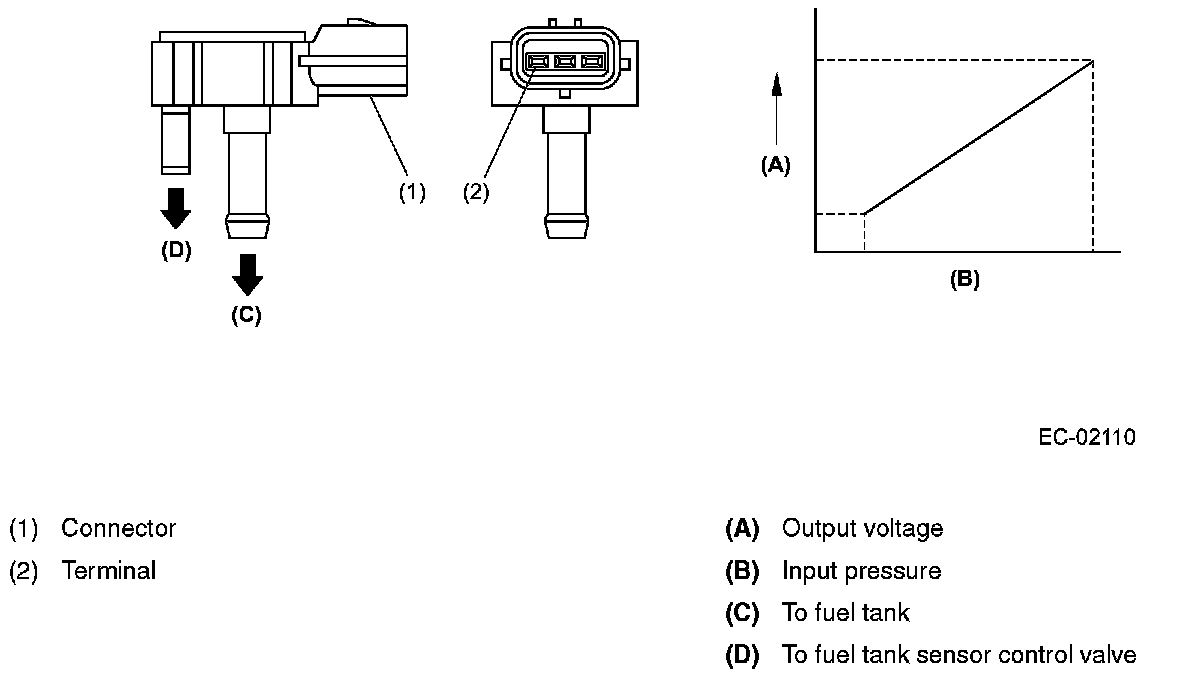

FUEL TANK PRESSURE SENSORThe
fuel tank pressure sensor is installed on the top of the
fuel tank and measures the pressure in the fuel tank.
The measured pressure is converted into an electrical signal and sent to the ECM for diagnosis of the evaporative emission control system.
