2.5L SOHC
PCV ValveREMOVAL 1.

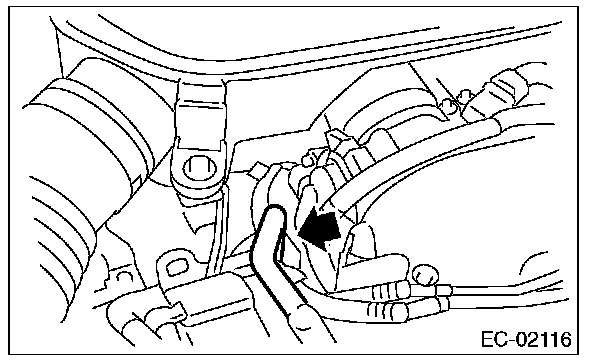

Disconnect the
PCV hose.
2.
Remove the PCV valve from cylinder block.
INSTALLATIONInstall in the reverse order of removal.
NOTE: Apply liquid gasket to the bolt threads of PCV valve.
Liquid gasket: THREE BOND 1105 (Part No. 004403010)
Tightening torque:
23 N.m (2.3 kgf-m, 17 ft-lb)
