Antenna: Service and Repair
AntennaREPAIR 1.
Clean the antenna wire and surrounding area with a cloth dampened by alcohol.
2.

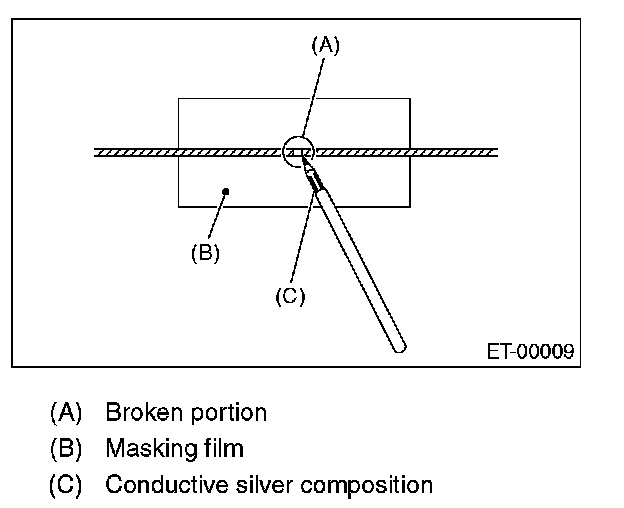

Paste a thin masking film on the glass along broken wire.
3.
Apply conductive silver composition (DUPONT No. 4817. on the broken portion with a drawing pen.
4.
Dry out the deposited portion.
5.
After repair has been completed, measure the resistance in repaired wire.
