Cowl Moulding / Trim: Service and Repair

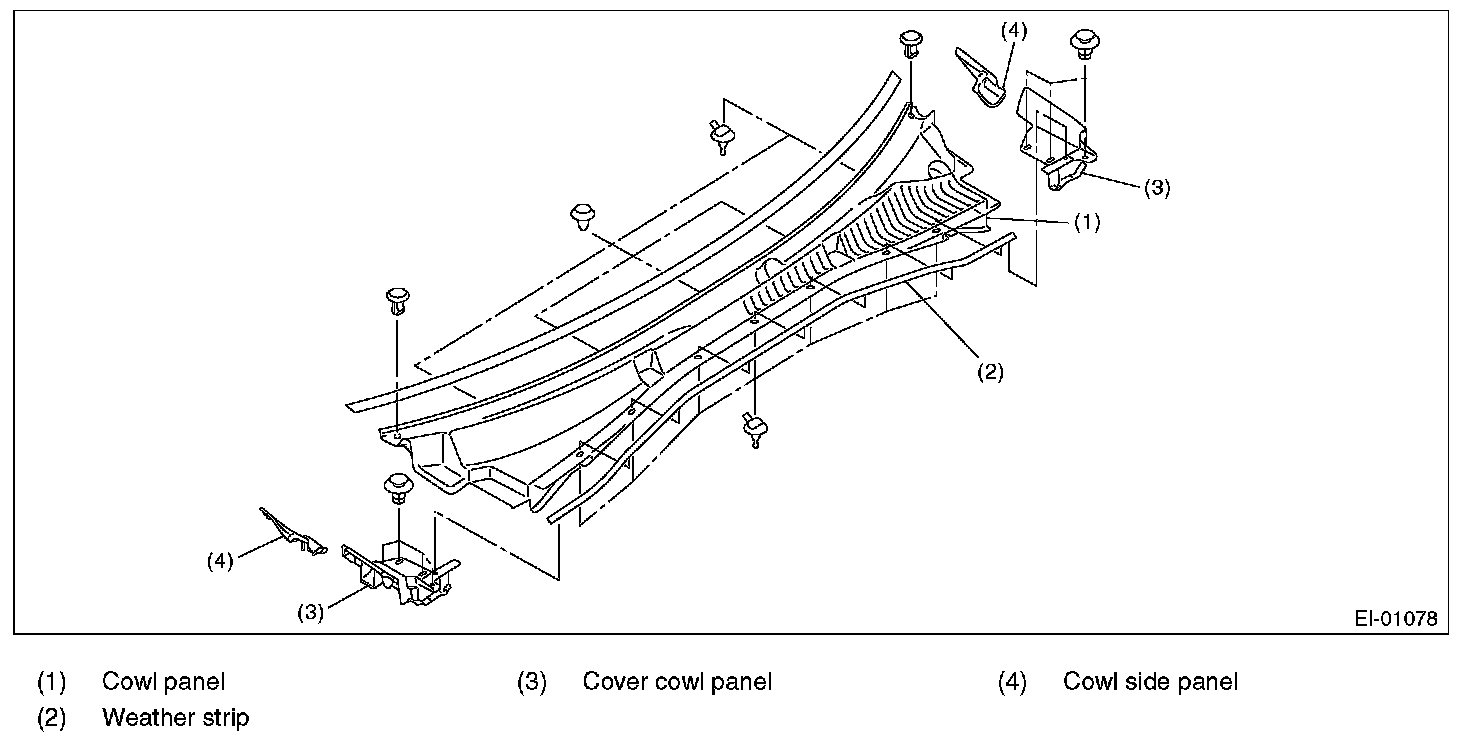

COWL PANEL

REMOVAL

1. Open the hood.
2. Remove the wiper arm.
3. Remove the weather strip clip, and remove the weatherstrip.

NOTE: If the weather strip clip is removed with excessive force, the weather strip may be damaged. Be sure to use a clip remover to remove.

4. Remove the clip, and remove the cover cowl panel.

5. Remove the cowl panel side and clip (A).

6. Remove the clips (A), and remove the cowl panel.

INSTALLATION

Install in the reverse order of removal.
