Parking Brake Cable: Service and Repair
REMOVAL1. Remove the rear seat cushion.
2. Remove the console box.
3. Remove the parking cable adjusting nut (self-locking nut).
4. Remove the parking brake lever.

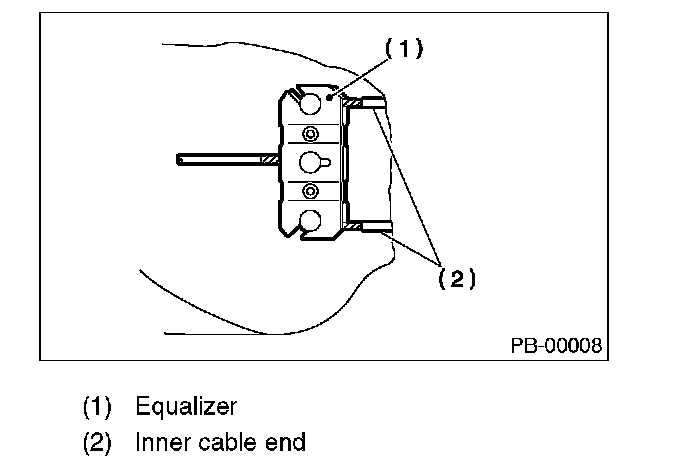

5. Roll up the floor mat and remove the clamps.
6. Remove the inner cable end from equalizer.
7. Lift-up the vehicle, and then remove the rear wheels.
8. Remove the parking brake cable from rear brake.
9. Remove the clamp from rear brake.
10. Remove the cable clamp from rear arm bracket.

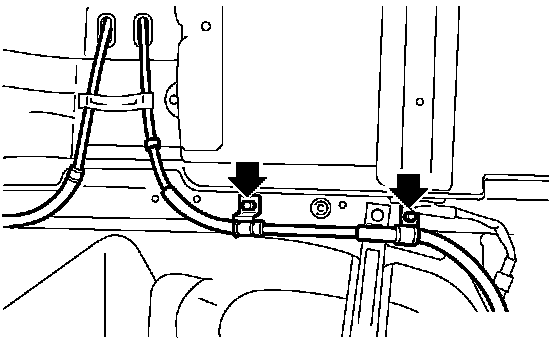

11. Remove the cable clamp from rear floor.
12. Remove the cable assembly.
INSTALLATION
1. Install in the reverse order of removal.
NOTE: Be sure to pass the cable through the cable guide inside tunnel.
2. Adjust the lever stroke.
