Heater Vent Duct
Heater Vent DuctREMOVAL 1.
Remove the instrument panel.
2.

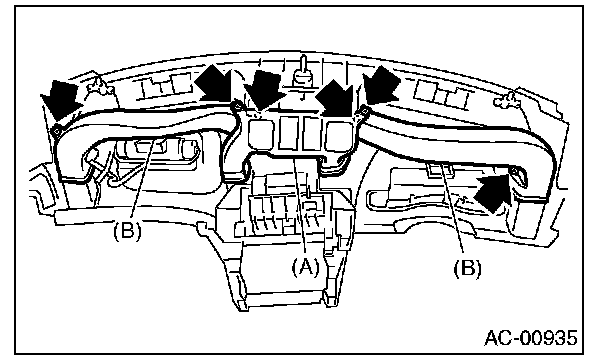

Remove the screws and detach the center vent duct (A).
3.
Remove the screws and detach the center vent ducts (B).
4.
Remove the insulator, remove the screws and detach the defroster duct.
INSTALLATIONInstall in the reverse order of removal.
