Purge Control Solenoid Valve

PURGE CONTROL SOLENOID VALVE

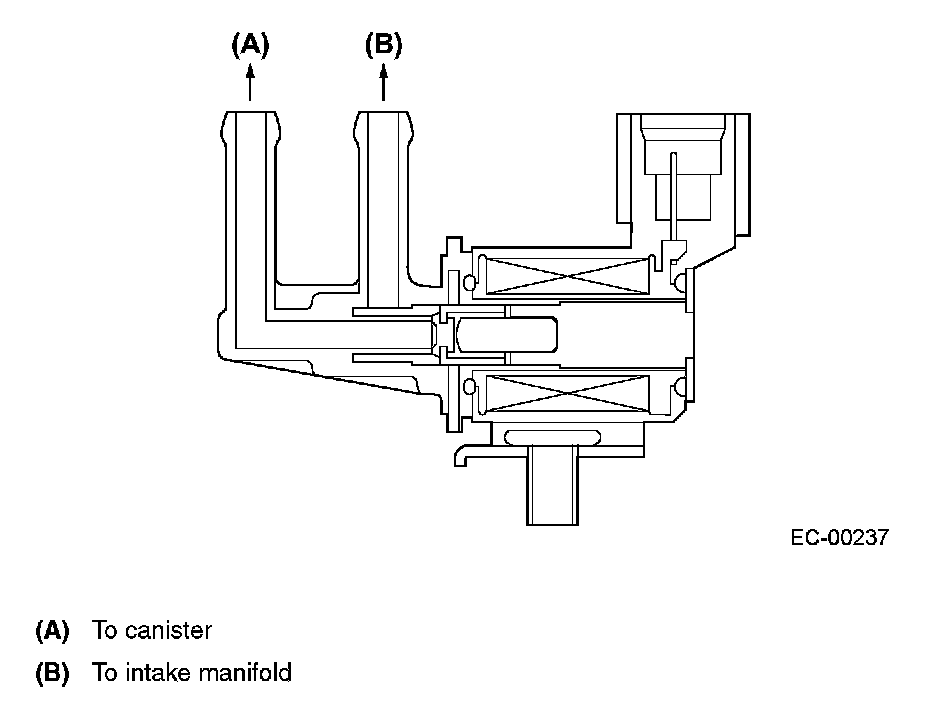

The purge control solenoid valve is on the evaporation line between the canister and intake manifold. It is installed at the underside of intake manifold.
