Evaporative Shut Valve: Service and Repair

Shut Valve

REMOVAL
1. Remove the fuel filler pipe.

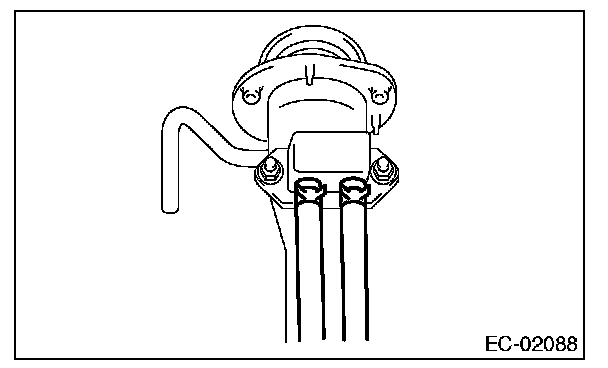

2. Disconnect the evaporation hoses from shut valve.

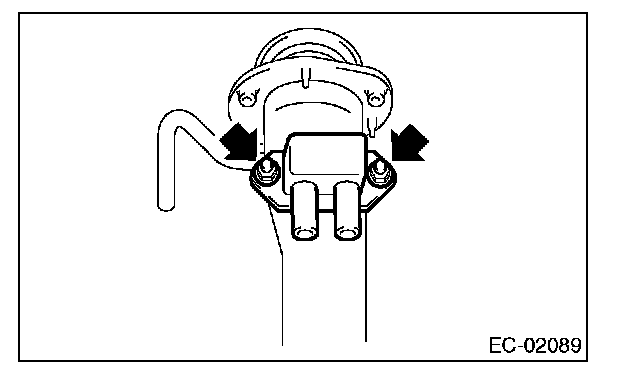

3. Remove the shut valve from fuel filler pipe.

INSTALLATION

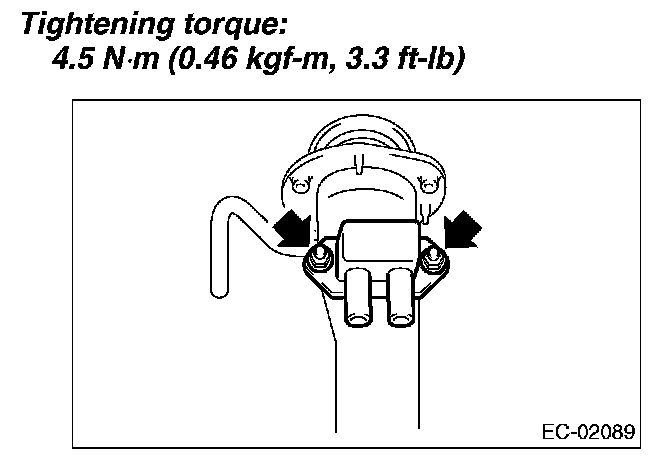

Install in the reverse order of removal.
