Antitheft Relay: Testing and Inspection

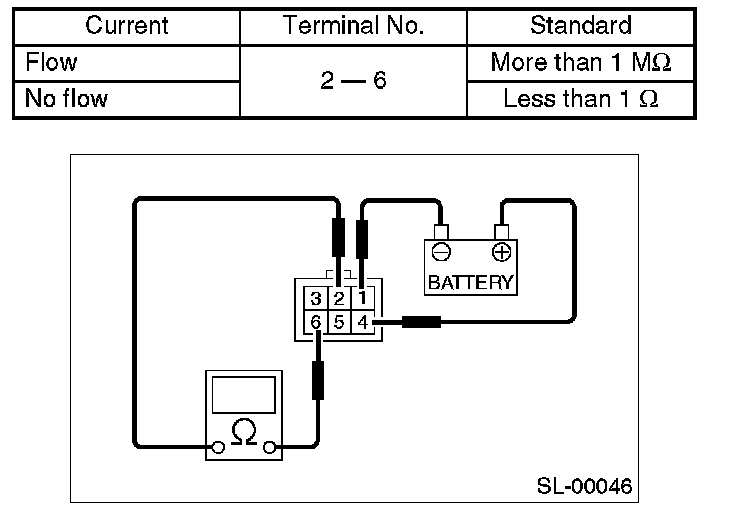

INSPECTIONMeasure the interrupt relay resistance between terminals (indicated in the table) when connecting terminal No.1 to battery positive terminal and terminal No.4 to battery ground terminal.
If the measured value is out of specifications indicated in table, replace security horn relay.
