Repair and Diagnosis: Application and ID

IDENTIFICATION







1. IDENTIFICATION NUMBER AND LABEL LOCATIONS
The VIN (Vehicle Identification Numbers) is used to classify the vehicle.

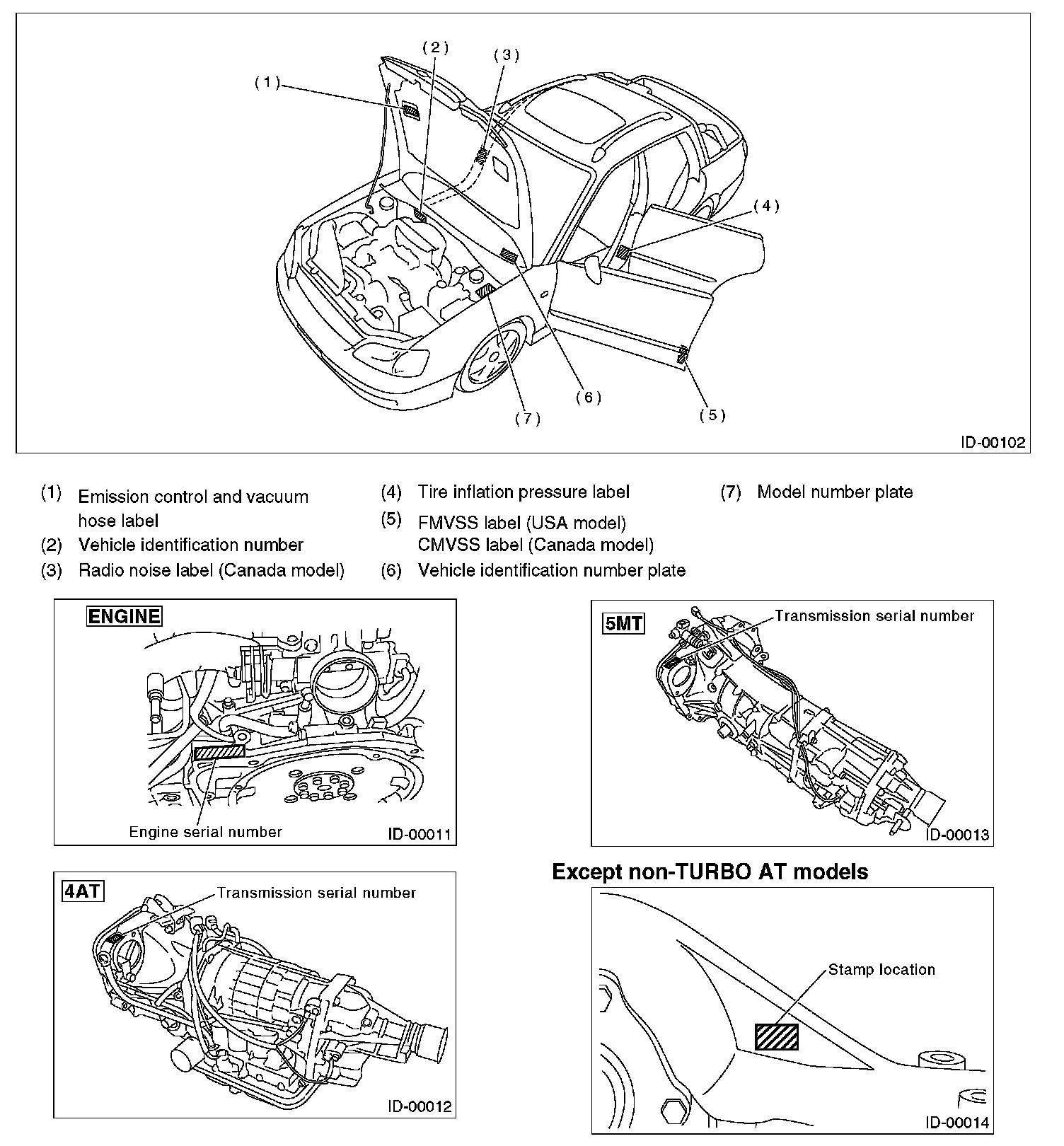

Positioning of the plate label for identification

2. MEANING OF VIN
The meaning of the VIN is as follows:

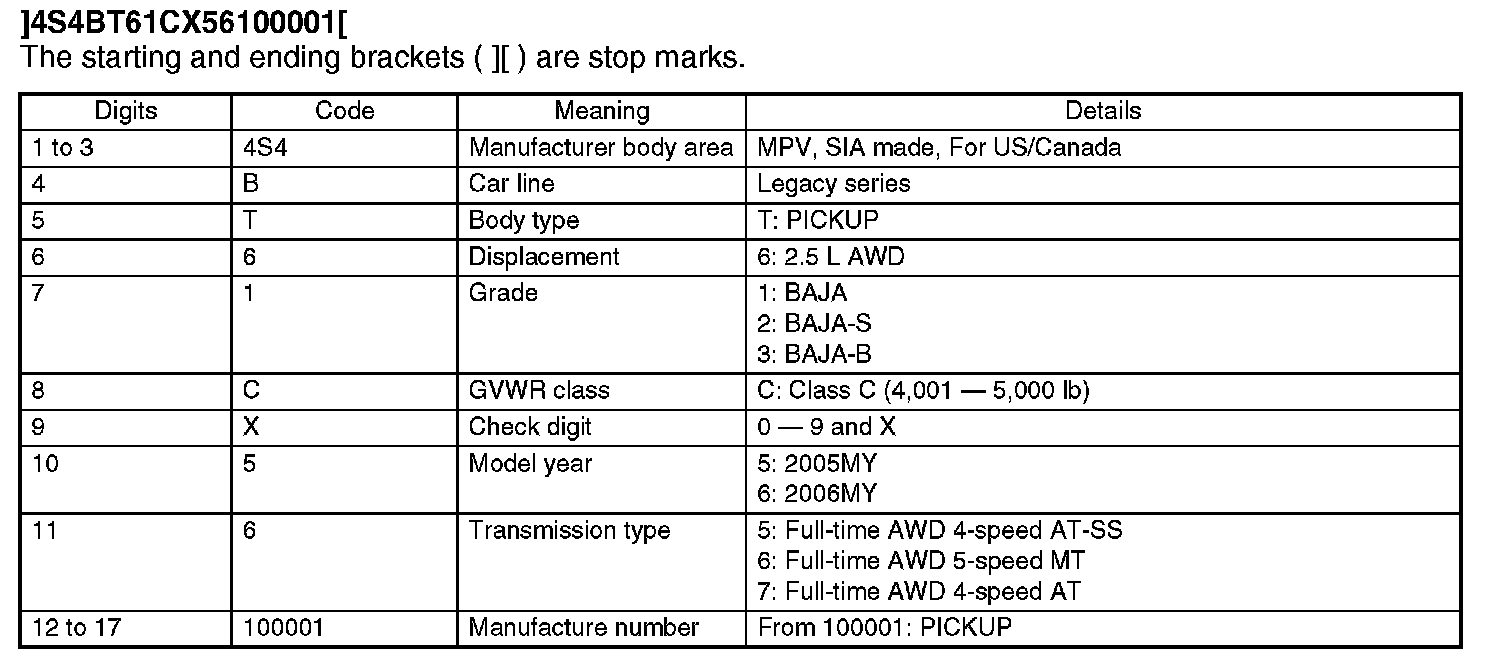

]4S4BT61CX56100001[:

- PICKUP

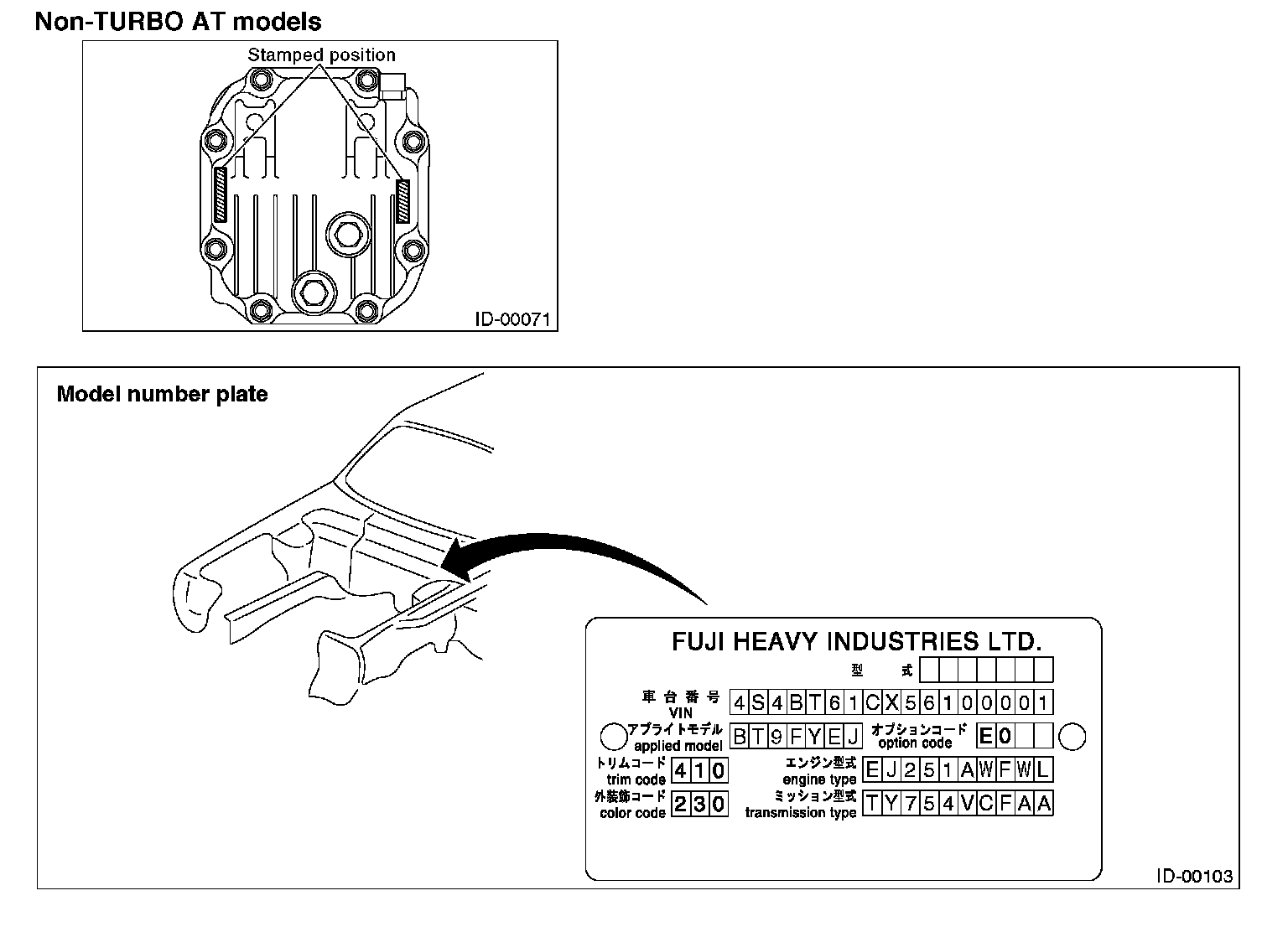

3. MODEL NUMBER PLATE

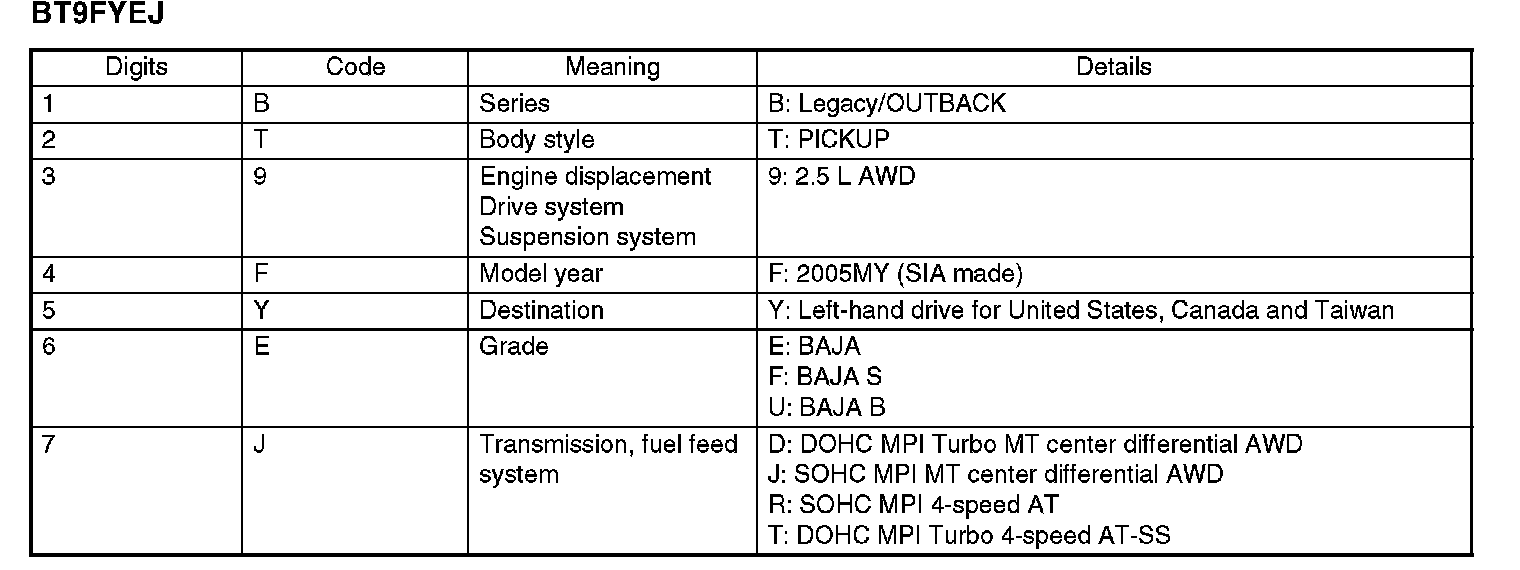

BT9FYEJ:

The model number plate indicates: the applied model, the option code, the trim code, the engine type, the transmission type, and the exterior color code. This information is helpful when placing orders for parts.

The engine and transmission type are as follows:

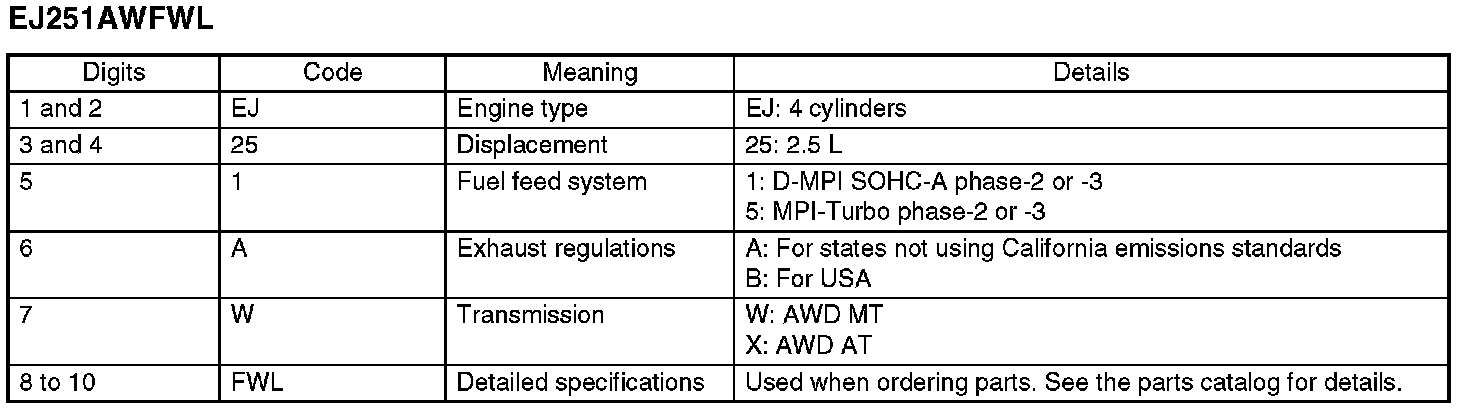

EJ251AWFWL:

- Engine

TY754VCFAA:

- Transmission

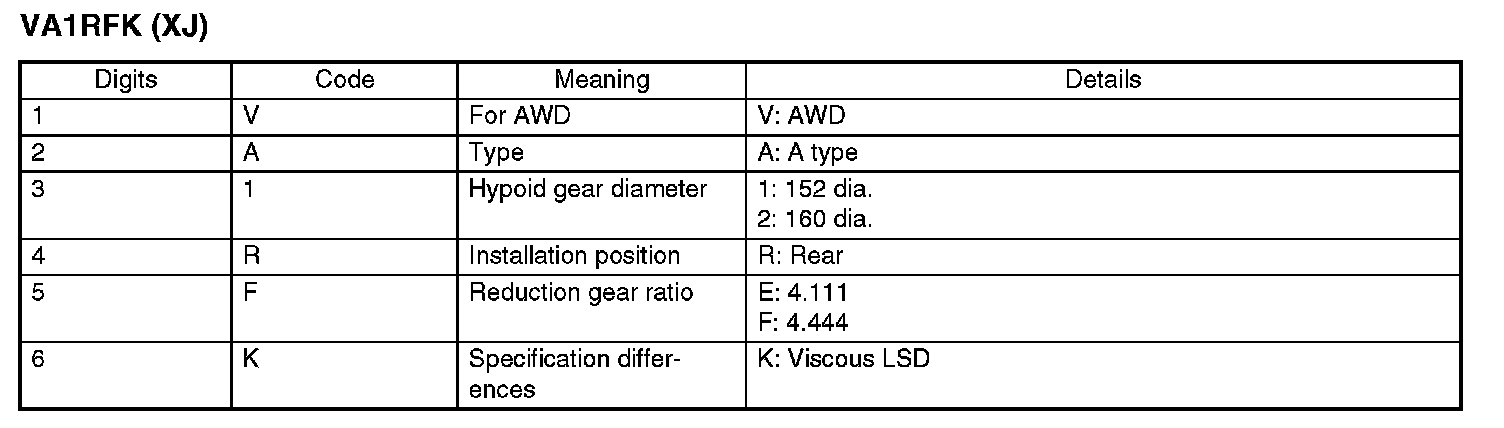

VA1RFK (XJ):

- Rear differential 1

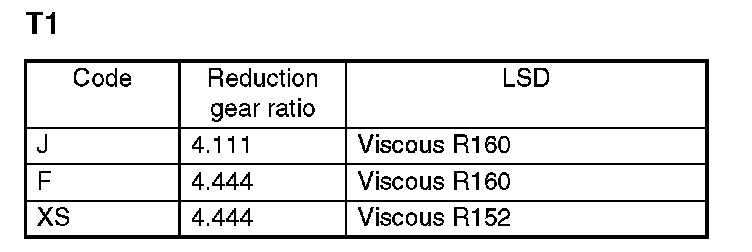

T1:

- Rear differential 2
