Cruise Control Main Switch

Cruise Control Main Switch

REMOVAL
1. Disconnect ground cable from battery.

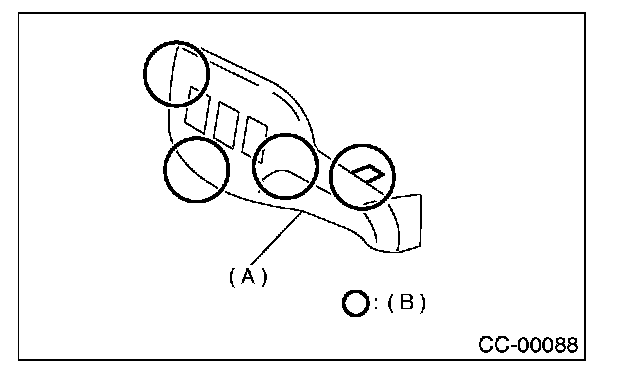

2. Remove hook (B) and then remove switch panel (A) while disconnecting connector.

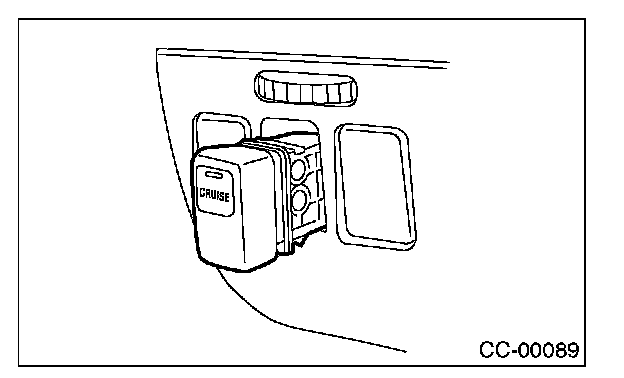

3. Remove main switch by pushing it outward.

INSTALLATION
Install is in the reverse order of removal.
