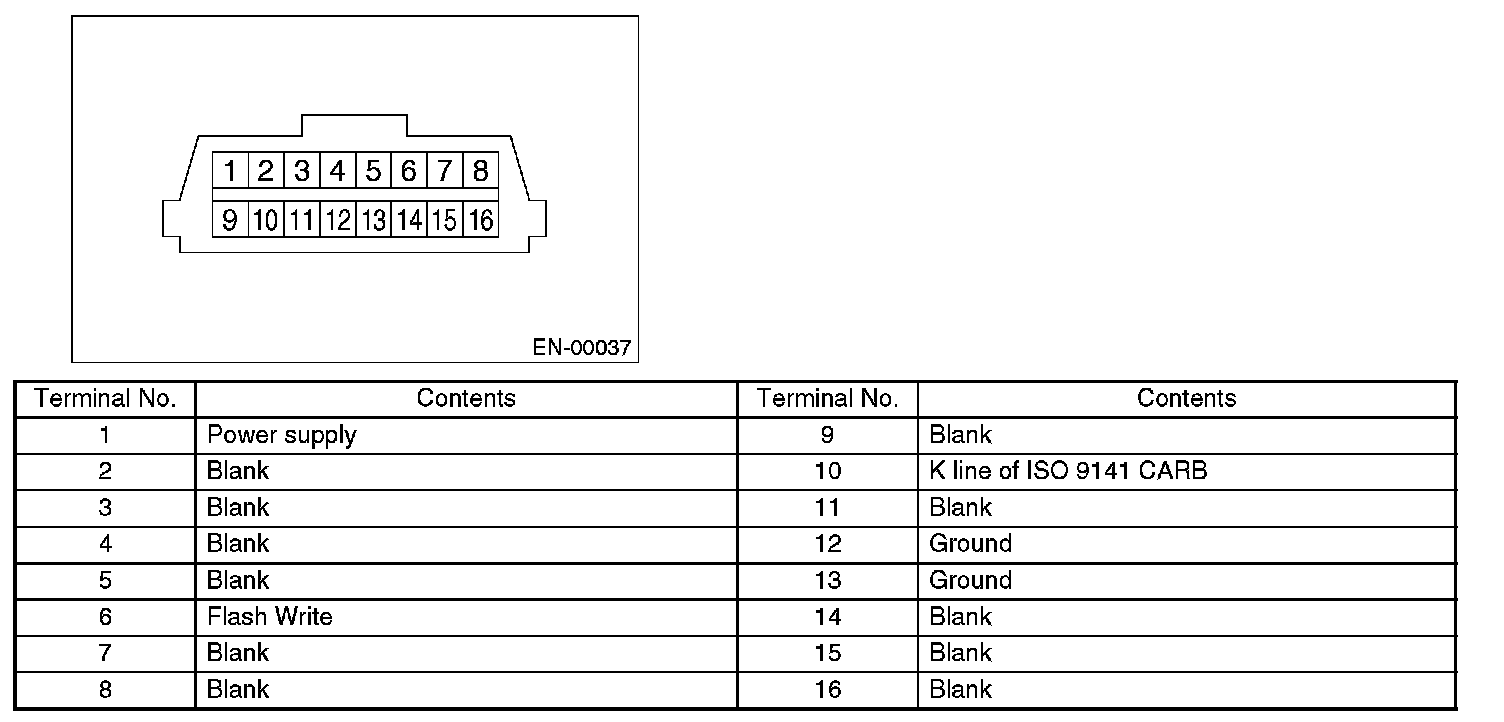

Data Link Connector
Data Link ConnectorNOTE: 1.
This connector is used both for general scan tools and the Subaru Select Monitor.
2.
Terminal No. 4 to No. 6 of the data link connector is used for the Subaru Select Monitor signal.
CAUTION: Do not connect any scan tools other than the general scan tools and the Subaru Select Monitor, because the circuit for the Subaru Select Monitor may be damaged.
