Compressor HVAC: Testing and Inspection

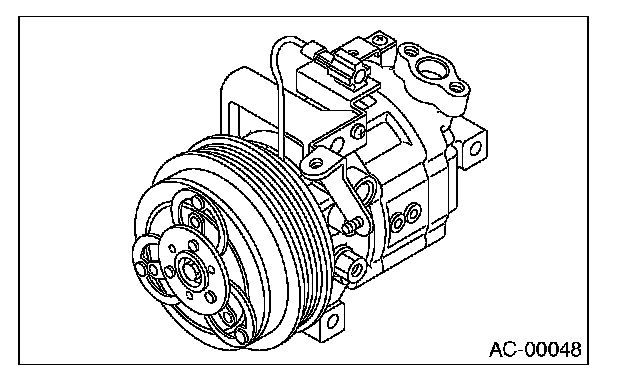

CompressorINSPECTION
1. MAGNETIC CLUTCH CLEARANCE
1. Check the clearance of the entire circumference around the drive plate and pulley.
Standard: 0.45 ±0.15 mm (0.0177 ±0.0059 in)
2. MAGNETIC CLUTCH OPERATION
1. Disconnect the compressor connector.
2. Connect the No.3 terminal of the compressor connector from the battery to the positive (+) lead. Ground the negative (-) lead to the body.
3. Make sure the magnet clutch engages.
If NG, replace the compressor.
