Fluid Filter - A/T: Service and Repair
ATF FilterREMOVAL
NOTE: The ATF filter is maintenance free.
1. Lift-up the vehicle.

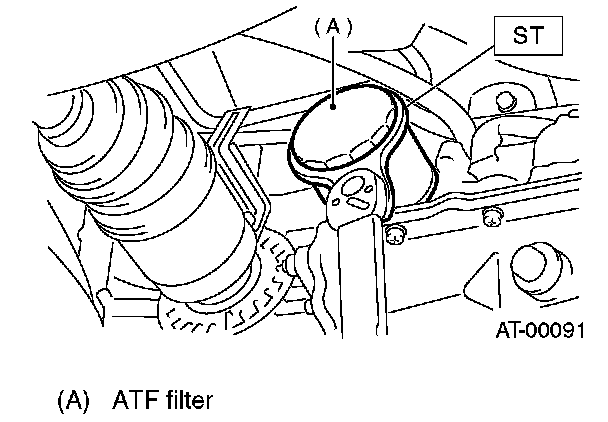

2. Using ST, remove ATF filter.
ST 498545400 OIL FILTER WRENCH
INSTALLATION
1. Get new ATF filter and apply a thin coat of ATF to the oil seal.
2. Install ATF filter. Turn it by hand, being careful not to damage oil seal.
3. Using ST, tighten ATF filter to transmission case.
Calculate ATF filter torque specifications using the following formula.
T2 = L2/(L1 + L2) x T1
T1: 14 Nm (1.4 kgf-cm, 10.1 ft. lbs.)
[Required torque setting]
T2: Tightening torque
L1: ST length 0.078 m (3.07 inch)
L2: Torque wrench length

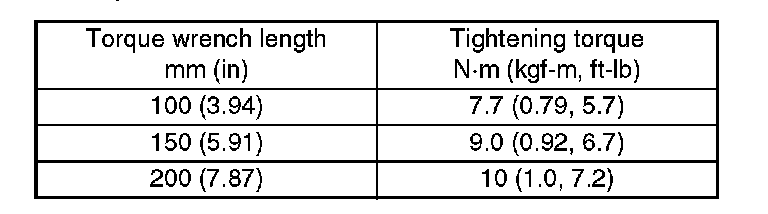

Example:
NOTE: Align ST with torque wrench while tightening ATF filter.
ST 498545400 OIL FILTER WRENCH
4. Add ATF.
5. Inspect level of ATF.
INSPECTION
Replace the part if any defect is found from the inspection.
Check for rust, hole, ATF leaks, and other damage.
