Fuel Filter: Service and Repair

Fuel Filter

REMOVAL

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel.

NOTE: The fuel filter is built in fuel pump assembly.

1. Release the fuel pressure.
2. Remove the fuel pump assembly.

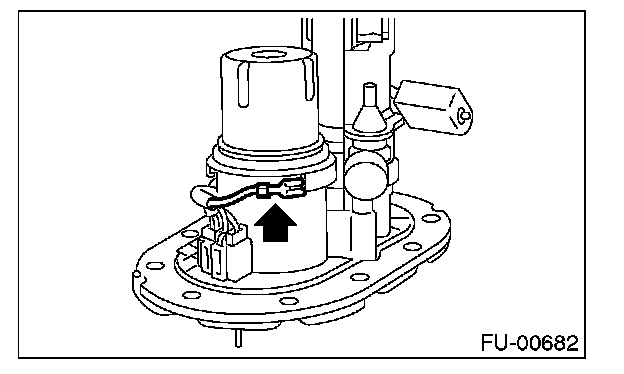

3. Disconnect the ground cable from filter holder.

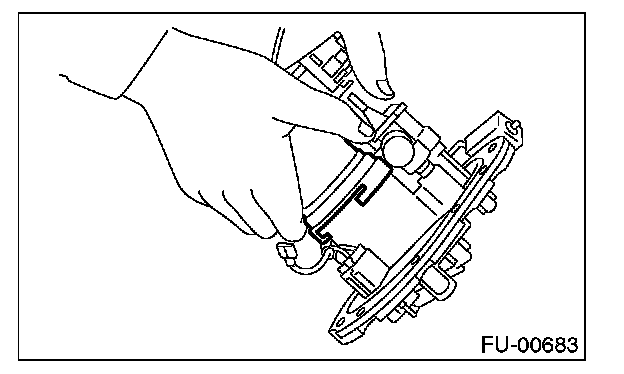

4. Remove the filter holder by turning it to the left from the body pawls, and then take out the filter.

INSTALLATION

NOTE:
- If the fuel hoses are damaged at the connecting portion, replace it with a new one.
- If the clamps are badly damaged, replace with new ones.
- Replace the O-ring with new ones.




1. Set the O-ring on the filter holder, and then install by turning to the right.




2. Connect the ground cable to filter holder.
3. Install the fuel pump assembly.
