Air Temperature Sensor ( Ambient / Intake ): Service and Repair
Intake Air Temperature SensorREMOVAL 1.

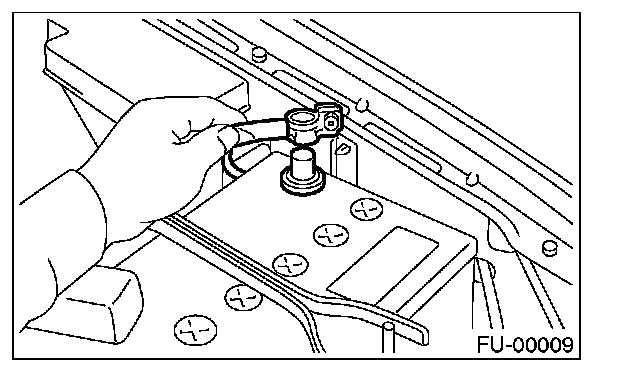

Disconnect ground cable from battery.
2.

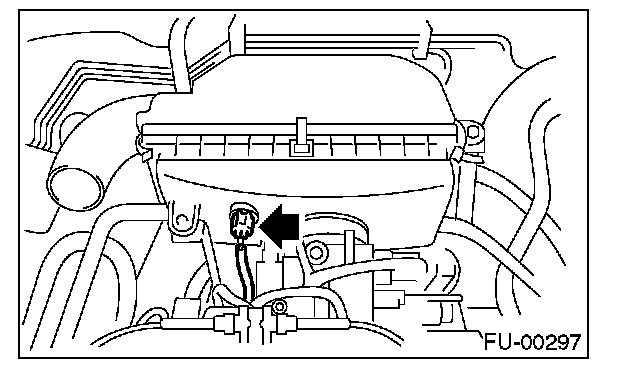

Disconnect the connector from the intake air temperature sensor.
3.
Remove the intake air temperature sensor from air cleaner case.
INSTALLATIONInstall in the reverse order of removal.
