Fuel Pressure Sensor/Switch: Service and Repair
Pressure SensorREMOVAL 1.

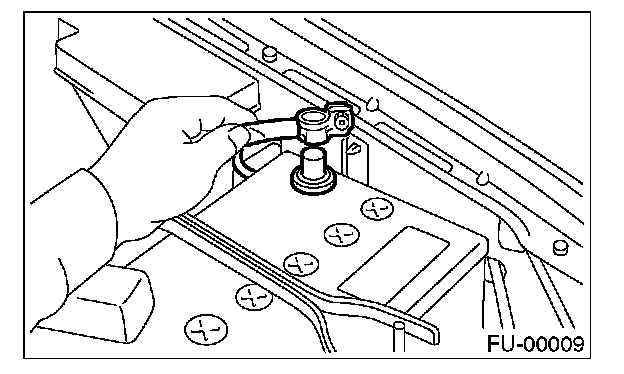

Disconnect ground cable from battery.
2.

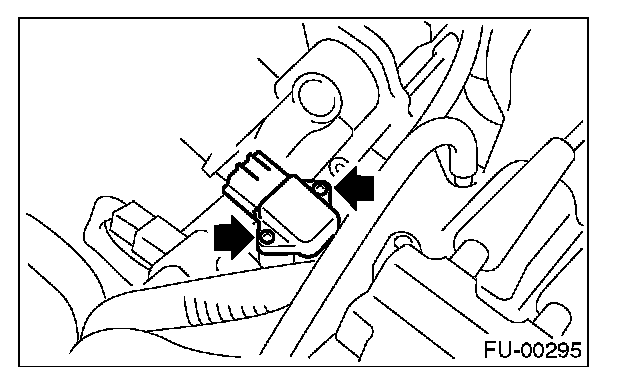

Disconnect connector from pressure sensor.
3.

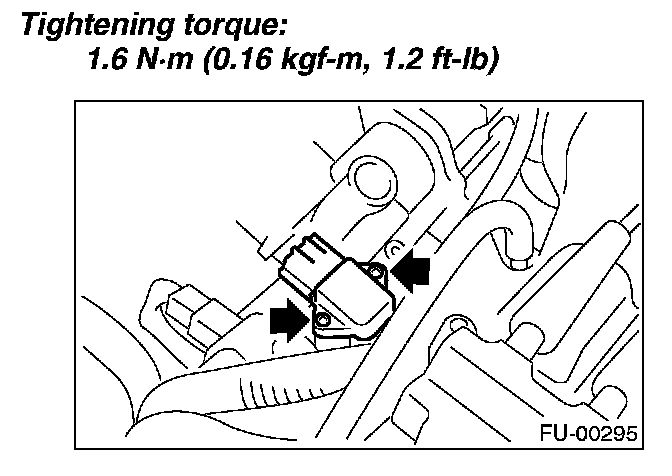

Remove pressure sensor from throttle body.
INSTALLATIONInstall in the reverse order of removal.
NOTE: Replace O-ring with a new one.
