Removal and Installation

Ignition System:

Spark Plug

REMOVAL

CAUTION: All spark plugs installed on an engine, must be of the same heat range.




Spark Plug

RH SIDE

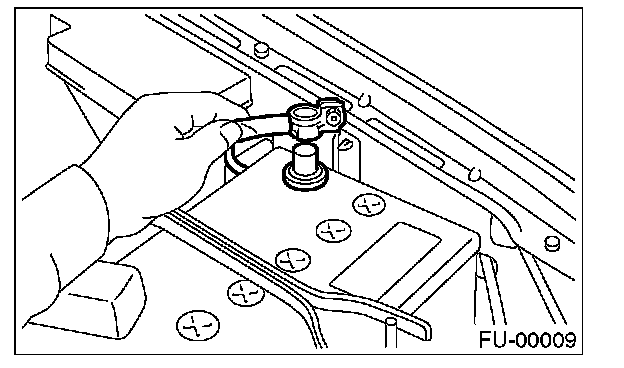

1. Disconnect ground cable from battery.




2. Remove spark plug cords by pulling boot, not cord itself.

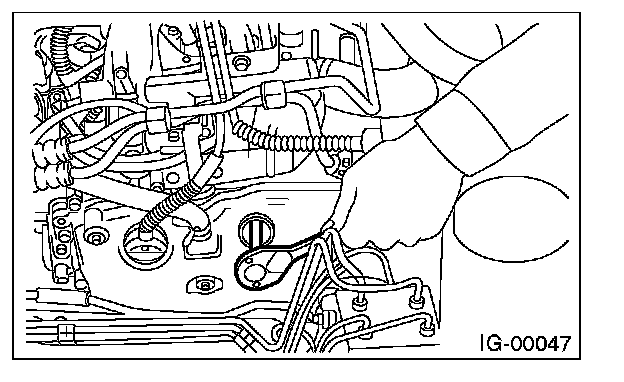

3. Remove spark plugs with the spark plug socket.

LH SIDE

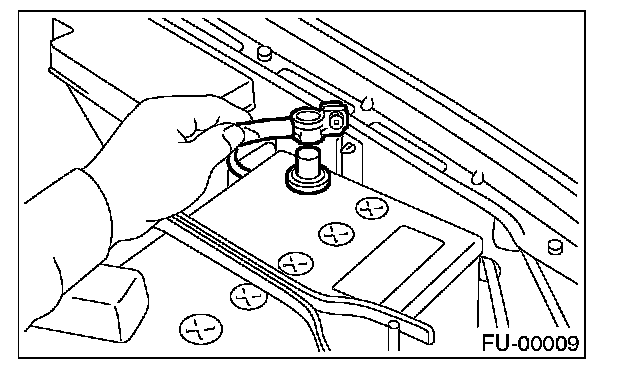

1. Disconnect battery ground cable.

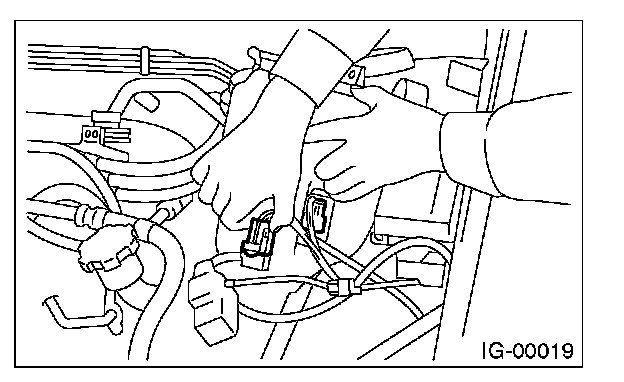

2. Disconnect washer motor connector.
3. Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.

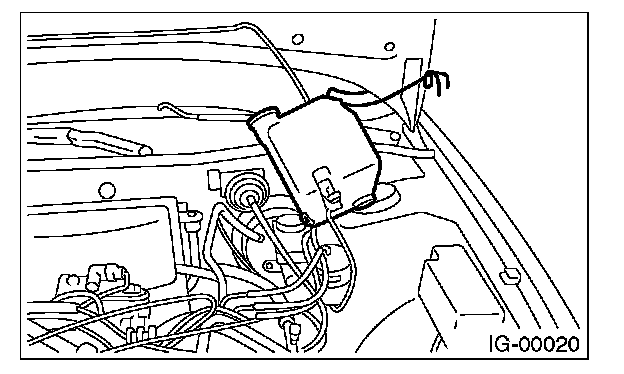

4. Remove the two bolts which hold the washer tank, then take the tank away from the working area.

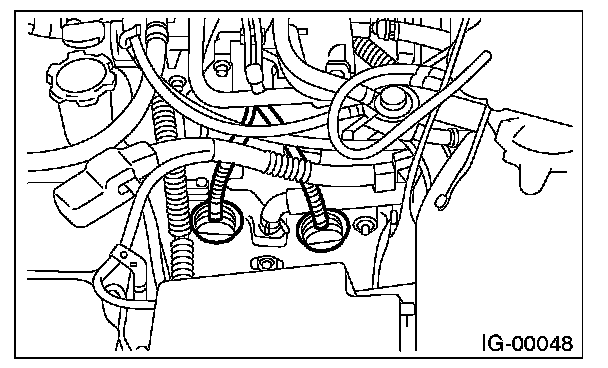

5. Remove spark plugs cord by pulling boot, not cord itself.

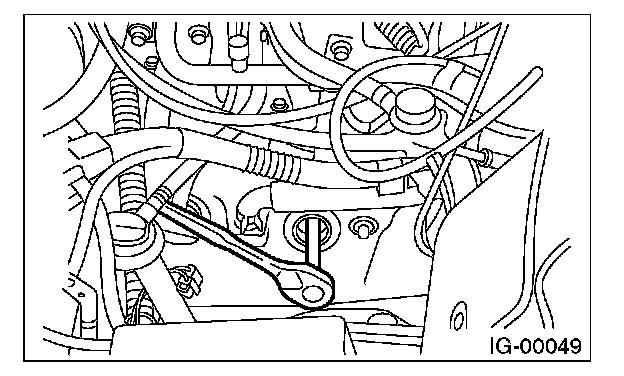

6. Remove spark plug with the spark plugs socket.

INSTALLATION

RH SIDE

1. Install in the reverse order of removal.

Tightening torque (Spark plug): 21 N.m (2.1 kgf.m, 15 ft.lb)

CAUTION: The above torque should be only applied to new spark plugs without oil on their threads. In case their threads are lubricated, the torque should be reduced by approximately 1/3 of the specified torque in order to avoid over-stressing.

Tightening torque (Air cleaner case): 33 N.m (3.4 kgf.m, 24.6 ft.lb)

LH SIDE

1. Install in the reverse order of removal.

Tightening torque (Spark plug): 21 N.m (2.1 kgf.m, 15 ft.lb)

CAUTION: The above torque should be only applied to new spark plugs without oil on their threads. In case their threads are lubricated, the torque should be reduced by approximately 1/3 of the specified torque in order to avoid over-stressing.
