Dropping Resistor Testing
Dropping ResistorREMOVAL NOTE: Dropping resistor is installed only for NON-
TURBO model.
1.

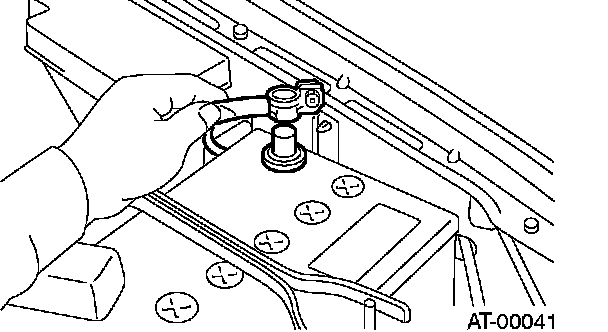

Disconnect the ground cable from battery.
2.
Remove the air intake duct.
3.

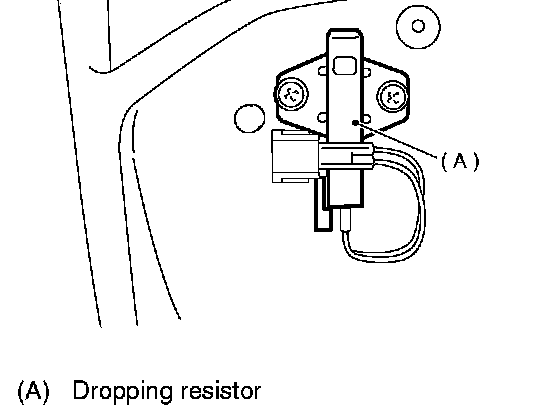

Disconnect the connector from dropping resistor.
4.

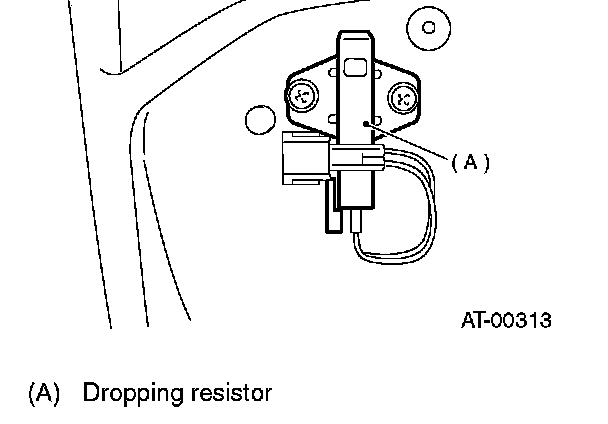

Remove the dropping resistor.
INSTALLATION Install in the reverse order of removal.
Tightening torque:

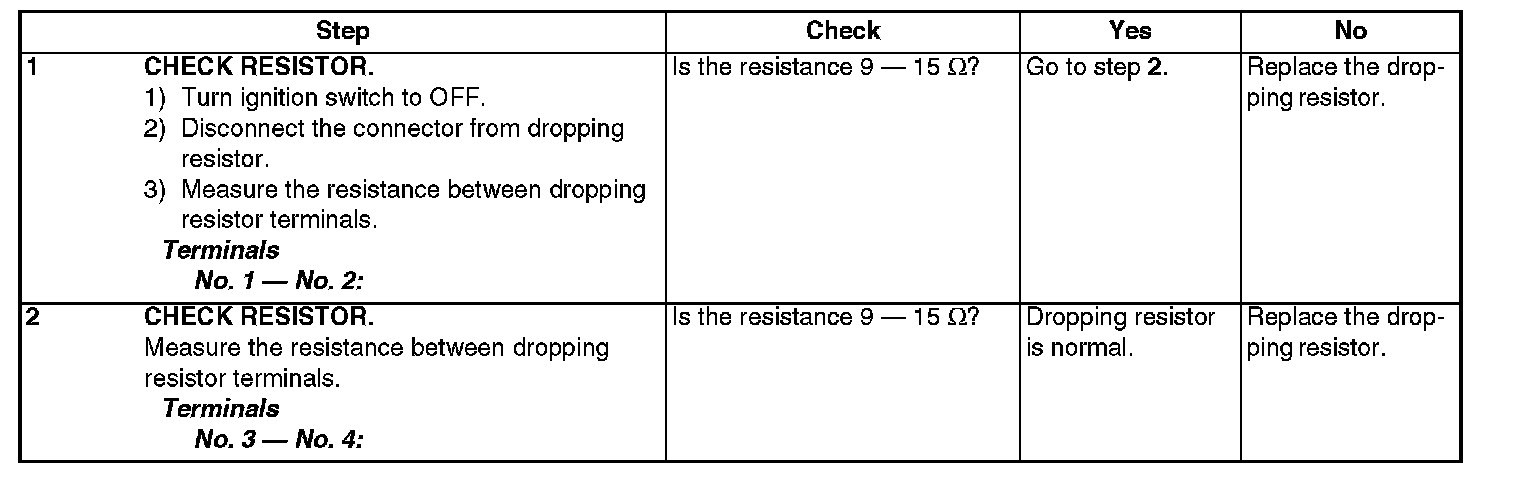

13 Nm (1.3 kgf-cm, 10 ft. lbs.)INSPECTION
