Rear Vehicle Speed Sensor
Rear Vehicle Speed SensorREMOVAL
NON-TURBO MODEL
When removing the rear vehicle speed sensor, refer to Front Vehicle Speed Sensor.
TURBO MODEL
1. Set vehicle on a lift.
2. Disconnect ground cable from battery.
3. Lift up the vehicle.

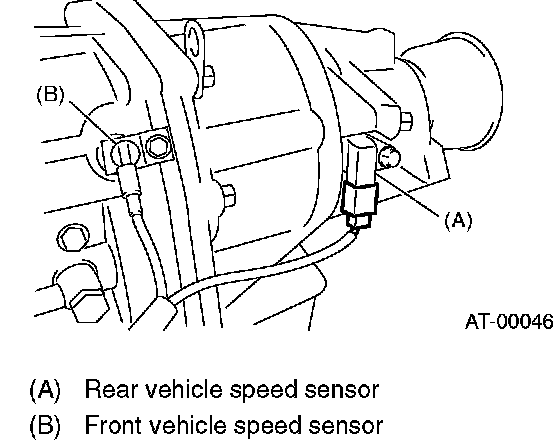

4. Disconnect rear vehicle speed sensor connector.

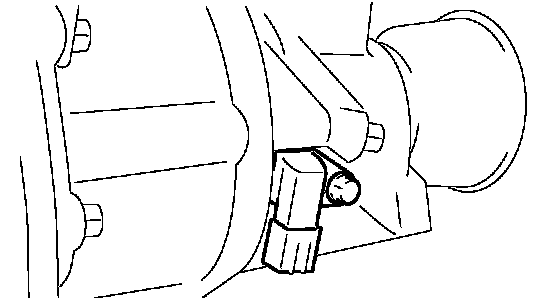

5. Remove rear vehicle speed sensor.
INSTALLATION
NON-TURBO MODEL
When installing the rear vehicle speed sensor, refer to Front Vehicle Speed Sensor.
TURBO MODEL
Install in the reverse order of removal.
NOTE: Replace O-ring with a new one.
Tightening torque: 7 Nm (0.7 kgf-cm, 5.1 ft. lbs.)
