Power Window Switch: Testing and Inspection

INSPECTION

1. MAIN SWITCH
Measure switch resistance.

Driver's Switch:

Driver's switch:

Front Passenger's Switch:

Front passenger's switch:

Rear Left Switch:

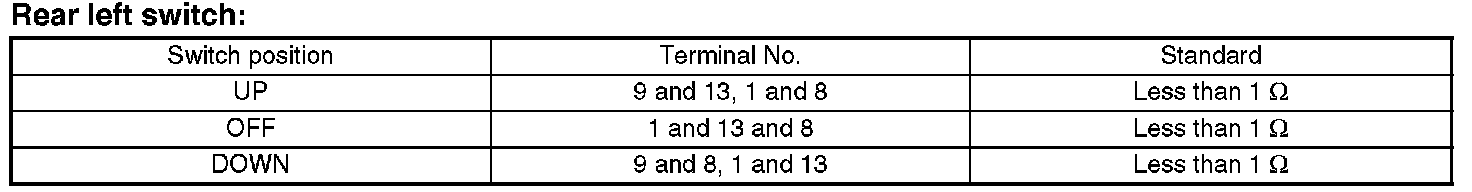

Rear left switch:

Rear Right Switch:

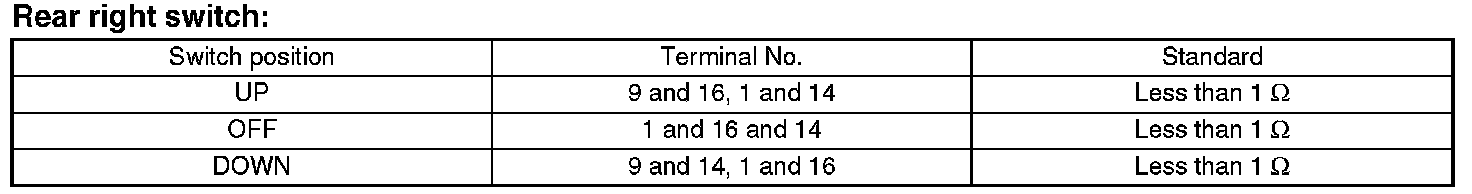

Rear right switch:
If defective, replace the main switch.

2. SUB-SWITCH
Measure switch resistance.

Front Passenger's Door Switch And Rear Door Switch:

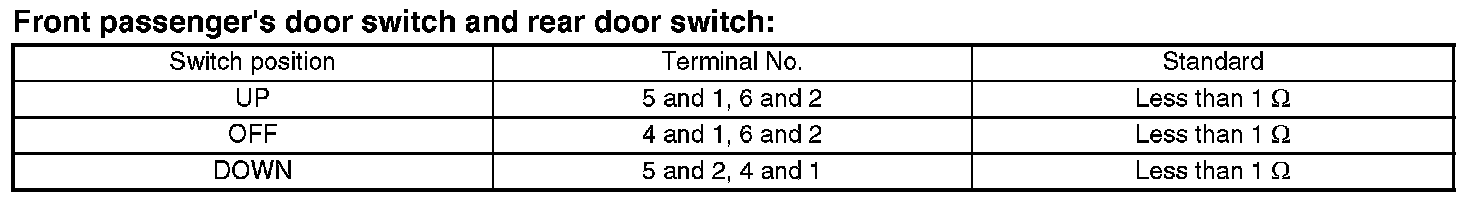

Front Passenger's Door Switch and Rear Door Switch
If defective, replace the sub-switch.
